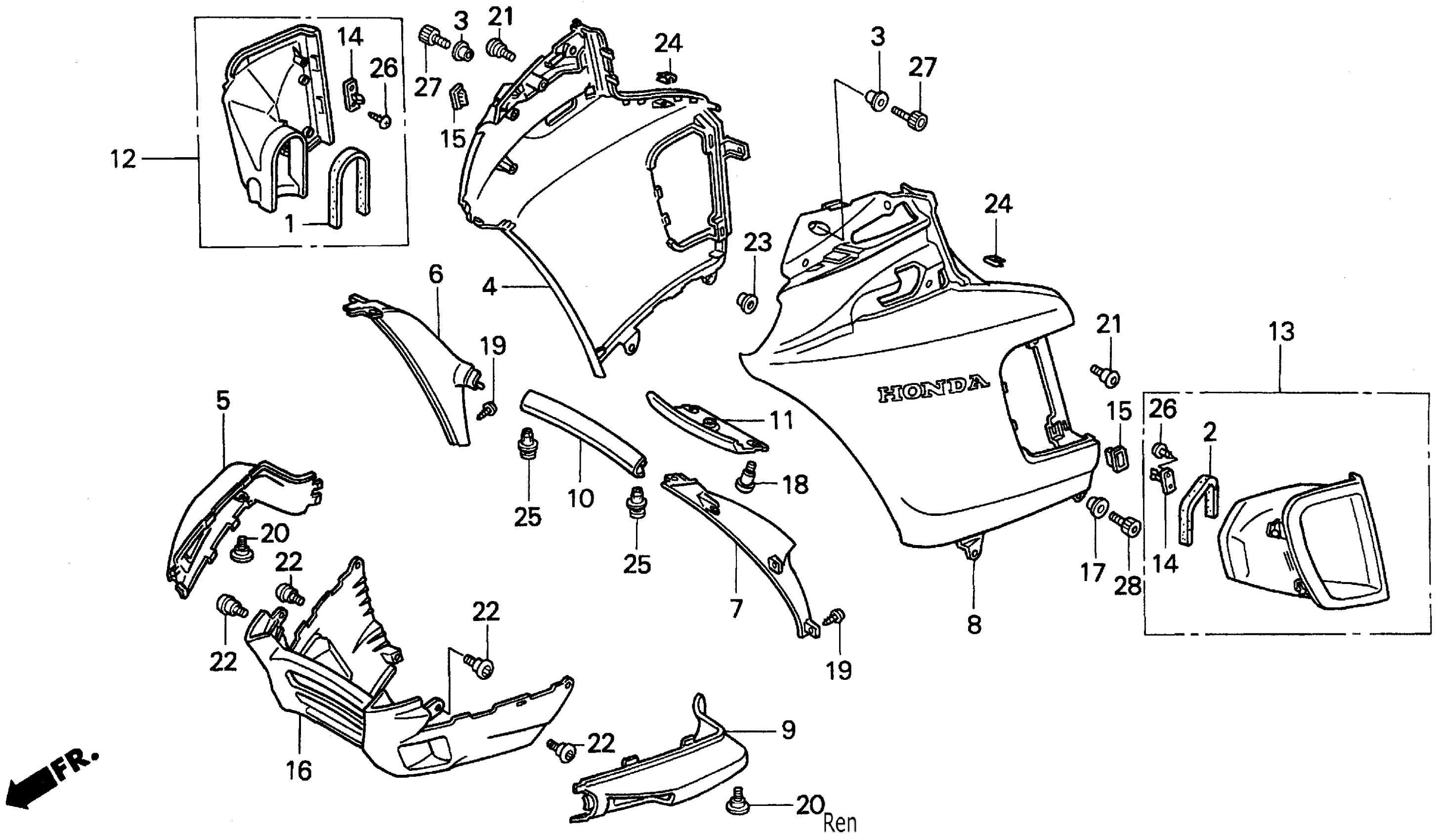

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 FAIRING Diagram

RUBBER, R. AIR DUCT

19023-MR5-300

Unavailable

RUBBER, L. AIR DUCT

19024-MR5-300

Unavailable

COLLAR, FR. FENDER

61105-KM7-910

$3.10

COWL SET, R. FR. (UPPER) (TYPE6) (WL)

64204-MR5-A20ZA

Unavailable

PROTECTOR, R. FAIRING *NH340R* (OSTRICH BLACK)

64205-MR5-A30ZA

Unavailable

PANEL, R. (INNER) *NH1* (BLACK)

64211-MR5-A30ZA

Unavailable

PANEL, L. (INNER) *NH1* (BLACK)

64212-MR5-A30ZA

Unavailable

COWL SET, L. FR. (UPPER) (TYPE6) (WL)

64214-MR5-A20ZA

Unavailable

PROTECTOR, L. FAIRING *NH340R* (OSTRICH BLACK)

64215-MR5-A30ZA

Unavailable

PANEL, FR. CENTER *NH1Z* (BLACK-Z)

64217-MR5-000ZE

Unavailable

PANEL, FR. CENTER *NH1Z* (BLACK-Z) This part replaces 64217-MR5-A30ZA.

64217-MR5-000ZE

Unavailable

LID, FR. MAINTENANCE *R201* (MAGNA RED)

64218-MR5-000ZF

Unavailable

LID ASSY., R. MAINTENANCE *R201* (MAGNA RED)

64280-MR5-010ZF

Unavailable

LID ASSY., L. MAINTENANCE *R201* (MAGNA RED)

64290-MR5-010ZF

Unavailable

STRIKER, MAINTENANCE LID

64296-MR5-871

Unavailable

LATCH, SIDE COVER

64297-MR5-003

$2.94

COWL, FR. (LOWER) *NH340R* (OSTRICH BLACK)

64300-MR5-A30ZA

Unavailable

COLLAR, AIR CLEANER

80109-KG7-000

Unavailable

SCREW, PAN (5X10)

90101-GK0-000

$2.92

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$1.49

SCREW, TAPPING (4X12) (PO)

93913-14280

$1.49

SCREW, PAN (6X11)

90106-KY2-701

$4.24

SCREW, PAN (6X14)

90106-MM4-000

$3.89

SCREW, PAN (6X14)

90113-MM5-000

$3.10

NUT, INSERT (4X0.7)

90315-MJ1-000

Unavailable

NUT, SPRING (5MM)

90320-GC3-000

$2.20

RIVET, SCREW

90658-KM1-003

$2.28

SCREW, TAPPING (3X8)

93903-22120

$1.49

BOLT, SOCKET (6X16)

96600-06016-08

$1.74

BOLT, SOCKET (6X16) This part replaces 96700-06016-08.

96600-06016-08

$1.74

BOLT, SOCKET (6X16)

96600-06016-08

$1.74

BOLT, SOCKET (6X16) This part replaces 96700-06016-08.

96600-06016-08

$1.74
