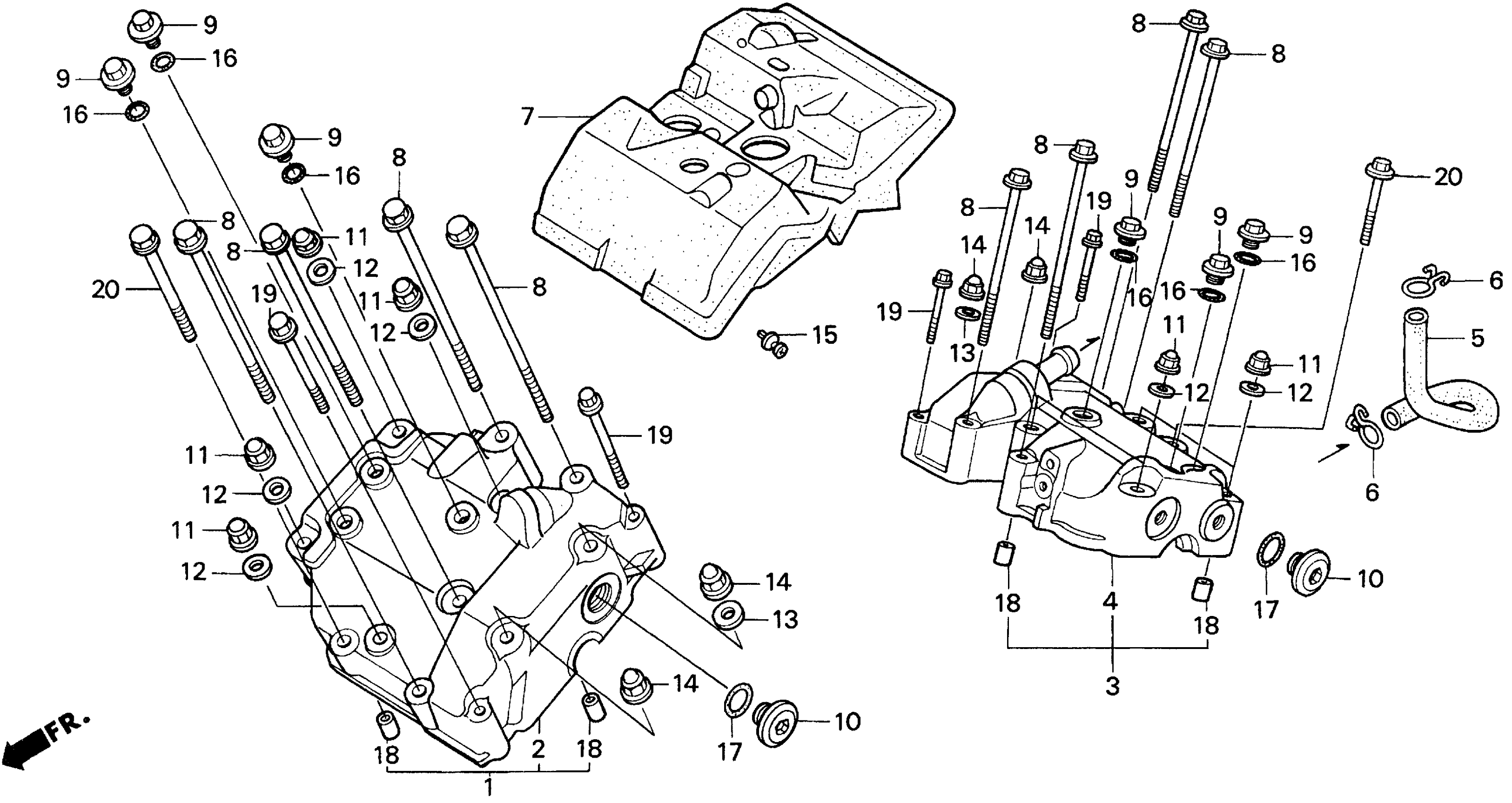

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 CYLINDER HEAD COVER Diagram

COVER, FR. CYLINDER HEAD

12310-MR5-A30

Unavailable

COVER, RR. CYLINDER HEAD

12320-MR5-A30

Unavailable

TUBE, BREATHER

17225-MR5-000

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

COVER, ENGINE TOP

19610-MR5-000

Unavailable

BOLT, FLANGE (8X150)

90015-MG8-000

$5.64

BOLT, SEALING (14MM)

90047-MK7-671

$13.19

BOLT, SEALING (22MM)

90048-MR5-670

$16.45

NUT, FLANGE CAP (10MM)

90202-329-000

$3.42

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

Unavailable

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

NUT, CAP (8MM)

90443-107-000

$2.62

RIVET, SCREW

90658-KM1-003

$2.07

O-RING (13.8X1.9) This part replaces 91301-KJ9-000.

91301-PC0-003

$2.42

O-RING (13.8X1.9)

91301-PC0-003

$2.42

O-RING (21.5X2)

91310-MB0-003

$2.67

PIN, DOWEL (14X20)

94301-14200

$2.25

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

BOLT, FLANGE (8X55)

95701-08055-00

$2.23
