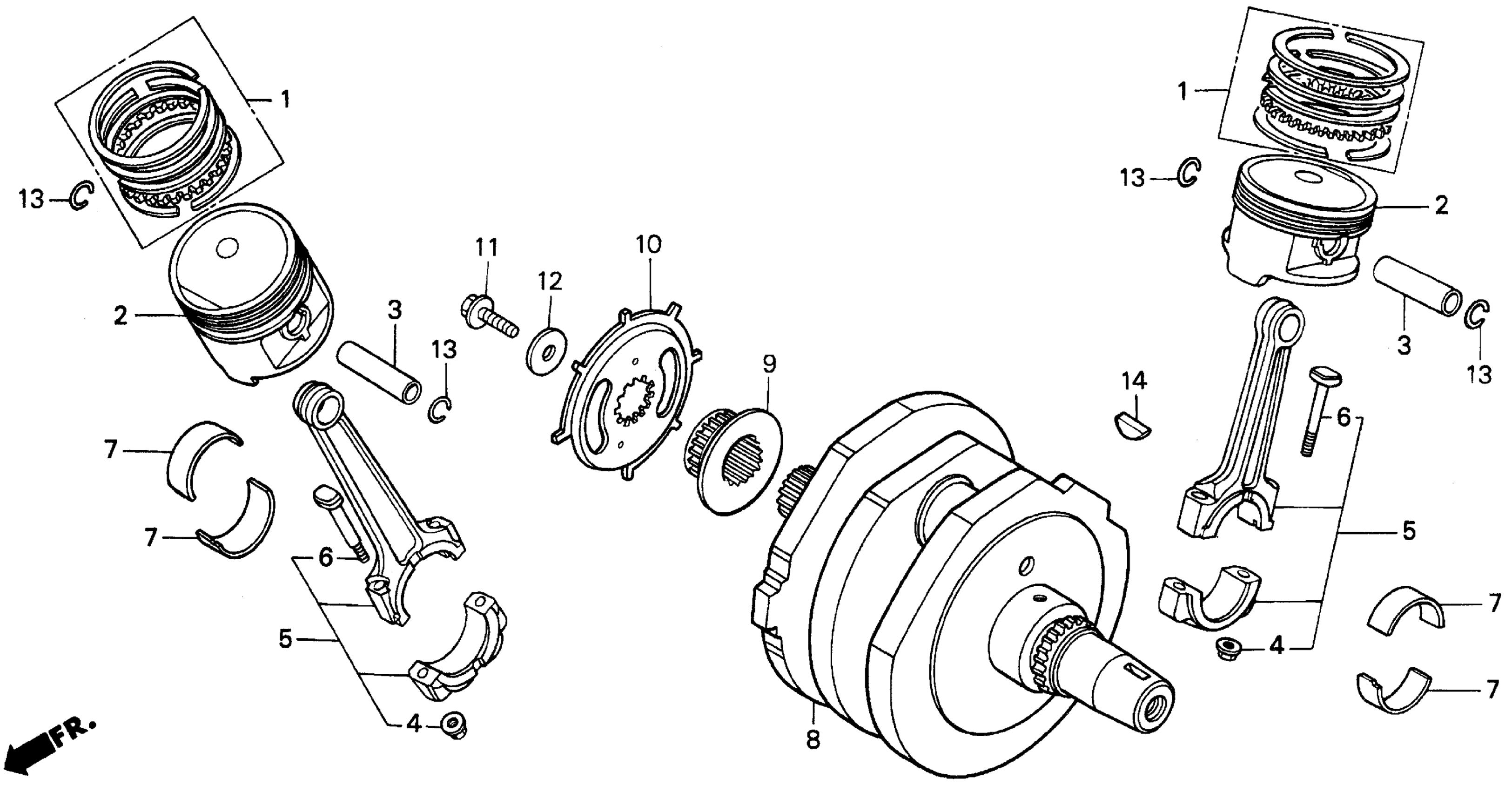

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MR5-305

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional).

13021-MR5-305

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

13031-MR5-305

Unavailable

2

PISTON

13101-MR5-670

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-MR5-305

Unavailable

2

PISTON (OS 0.50) | (Optional).

13103-MR5-305

Unavailable

3

PIN, PISTON

13111-ME9-000

$19.77

4

NUT, CONNECTING ROD

13205-ME2-000

$5.26

5

ROD ASSY. C, CONNECTING This part replaces 13207-MR5-670.

13210-MR5-405

$202.48

5

ROD ASSY. C, CONNECTING This part replaces 13208-MR5-670.

13210-MR5-405

$202.48

5

ROD ASSY. C, CONNECTING This part replaces 13209-MR5-670.

13210-MR5-405

$202.48

5

ROD ASSY. C, CONNECTING

13210-MR5-405

$202.48

5

ROD ASSY. C, CONNECTING This part replaces 13210-MR5-670.

13210-MR5-405

$202.48

6

BOLT, CONNECTING ROD

13213-ME2-000

$10.19

7

BEARING C, CONNECTING ROD (BROWN)

13217-MR5-671

Unavailable

7

BEARING D, CONNECTING ROD (GREEN)

13218-MR5-671

Unavailable

7

BEARING E, CONNECTING ROD (YELLOW)

13219-MR5-671

Unavailable

8

CRANKSHAFT

13300-MR5-670

Unavailable

9

SPROCKET, CAM CHAIN DRIVE

14311-ME9-000

Unavailable

10

PLATE, PULSER

30211-MR5-000

Unavailable

11

BOLT, FLANGE (12X35)

90025-MK7-670

$12.28

12

WASHER (12.5X34X5)

90402-PC6-000

$21.19

13

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

14

KEY, WOODRUFF (25X14)

90741-413-000

$2.56
