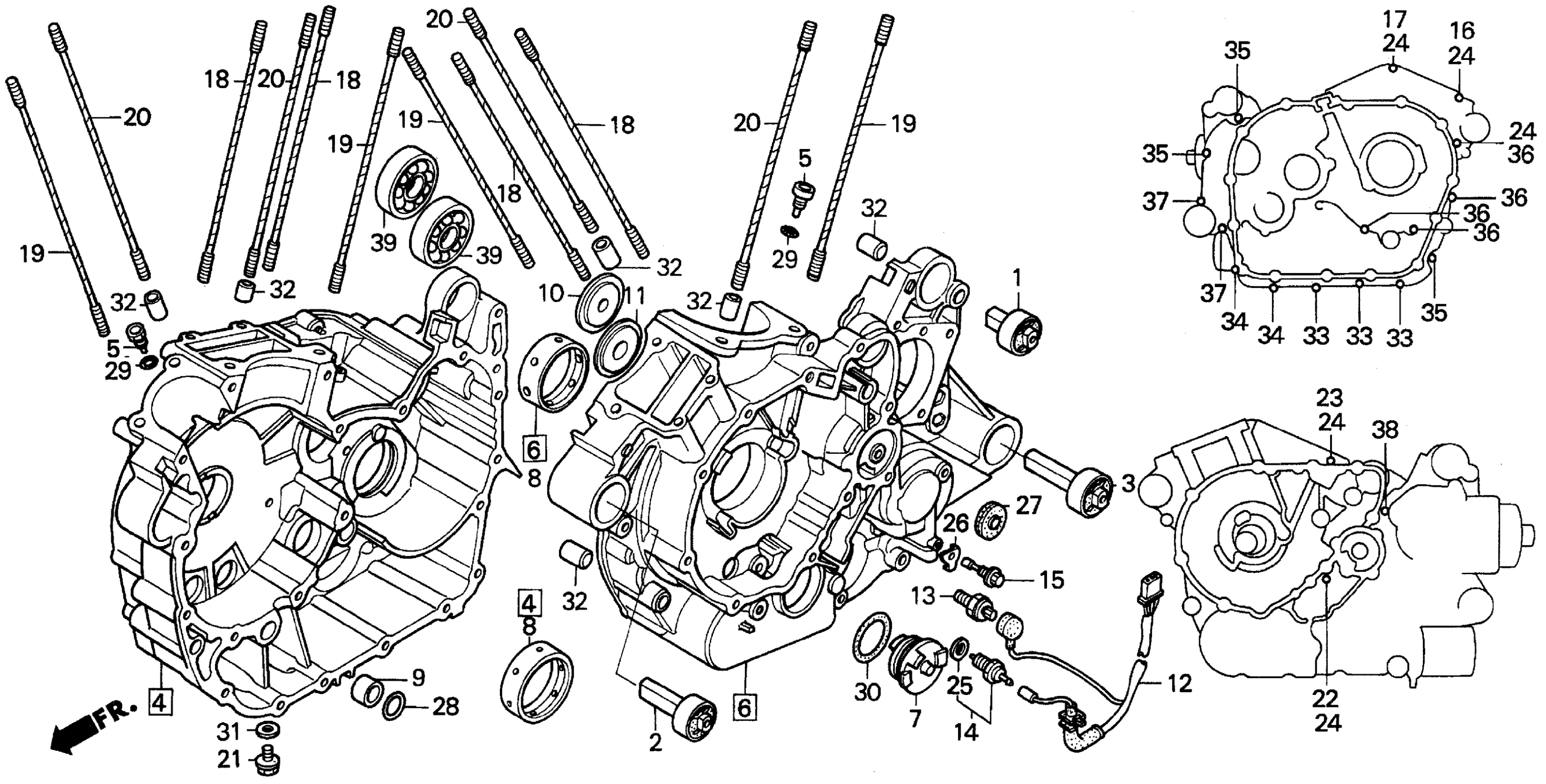

Honda PC800A (98) PACIFIC COAST, JPN, VIN# JH2RC340-WM600001 CRANKCASE Diagram

#

Description
Price

1

RUBBER A, ENGINE MOUNTING

10200-MR5-670

Unavailable

2

RUBBER B, ENGINE MOUNTING

10210-MR5-670

Unavailable

3

RUBBER C, ENGINE MOUNTING

10220-MR5-670

Unavailable

4

CRANKCASE, R.

11100-MR5-671

Unavailable

5

JET, OIL

11146-ME9-000

Unavailable

6

CRANKCASE, L.

11200-MR5-670

Unavailable

7

PLUG, L. CRANKCASE

11211-MK7-770

$29.02

8

BEARING A, MAIN (BLUE)

13325-ME9-305

Unavailable

8

BEARING B, MAIN (BLACK)

13326-ME9-305

Unavailable

8

BEARING C, MAIN (BROWN)

13327-ME9-305

Unavailable

9

COLLAR, O-RING

15155-300-000

$3.47

10

GUIDE, LIFTER ROD

15171-ME9-000

Unavailable

11

PLATE, ORIFICE

15172-ME9-000

Unavailable

12

SUB-HARNESS, ENGINE

32101-MR5-870

Unavailable

13

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

14

SWITCH ASSY., NEUTRAL

35600-425-023

$21.73

15

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$18.00

16

BOLT, FLANGE (8X120)

90005-MK7-670

Unavailable

17

BOLT, FLANGE (8X135)

90006-MK7-670

$3.82

18

BOLT, STUD (8X257)

90011-MR5-670

Unavailable

19

BOLT, STUD (10X270)

90012-MR5-670

Unavailable

20

BOLT, STUD (10X259)

90013-MR5-670

Unavailable

21

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

22

BOLT, SOCKET (8X105)

90122-ME9-000

Unavailable

23

BOLT, SOCKET (8X120)

90126-MK7-670

Unavailable

24

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

25

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

26

PLATE, SEALING (6MM)

90444-MG8-000

$4.89

27

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

28

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

28

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

29

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

30

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

31

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

32

PIN, DOWEL (14X20)

94301-14200

$2.28

33

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

34

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

35

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

36

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

37

BOLT, FLANGE (8X100)

95701-08100-00

$2.15

38

BOLT, FLANGE (6X100)

95801-06100-00

$1.74

39

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
