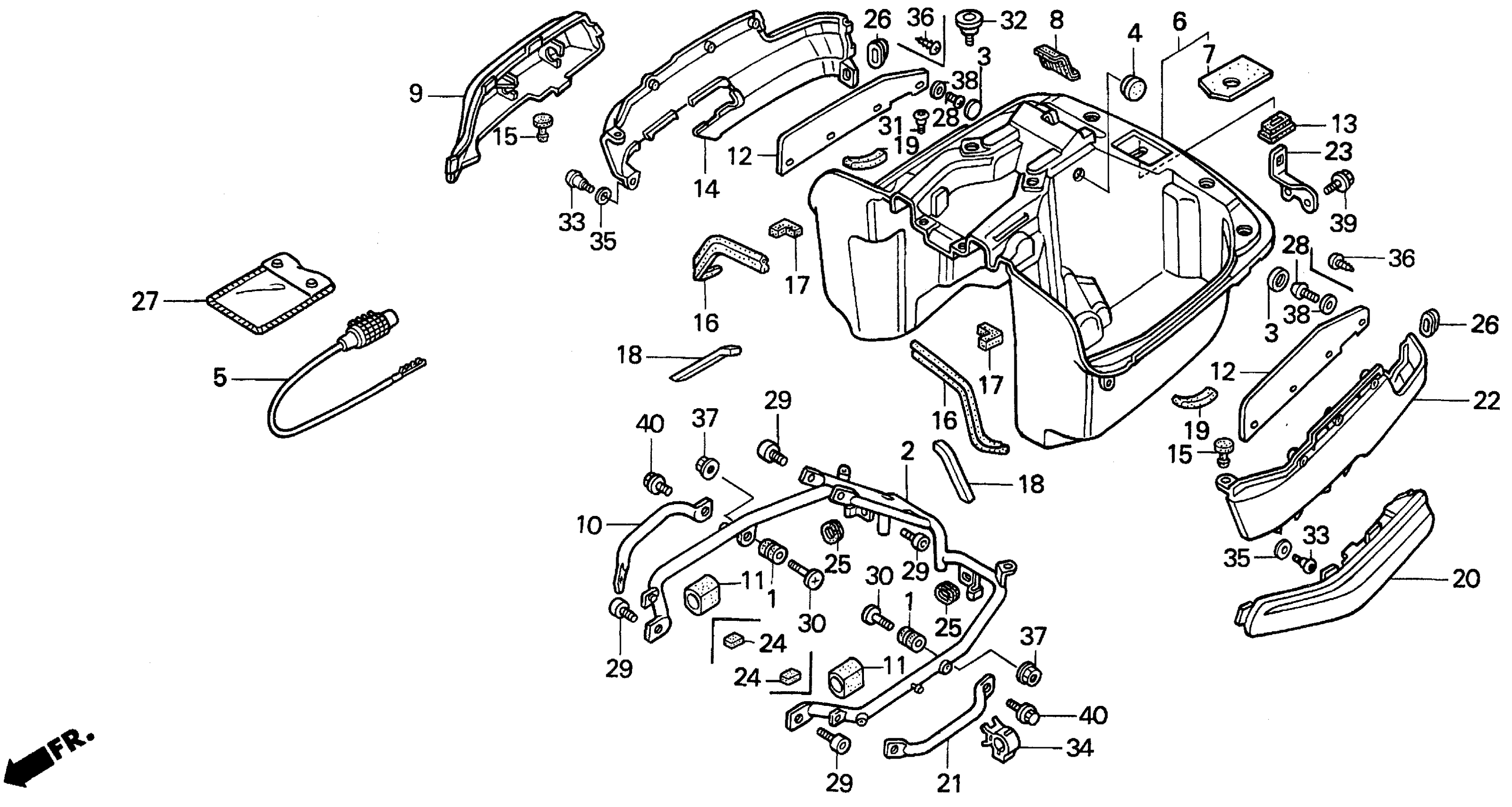

Honda PC800A (95) PACIFIC COAST, JPN, VIN# JH2RC340-SM300001 TO JH2RC340-SM300869 TRUNK INNER BODY Diagram

#

Description
Price

1

RUBBER, SETTING

43516-MR5-000

$4.92

2

FRAME, RR. TRUNK

50240-MR5-870

Unavailable

3

CAP, SCREEN SCREW

64109-MA2-000

$3.83

4

GROMMET B, SIDE PANEL

70529-657-670

$10.66

5

LOCK, WIRE This part replaces 77237-MR5-000.

77237-MR5-003

Unavailable

6

BODY, TRUNK (INNER)

81210-MR5-010

Unavailable

7

SHEET, TRUNK BODY (INNER)

81211-MR5-300

Unavailable

8

GROMMET, SEAL (A)

81213-MR5-000

Unavailable

9

PROTECTOR *NH292M* (GRIFFIN GRAY) This part replaces 81214-MR5-000ZC.

81214-MR5-000ZE

Unavailable

9

PROTECTOR *NH292M* (GRIFFIN GRAY)

81214-MR5-000ZE

Unavailable

10

BUMPER, R. RR.

81215-MR5-000

Unavailable

11

RUBBER, TRUNK

81215-MR5-870

Unavailable

12

WALL, TRUNK SIDE

81216-MR5-000

Unavailable

13

GROMMET, SEAL (B)

81217-MR5-000

Unavailable

14

COVER, R. *NH292M* (GRIFFIN GRAY) This part replaces 81240-MR5-000ZC.

81240-MR5-000ZE

Unavailable

14

COVER, R. *NH292M* (GRIFFIN GRAY)

81240-MR5-000ZE

Unavailable

15

PLUG, PIN

81242-MR5-000

Unavailable

16

RUBBER, SEAL (B)

81355-MR5-000

Unavailable

17

RUBBER, SEAL (H)

81364-MR5-300

Unavailable

18

RUBBER, SEAL (K)

81368-MR5-300

Unavailable

19

RUBBER, SEAL (L)

81369-MR5-300

Unavailable

20

PROTECTOR *NH292M* (GRIFFIN GRAY) This part replaces 81414-MR5-000ZC.

81414-MR5-000ZE

Unavailable

20

PROTECTOR *NH292M* (GRIFFIN GRAY)

81414-MR5-000ZE

Unavailable

21

BUMPER, L. RR.

81415-MR5-000

Unavailable

22

COVER, L. TRUNK *NH292M* (GRIFFIN GRAY) This part replaces 81440-MR5-000ZC.

81440-MR5-000ZE

Unavailable

22

COVER, L. TRUNK *NH292M* (GRIFFIN GRAY)

81440-MR5-000ZE

Unavailable

23

STRIKER, TRUNK (LOWER)

83305-MR5-000

Unavailable

25

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

26

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

27

BAG, OWNER'S MANUAL

83642-MN5-000

$16.39

28

SCREW, SPECIAL (5MM)

90006-MR5-870

Unavailable

29

BOLT, SOCKET (8X25)

90102-MN8-700

$3.89

30

BOLT, SPECIAL (6X24)

90103-MR5-010

$3.53

31

BOLT,FLANGE,6X14 This part replaces 90113-MR5-000.

90113-KAZ-000

Unavailable

32

BOLT, SPECIAL (6X12)

90115-MR5-000

Unavailable

33

SCREW, PAN (5X16.5)

90142-MB0-000

$2.58

34

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

35

WASHER, PLAIN (7MM)

90755-693-620

Unavailable

37

NUT, FLANGE (6MM)

94050-06080

$1.49

38

WASHER, PLAIN (5MM)

94101-05700

$1.49

39

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

40

BOLT, FLANGE (8X14)

95701-08014-08

$1.80
