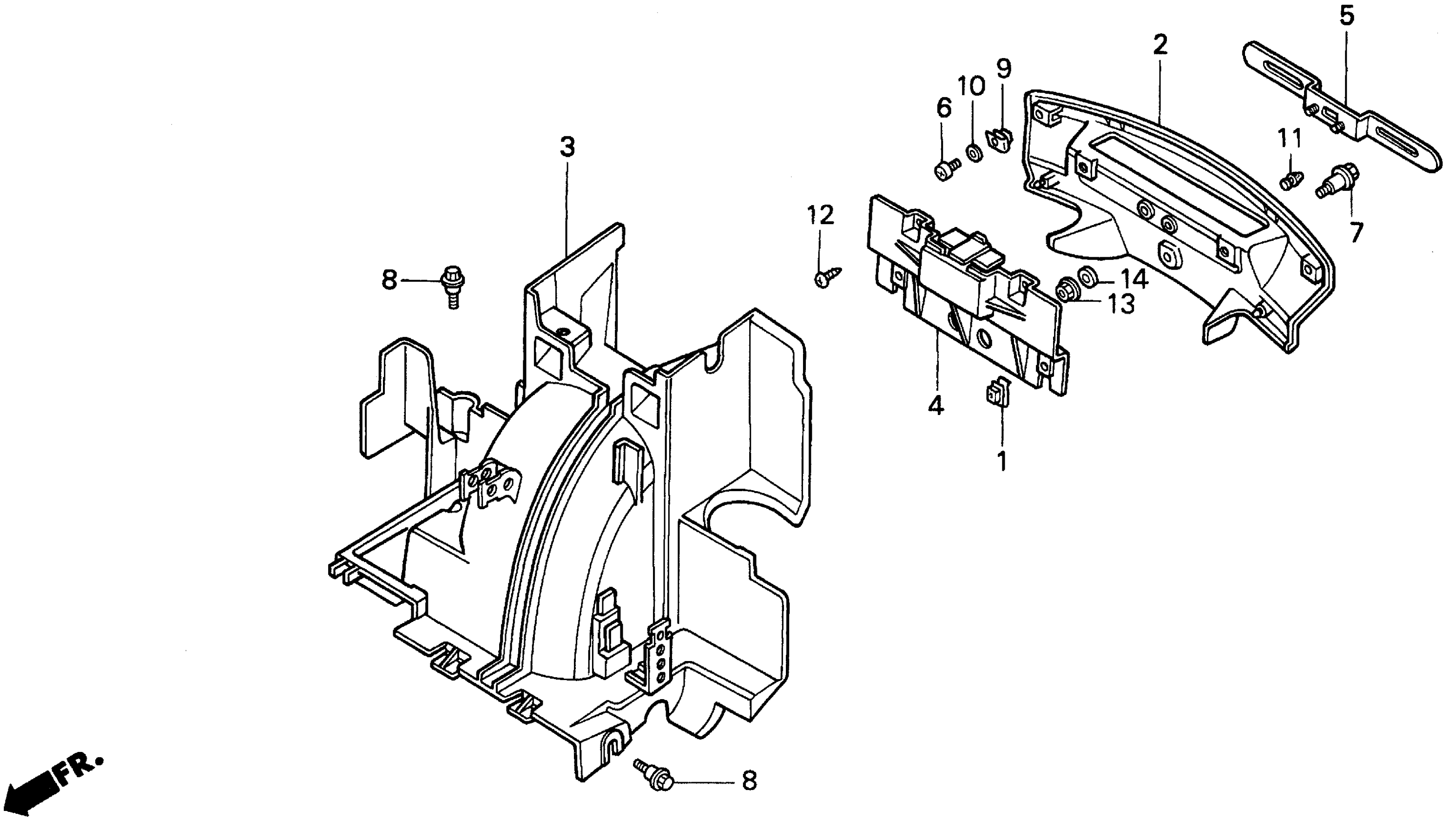

Honda PC800A (94) PACIFIC COAST, JPN, VIN# JH2RC340-RM200008 TO JH2RC340-RM200980 REAR FENDER Diagram

NUT, CLIP (6MM)

64529-MC7-000

Unavailable

FENDER A, R. *NH292M* (GRIFFIN GRAY) This part replaces 80100-MR5-000ZC.

80100-MR5-000ZE

Unavailable

FENDER A, R. *NH292M* (GRIFFIN GRAY)

80100-MR5-000ZE

Unavailable

FENDER B, RR.

80105-MR5-000

Unavailable

SPLASH GUARD A, RR.

80125-MR5-000

Unavailable

BRACKET, NUMBER PLATE

84701-MR5-000

Unavailable

SCREW, PAN (5X17)

90105-MG9-000

$3.28

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

BOLT, FLANGE (6MM) (BLACK)

90113-GE4-000

$4.75

NUT, CLIP (5MM)

90677-GR1-003

$4.27

WASHER, PLAIN (7MM)

90755-693-620

Unavailable

PLUG, CONE TYPE

90899-422-610

$1.89

SCREW, TAPPING (6X20)

93903-26320

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
