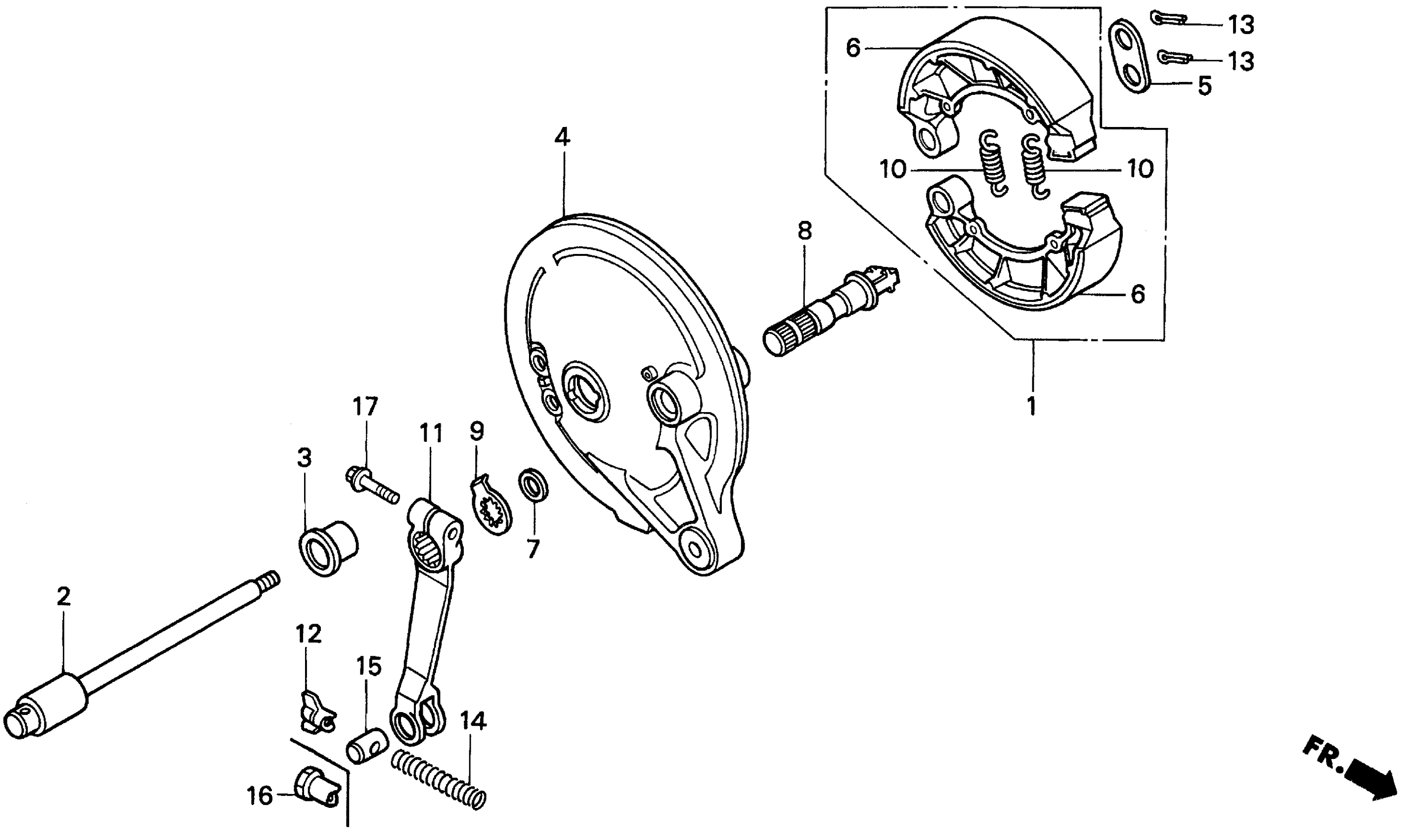

Honda PC800A (94) PACIFIC COAST, JPN, VIN# JH2RC340-RM200008 TO JH2RC340-RM200980 REAR BRAKE PANEL Diagram

SHOE KIT, BRAKE

06430-MR5-006

Unavailable

AXLE, RR. WHEEL

42301-MR5-000

Unavailable

COLLAR, RR. WHEEL SIDE

42313-MR5-000

Unavailable

PANEL, BRAKE

43100-MR5-000

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

CAM, RR. BRAKE

43141-MB0-010

$41.60

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MR5-000

Unavailable

NUT, BRAKE ADJUSTING

43459-HB2-000

$11.08

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
