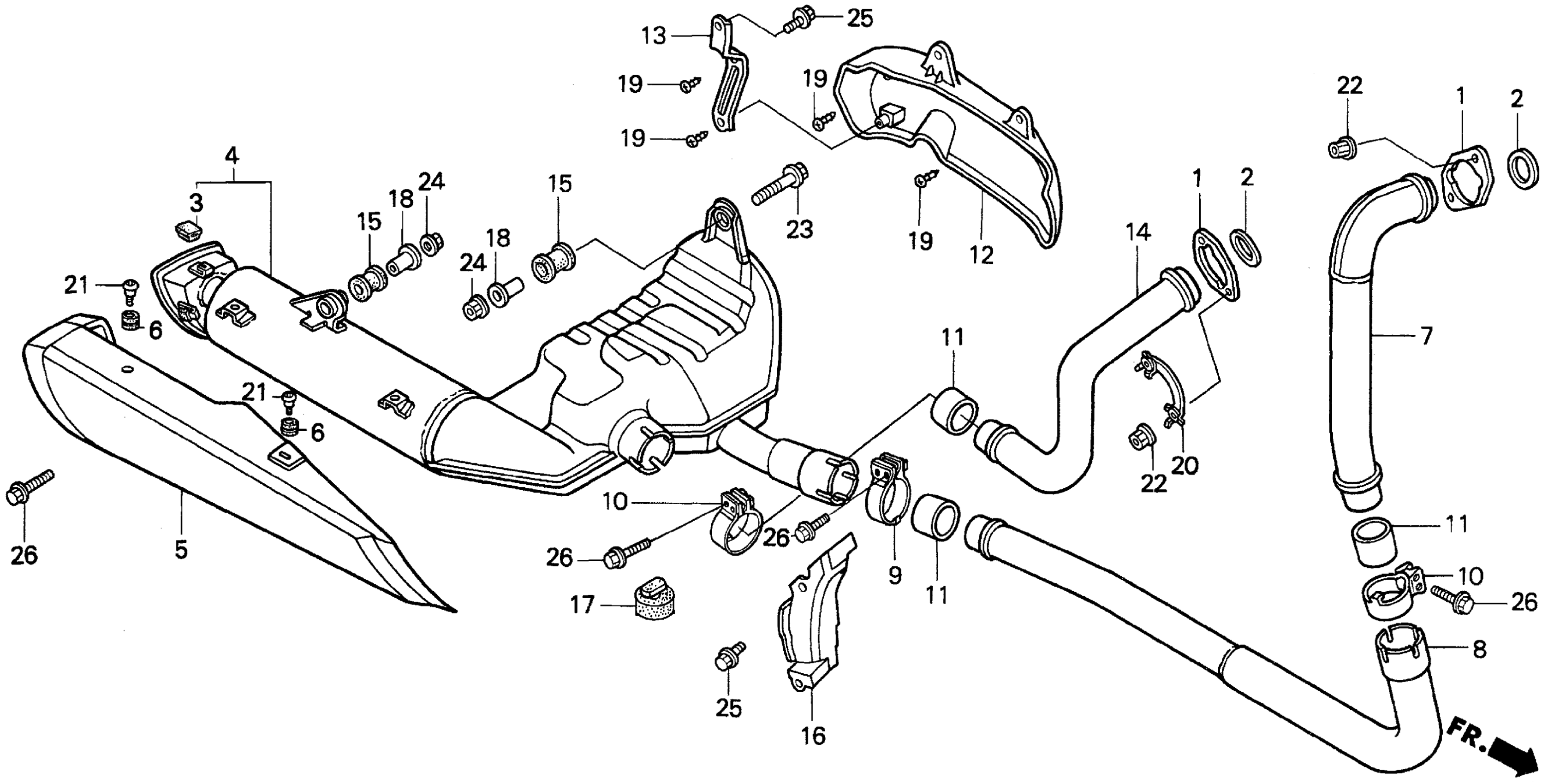

Honda PC800A (94) PACIFIC COAST, JPN, VIN# JH2RC340-RM200008 TO JH2RC340-RM200980 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MR5-000

Unavailable

2

GASKET, EX. PIPE

18291-MR5-801

$12.82

3

RUBBER, PROTECTOR

18293-MN0-000

$2.13

4

MUFFLER, EX.

18300-MR5-P00

Unavailable

4

MUFFLER, EX. This part replaces 18300-MR5-870.

18300-MR5-P00

Unavailable

5

COVER, MUFFLER

18315-MR5-000

Unavailable

6

RUBBER, MUFFLER COVER

18318-MR5-000

Unavailable

7

PIPE, FR. EX. (A)

18320-MR5-003

Unavailable

8

PIPE, FR. EX. (B)

18330-MR5-003

Unavailable

9

BAND, FR. EX. PIPE

18373-MR5-000

$26.83

10

BAND, MUFFLER

18376-KG0-003

$18.83

11

GASKET, MUFFLER

18392-MK4-000

$13.66

12

COVER, L. MUFFLER

18415-MR5-000

Unavailable

13

STAY, MUFFLER COVER

18418-MR5-000

Unavailable

14

PIPE, RR. EX.

18420-MR5-871

$162.64

15

RUBBER, MUFFLER MOUNTING

18421-KE8-000

Unavailable

16

COVER, RR. EX. HEAT

18425-MR5-870

Unavailable

17

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

18

COLLAR, STEP

51486-GT3-620

Unavailable

19

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$1.49

19

SCREW, TAPPING (4X12) (PO)

93913-14280

$1.49

20

WASHER ASSY., TONGUED

90107-MR5-870

Unavailable

21

SCREW, PAN (6X14)

90113-MM5-000

$3.10

22

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

23

BOLT-WASHER (8X35)

93404-08035-00

$3.80

24

NUT, FLANGE (8MM)

94050-08080

$1.49

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
