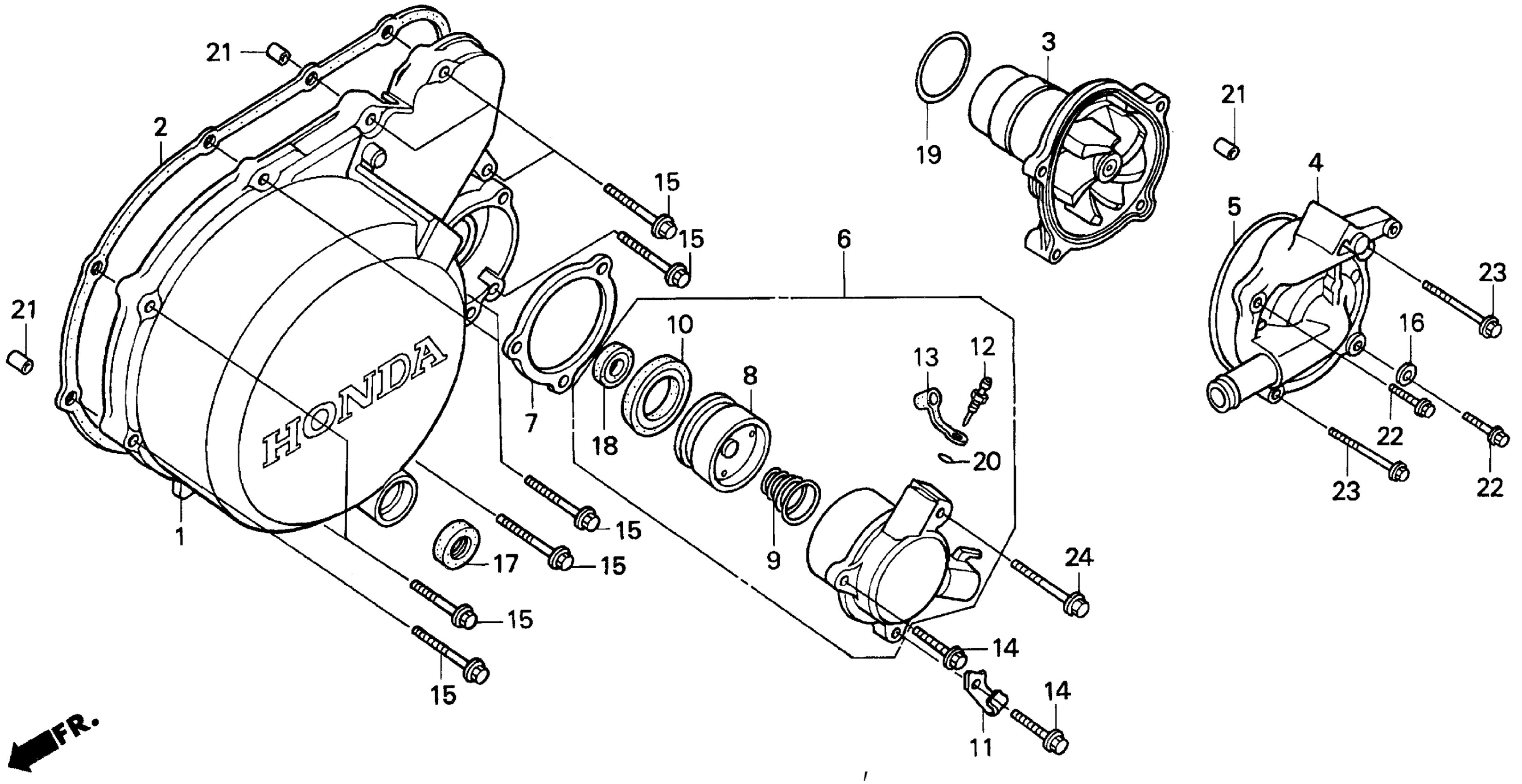

Honda PC800A (94) PACIFIC COAST, JPN, VIN# JH2RC340-RM200008 TO JH2RC340-RM200980 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11361-MR5-670

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-MR5-800

Unavailable

3

WATER PUMP This part replaces 19200-ME9-030.

19200-ME9-040

Unavailable

3

WATER PUMP

19200-ME9-040

Unavailable

4

COVER, WATER PUMP

19221-MAA-000

Unavailable

5

GASKET, WATER PUMP COVER

19226-ME9-000

$5.87

6

CYLINDER ASSY., SLAVE

22860-MR6-670

Unavailable

7

INSULATOR, CLUTCH SLAVE CYLINDER

22862-MB0-000

$9.33

8

PISTON, SLAVE CYLINDER

22863-MB0-003

$32.02

9

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

10

CUP, PISTON

22865-MB0-003

$13.86

11

CLAMP, CABLE

32111-MR5-000

Unavailable

12

SCREW, BLEEDER

43352-MG9-006

$5.44

13

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

13

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

13

CAP, BLEEDER

43353-461-771

$5.05

14

BOLT, FLANGE (6X25) (NSHF) This part replaces 90001-GHB-670.

90004-GHB-670

$2.89

14

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

15

BOLT, FLANGE (6X35)

90001-GHB-700

Unavailable

16

WASHER, SEALING (6MM)

90441-706-000

$1.49

17

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

18

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

19

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

20

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

21

PIN, DOWEL (8X14)

94301-08140

$2.25

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

23

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

24

BOLT, FLANGE (6X35)

90001-GHB-700

Unavailable
