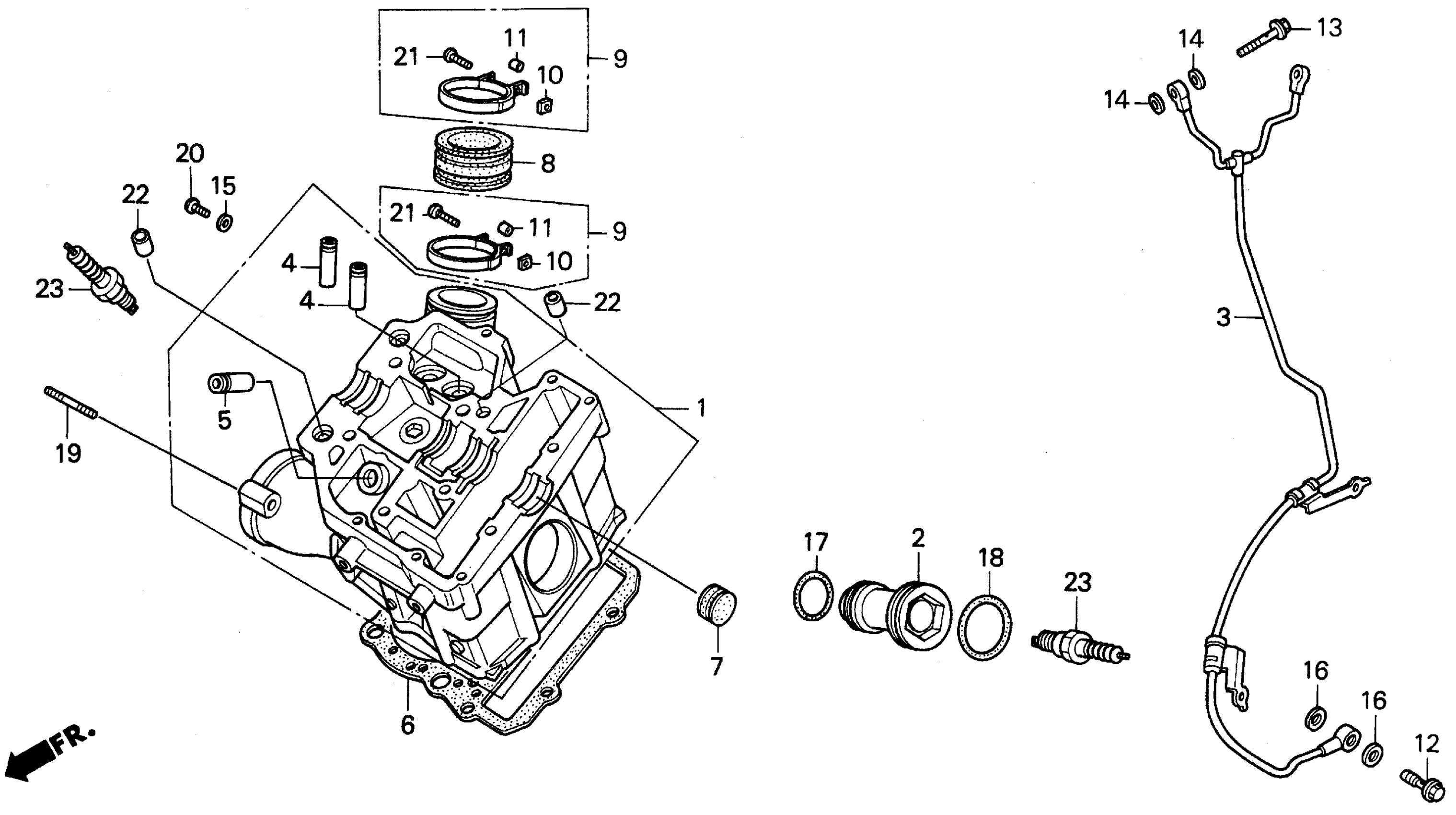

Honda PC800A (90) PACIFIC COAST, JPN, VIN# JH2RC340-LM100001 TO JH2RC340-LM102558 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD, FR.

12210-MR5-670

Unavailable

2

SLEEVE, PLUG

12225-ME9-000

Unavailable

3

PIPE A, OIL PASSAGE

12230-MR5-670

Unavailable

4

GUIDE, VALVE

12231-MG8-305

$20.08

5

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

5

GUIDE, IN VALVE

12233-MG8-405

Unavailable

6

GASKET, CYLINDER HEAD

12251-MR5-670

Unavailable

7

PLUG, CAMSHAFT

12312-ME9-750

$10.12

8

INSULATOR, CARBURETOR

16211-MR5-670

Unavailable

9

BAND, INSULATOR

16219-MR5-870

Unavailable

10

NUT, SQUARE (5MM)

16222-MR5-670

$1.98

11

COLLAR

16223-MR5-870

Unavailable

12

BOLT, OIL CONTROL

90046-MR5-670

$8.93

13

BOLT, SPECIAL (7X38)

90130-MK7-671

Unavailable

14

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

15

WASHER, SEALING (5MM)

90452-323-000

$1.59

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

18

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

19

BOLT, STUD (8X32)

92900-08032-0E

$2.17

20

SCREW, PAN (5X8)

93500-05008-0A

$1.49

21

SCREW, PAN (5X20)

93500-05020-0G

$1.49

22

PIN, DOWEL (14X20)

94301-14200

$2.28

23

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

23

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

23

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
