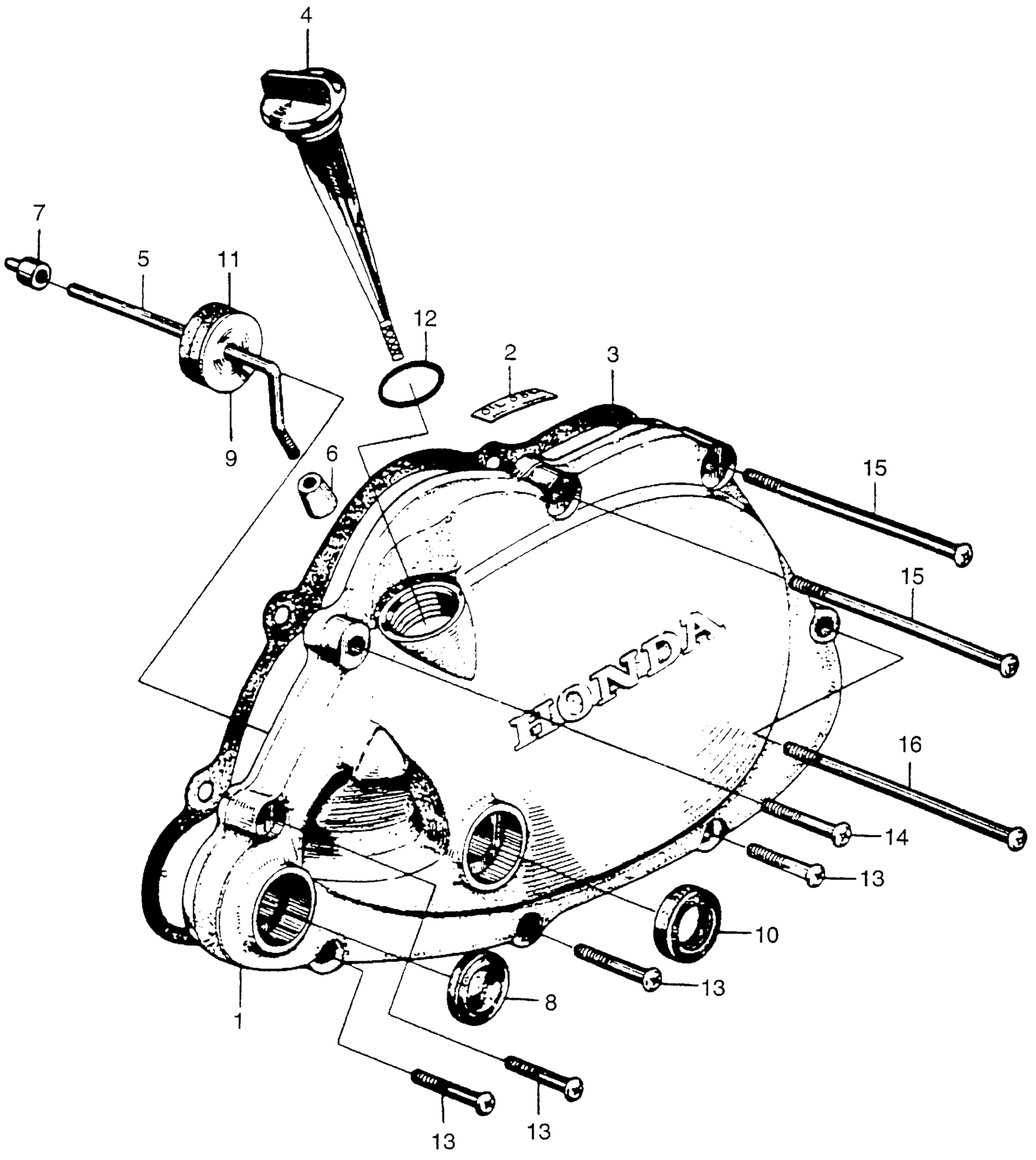

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11331-063-020

Unavailable

2

LABEL, OIL

11332-063-010

Unavailable

3

GASKET, R. This part replaces 11394-063-010.

11394-063-306

Unavailable

4

DIPSTICK, OIL (NOT AVAILABLE)

15650-063-010

Unavailable

5

LEVER, FREE PAWL (NOT AVAILABLE)

24611-063-700

Unavailable

6

CAP, FREE PAWL LEVER (NOT AVAILABLE)

24612-063-000

Unavailable

7

GUIDE, FREE PAWL (NOT AVAILABLE)

24615-044-010

Unavailable

8

CAP, KICK SPINDLE HOLE

28252-064-000

Unavailable

9

WASHER (5X30)

90456-063-000

Unavailable

10

OIL SEAL (16X24X6) (ARAI) This part replaces 91204-063-003.

91211-PE9-003

Unavailable

10

OIL SEAL (16X24X6) (ARAI)

91211-PE9-003

Unavailable

11

OIL SEAL (5X30X6) (NOT AVAILABLE)

91212-063-005

Unavailable

12

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

12

O-RING (18X3)

91307-035-000

$2.92

12

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.92

13

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

14

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

14

SCREW, PAN (6X32)

93500-06032-0A

$1.49

15

SCREW, PAN (6X90) (SOURCE: VINTAGE PARTS INC.)

93500-06090

Unavailable

16

SCREW, PAN (6X100) (NOT AVAILABLE)

93500-06100

Unavailable
