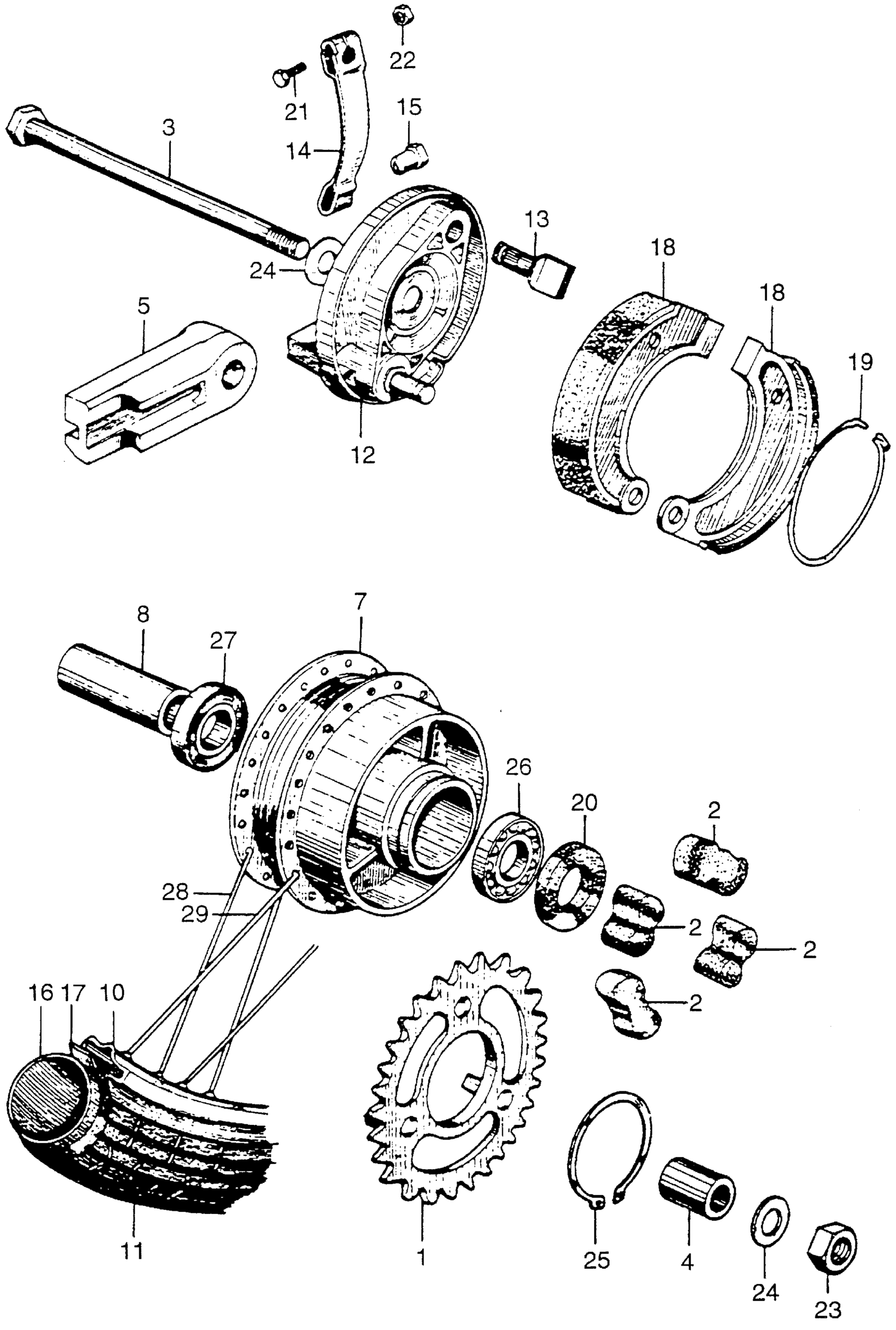

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN

41201-063-040

Unavailable

2

DAMPER, RR. WHEEL (NOT AVAILABLE)

41241-063-000

Unavailable

3

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-063-010

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-063-010

Unavailable

5

COLLAR, RR. BRAKE PANEL SIDE

42313-063-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-063-020

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-063-010

Unavailable

10

RIM, RR. WHEEL

42701-063-003

Unavailable

11

TIRE, RR. WHEEL This part replaces 42711-063-006.

42711-081-734

Unavailable

11

TIRE, RR. WHEEL This part replaces 42711-081-003.

42711-081-734

Unavailable

11

TIRE, RR. WHEEL This part replaces 42711-081-006.

42711-081-734

Unavailable

12

PANEL, RR. BRAKE

43100-063-020

Unavailable

13

CAM, RR. BRAKE

43141-063-010

Unavailable

14

ARM, RR. BRAKE (NOT AVAILABLE)

43410-063-020

Unavailable

15

NUT, BRAKE ADJ. This part replaces 43473-063-000.

43473-063-405

Unavailable

16

TUBE, TIRE (2.00X19) This part replaces 08400-06300.

44712-063-003

Unavailable

16

TUBE, TIRE (2.00X19) This part replaces 44712-063-000.

44712-063-003

Unavailable

17

FLAP, FR. TUBE (NOT AVAILABLE)

44713-063-000

Unavailable

18

SHOE SET, BRAKE

06430-131-405

$15.33

18

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-063-003.

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-147-010.

43120-GZ9-003

Unavailable

18

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

19

SPRING, BRAKE SHOE

45133-044-000

$2.31

20

OIL SEAL (17X32X6) This part replaces 90752-044-000.

91201-727-641

Unavailable

20

OIL SEAL (17X32X6)

91201-727-641

Unavailable

21

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

21

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

22

NUT, HEX. (5MM)

94001-05000-0S

$2.74

23

NUT, HEX. (12MM)

94001-12000-0S

$1.66

24

WASHER, PLAIN (12MM)

94101-12000

$1.49

25

CIRCLIP (OUTER) (38MM)

94511-38000

Unavailable

26

BEARING, RADIAL BALL (6201) This part replaces 96100-62010.

96100-62010-00

$8.08

26

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

27

BEARING, RADIAL BALL (6201U) This part replaces 96140-62010.

96140-62010-00

$9.63

27

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63

28

SPOKE A (12X197) (NOT AVAILABLE)

97197-21235-1

Unavailable

29

SPOKE A (12X197)

97324-21234-1

Unavailable
