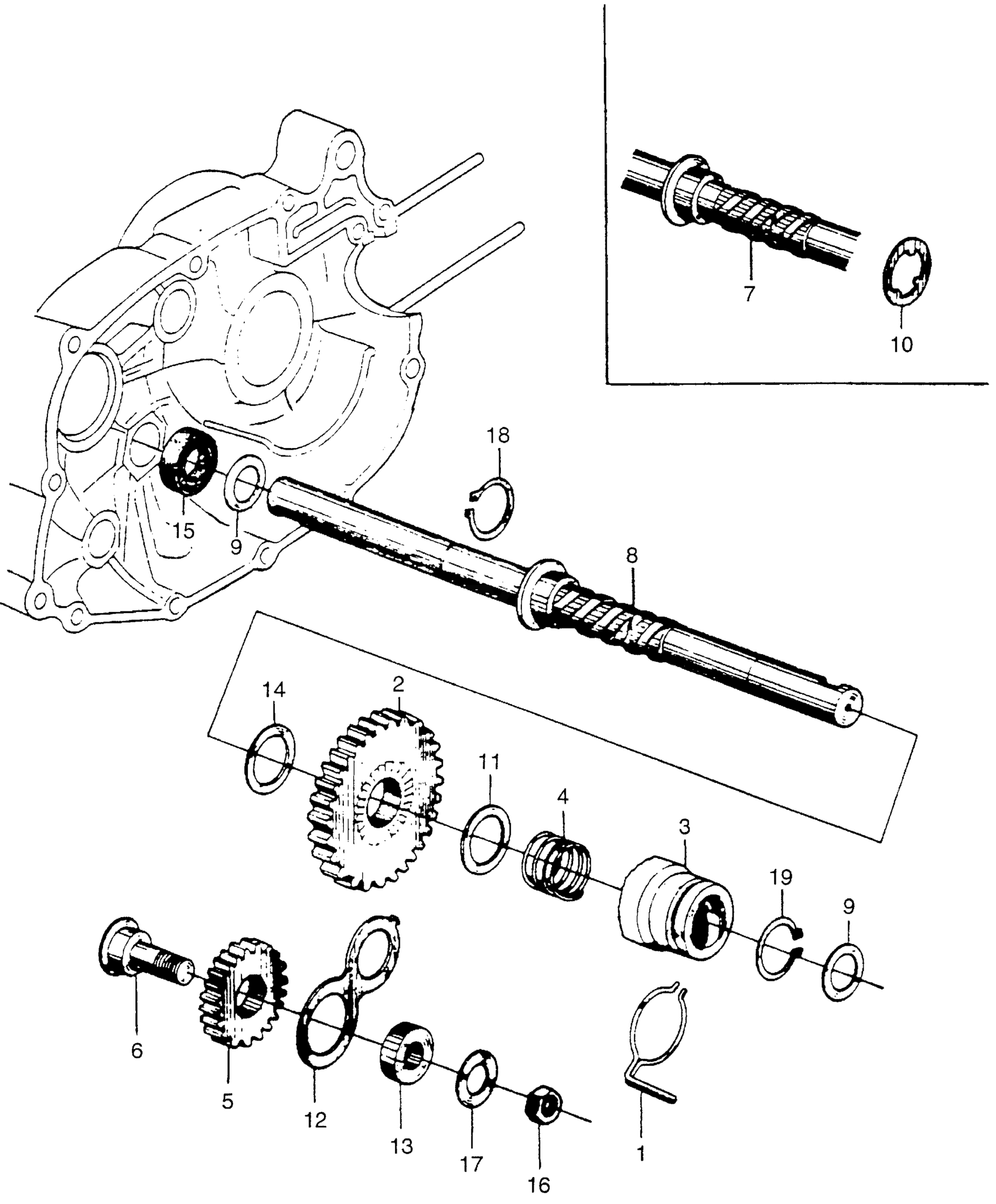

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 PEDAL SHAFT Diagram

#

Description
Price

1

SPRING, FRICTION

28239-063-010

Unavailable

2

GEAR, STARTER (38T)

28803-063-010

Unavailable

3

RATCHET, STARTER DRIVE

28806-063-010

Unavailable

4

SPRING, STARTER GEAR SET

28807-063-000

Unavailable

5

GEAR, STARTER IDLE (NOT AVAILABLE)

28808-063-000

Unavailable

6

SHAFT, STARTER IDLE GEAR (NOT AVAILABLE)

28809-063-000

Unavailable

7

SHAFT, PEDAL

28810-063-020

Unavailable

9

WASHER, THRUST (16MM)

90453-235-000

$1.83

11

WASHER (20MM)

90463-063-020

Unavailable

12

WASHER, COUNTER (NOT AVAILABLE)

90467-063-000

Unavailable

13

COLLAR, IDLE GEAR

90503-063-000

Unavailable

14

WASHER A, THRUST

90553-706-000

Unavailable

15

OIL SEAL (16X24X6) (ARAI) This part replaces 91204-063-003.

91211-PE9-003

Unavailable

15

OIL SEAL (16X24X6) (ARAI)

91211-PE9-003

Unavailable

16

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

16

NUT, HEX. (10MM)

94030-10000

$1.49

16

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

17

WASHER, PLAIN (10MM)

94101-10000

$1.49

18

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

19

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49
