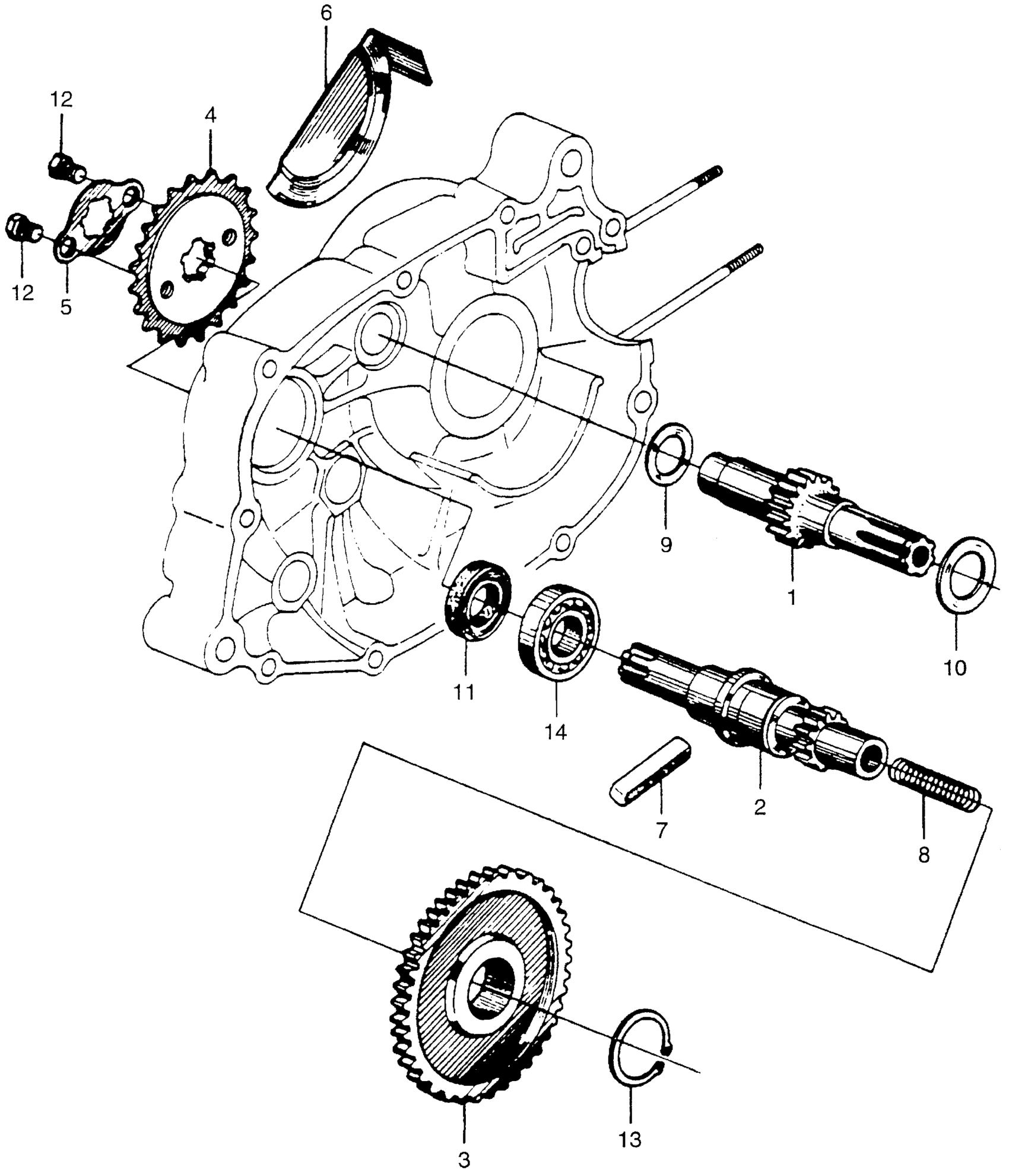

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 MAINSHAFT + COUNTERSHAFT Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-063-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-063-040

Unavailable

3

GEAR, TRANSMISSION COUNTER (NOT AVAILABLE)

23226-063-700

Unavailable

4

SPROCKET, DRIVE (NOT AVAILABLE)

23801-063-000

Unavailable

5

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

6

COVER, DRIVE CHAIN (NOT AVAILABLE)

23805-063-010

Unavailable

7

POLE, FREE (NOT AVAILABLE)

24111-044-010

Unavailable

8

SPRING, FREE PAWL (NOT AVAILABLE)

24621-044-020

Unavailable

9

WASHER, THRUST (14MM)

90451-001-000

$3.67

10

WASHER, THRUST (17MM)

90451-040-000

Unavailable

11

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

11

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

12

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

12

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

12

BOLT, HEX. (6X8) This part replaces 92100-06008.

92101-06008-0A

$1.49

12

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

13

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49

14

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

14

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35
