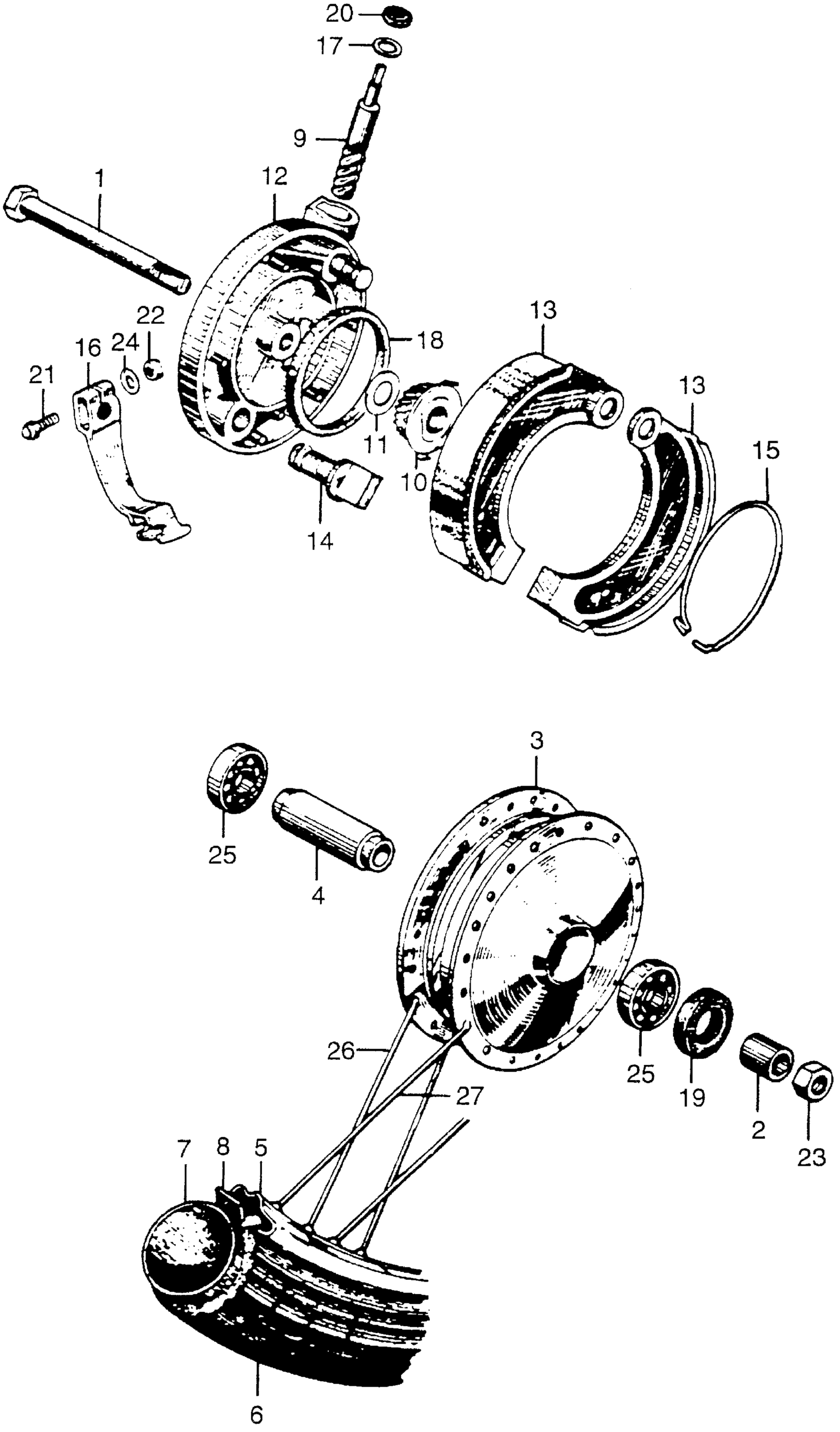

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL

44301-063-000

Unavailable

2

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-044-020

Unavailable

3

HUB, FR. WHEEL (NOT AVAILABLE) This part replaces 44601-063-000.

44601-063-010

Unavailable

3

HUB, FR. WHEEL (NOT AVAILABLE)

44601-063-010

Unavailable

4

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-044-000

Unavailable

5

RIM, FR. WHEEL

44701-044-690

Unavailable

6

TIRE, FR. WHEEL (2.00-19) (BS) (NOT AVAILABLE) This part replaces 44711-063-006.

44711-081-732

Unavailable

6

TIRE, FR. WHEEL (2.00-19) (BS) (NOT AVAILABLE) This part replaces 44711-081-731.

44711-081-732

Unavailable

6

TIRE, FR. WHEEL (2.00-19) (BS) (NOT AVAILABLE)

44711-081-732

Unavailable

7

TUBE, TIRE (2.00X19) This part replaces 08400-06300.

44712-063-003

Unavailable

7

TUBE, TIRE (2.00X19) This part replaces 44712-063-000.

44712-063-003

Unavailable

8

FLAP, FR. TUBE (NOT AVAILABLE)

44713-063-000

Unavailable

9

PINION, SPEEDOMETER (NOT AVAILABLE)

44805-044-690

Unavailable

10

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-044-690

Unavailable

11

WASHER, SPEEDOMETER GEAR (NOT AVAILABLE)

44809-044-000

Unavailable

12

PANEL, FR. BRAKE

45010-081-305

Unavailable

13

SHOE SET, BRAKE

06430-131-405

$15.33

13

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-063-003.

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-147-010.

43120-GZ9-003

Unavailable

13

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

14

CAM, FR. BRAKE (NOT AVAILABLE)

45131-063-000

Unavailable

15

SPRING, BRAKE SHOE

45133-044-000

$2.31

16

ARM, FR. BRAKE (NOT AVAILABLE) This part replaces 45410-063-000.

45410-081-000

Unavailable

16

ARM, FR. BRAKE (NOT AVAILABLE)

45410-081-000

Unavailable

17

WASHER, SPEEDOMETER PINION

90539-044-000

Unavailable

18

OIL SEAL (39X47X5) (NOT AVAILABLE)

90751-044-000

Unavailable

19

OIL SEAL (17X32X6) This part replaces 90752-044-000.

91201-727-641

Unavailable

19

OIL SEAL (17X32X6)

91201-727-641

Unavailable

20

OIL SEAL (45X11X35) (NOT AVAILABLE)

90753-044-000

Unavailable

21

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

21

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

22

NUT, HEX. (5MM)

94001-05000-0S

$2.74

23

NUT, HEX. (10MM)

94001-10000-0S

$1.49

24

WASHER, PLAIN (5MM)

94101-05000

$1.49

25

BEARING, RADIAL BALL (6201) This part replaces 96100-62010.

96100-62010-00

$8.08

25

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

26

SPOKE A (13X202.5) (NOT AVAILABLE)

97142-11245-1

Unavailable

27

SPOKE A (13X202) (NOT AVAILABLE)

97241-11244-1

Unavailable
