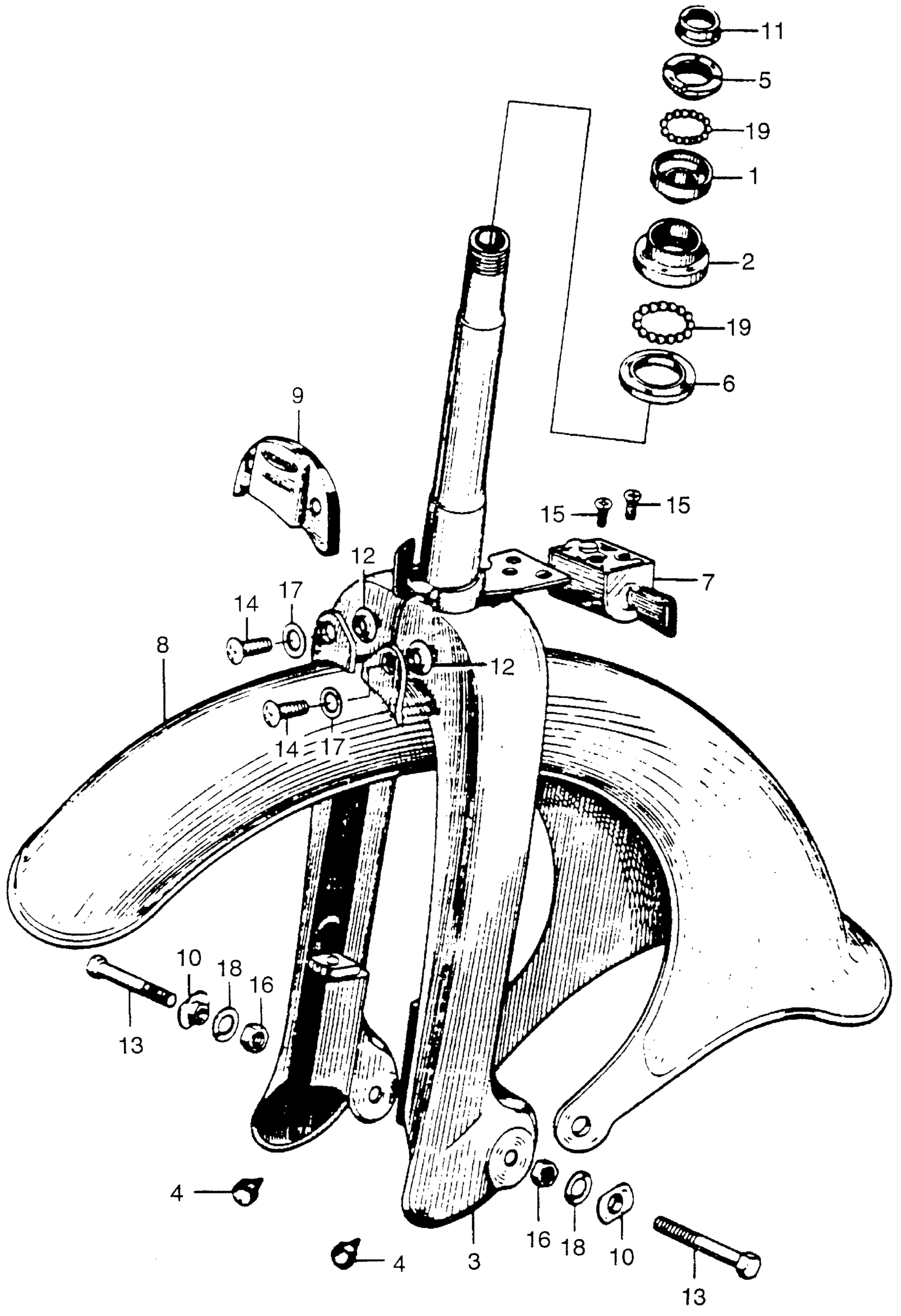

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-044-020.

50301-045-670

Unavailable

1

RACE, STEERING TOP BALL

50301-045-670

Unavailable

2

RACE, STEERING BALL (LOWER) (NOT AVAILABLE)

50302-044-000

Unavailable

3

FORK, FR. (NOT AVAILABLE)

51100-044-070Z

Unavailable

4

RUBBER, FR. FORK REBOUND STOPPER (NOT AVAILABLE)

51404-044-030

Unavailable

5

RACE, STEERING TOP CONE (NOT AVAILABLE)

53211-044-010

Unavailable

6

RACE, STEERING CONE (LOWER) (NOT AVAILABLE)

53212-044-000

Unavailable

7

LOCK, HANDLEBAR (HONDALOCK) (NOT AVAILABLE) This part replaces 53600-044-000.

53600-001-027

Unavailable

8

FENDER, FR. *Y3L* (IVORY WHITE) (NOT AVAILABLE) This part replaces 61100-044-030XL.

61100-081-680XL

Unavailable

8

FENDER, FR. *Y3L* (IVORY WHITE) (NOT AVAILABLE)

61100-081-680XL

Unavailable

9

COVER, FR. FENDER STAY (NOT AVAILABLE)

61102-063-000

Unavailable

10

METAL, FR. FENDER FIXING (UPPER) (NOT AVAILABLE)

61117-001-010

Unavailable

11

NUT, STEERING HEAD STEM (NOT AVAILABLE)

90301-044-000

Unavailable

12

WASHER, FR. FENDER SETTING

90556-044-000

Unavailable

13

BOLT, HEX. (8X45) This part replaces 93000-08045-0A.

93101-08045-0A

Unavailable

13

BOLT, HEX. (8X45)

93101-08045-0A

Unavailable

14

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.13

14

SCREW, PAN (6X16)

93500-06016-0A

$1.13

15

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$0.97

15

SCREW, FLAT (6X12)

93600-06012-0A

$0.97

16

NUT, HEX. (8MM)

94001-08000-0S

$1.31

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM)

94101-06800

Unavailable

18

WASHER, SPRING (8MM)

94111-08000

Unavailable

19

BALL, STEEL (#6) (3/16)

96211-06000

Unavailable
