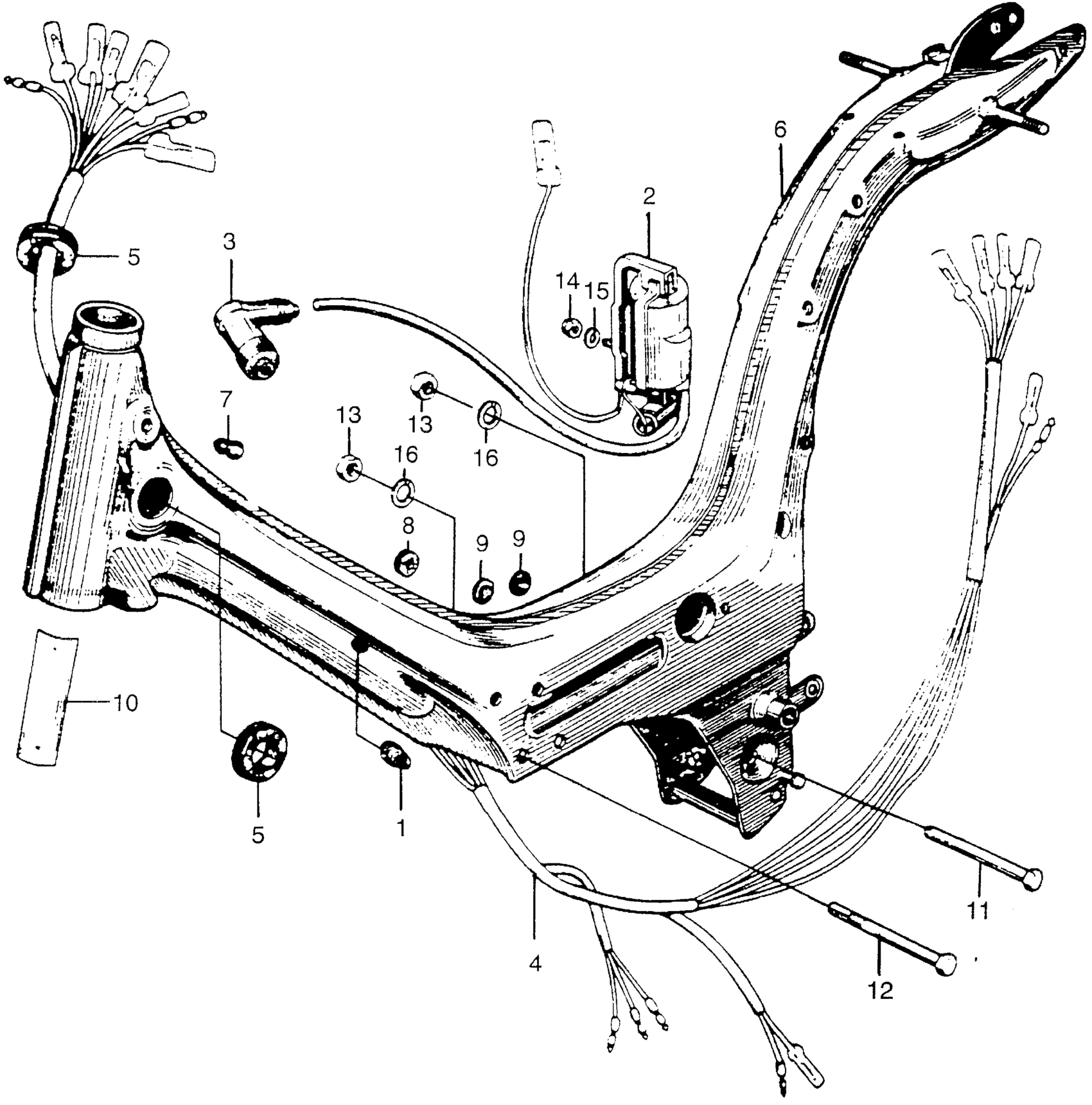

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 FRAME + WIRE HARNESS Diagram

#

Description
Price

1

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

2

COIL ASSY., IGNITION This part replaces 30500-063-004.

30500-063-405

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

30700-063-681

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-081-000

Unavailable

5

GROMMET, CABLE (NOT AVAILABLE)

32983-044-010

Unavailable

6

FRAME

50100-063-010Z

Unavailable

7

GROMMET, SCREW HOLE (NOT AVAILABLE)

50162-063-000

Unavailable

8

GROMMET, FEED TUBE

50163-063-000

$3.85

9

CAP, CHANGE CABLE HOLE (NOT AVAILABLE)

50164-063-000

Unavailable

10

PLATE, NAME (NOT AVAILABLE)

87125-253-680

Unavailable

11

BOLT, HEX. (8X80) This part replaces 92000-08080-0A.

92180-08080-0A

$2.50

11

BOLT, HEX. (8X80)

92180-08080-0A

$2.50

12

BOLT, HEX. (8X85) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08085-0A.

92101-08085-0A

Unavailable

12

BOLT, HEX. (8X85) (SOURCE: VINTAGE PARTS INC.)

92101-08085-0A

Unavailable

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

NUT, CAP (6MM)

94021-06020

$1.73

15

WASHER, SPRING (6MM)

94111-06000

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49
