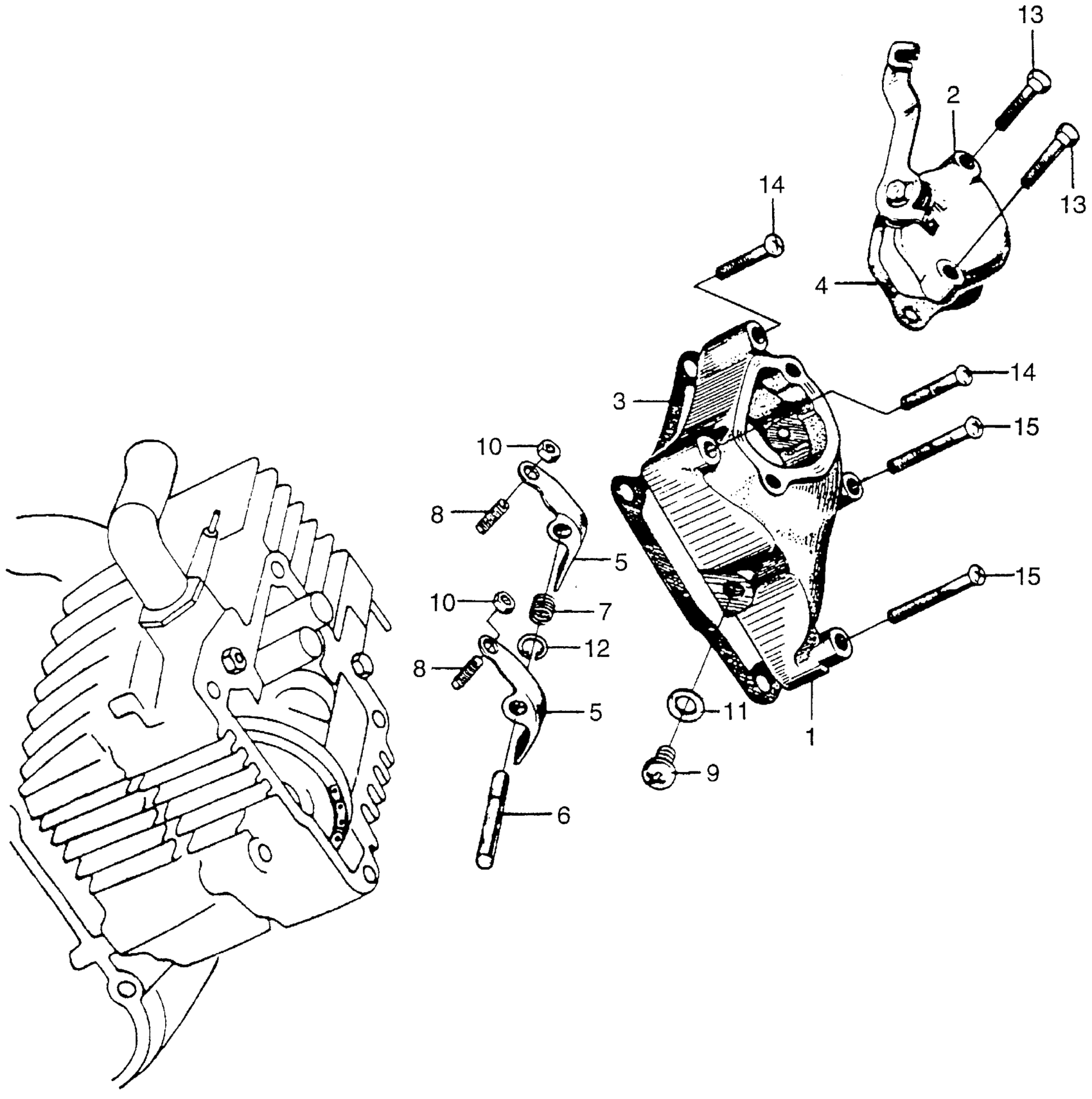

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-063-000

Unavailable

2

CAP, TAPPET ADJUSTING HOLE (NOT AVAILABLE)

12360-063-010

Unavailable

3

GASKET, CYL HD CVR This part replaces 12391-044-030.

12391-044-306

Unavailable

4

GASKET | Use from Engine SN 1008800 This part replaces 12401-044-020.

12401-044-306

Unavailable

4

GASKET, TAPPET CAP (NOT AVAILABLE) | Use up to Engine SN 1008799

12401-063-303

Unavailable

5

ARM, VALVE ROCKER (NOT AVAILABLE) This part replaces 14431-044-030.

14431-844-000

$22.31

5

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-844-000

$22.31

6

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-044-000

Unavailable

7

SPRING, ROCKER ARM SIDE (NOT AVAILABLE)

14481-044-000

Unavailable

8

SCREW, TAPPET ADJ. (NOT AVAILABLE)

90012-044-000

Unavailable

9

BOLT, SEALING (8MM) (NOT AVAILABLE)

90081-044-000

Unavailable

10

NUT, TAPPET ADJ.

90206-001-000

$1.66

11

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

11

GASKET, OIL PIPE JOINT This part replaces 90488-044-000.

90405-001-000

$1.89

12

CIRCLIP (6MM) This part replaces 90603-044-000.

90454-GB2-000

$1.79

13

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

13

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

13

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

13

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

14

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

14

SCREW, PAN (6X28)

93500-06028-0A

$1.49

15

SCREW, PAN (6X35)

93500-06035-0A

$1.49

15

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49
