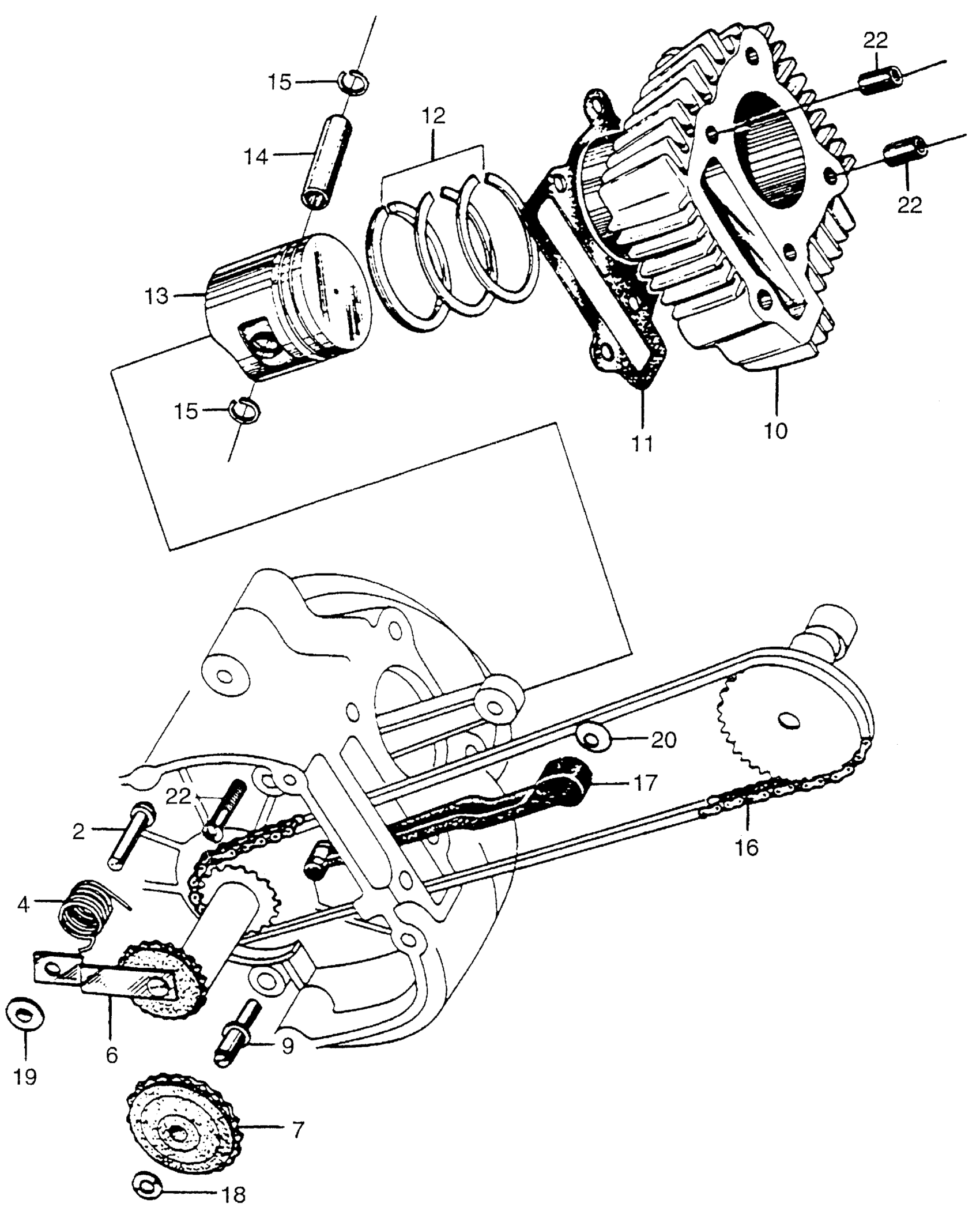

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 CYLINDER + CAM CHAIN TENSIONER Diagram

#

Description
Price

2

RIVET (4MM) (NOT AVAILABLE)

11116-063-310

Unavailable

4

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

11117-063-330

Unavailable

6

TENSIONER, CAM CHAIN (NOT AVAILABLE) | Use from Engine SN 1008606

11120-063-320

Unavailable

7

ROLLER, GUIDE (NOT AVAILABLE) | Use from Engine SN 1008606

11122-044-310

Unavailable

9

GUIDE, ROLLER PIN | Use from Engine SN 1008606

11141-063-300

Unavailable

10

CYLINDER

12101-063-010

Unavailable

11

GASKET, CYLINDER This part replaces 12191-044-000.

12191-044-306

Unavailable

11

GASKET, CYLINDER

12191-044-306

Unavailable

11

GASKET, CYLINDER This part replaces 12191-063-000.

12191-044-306

Unavailable

12

RING SET, PISTON (STD)

13010-044-000

Unavailable

13

PISTON (STD) (NOT AVAILABLE)

13101-044-030

Unavailable

14

PIN, PISTON

13111-044-010

Unavailable

15

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

15

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

16

CHAIN, CAM (NOT AVAILABLE)

14401-044-000

Unavailable

17

GUIDE, OIL (NOT AVAILABLE) | Use up to Engine SN 1008605

15420-044-060

Unavailable

17

GUIDE, OIL (NOT AVAILABLE) | Use from Engine SN 1008606

15420-063-000

Unavailable

18

WASHER | Use from Engine SN 1008606

90441-044-300

Unavailable

19

WASHER (4MM)

90445-063-300

Unavailable

20

WASHER B (10MM) (NOT AVAILABLE)

90458-044-000

Unavailable

21

SCREW, PAN (6X40) | Use from Engine SN 1008606 This part replaces 93500-06040.

93500-06040-0A

$1.49

21

SCREW, PAN (6X40) | Use from Engine SN 1008606

93500-06040-0A

$1.49

22

PIN A, DOWEL (8X14)

94301-08140

$2.25
