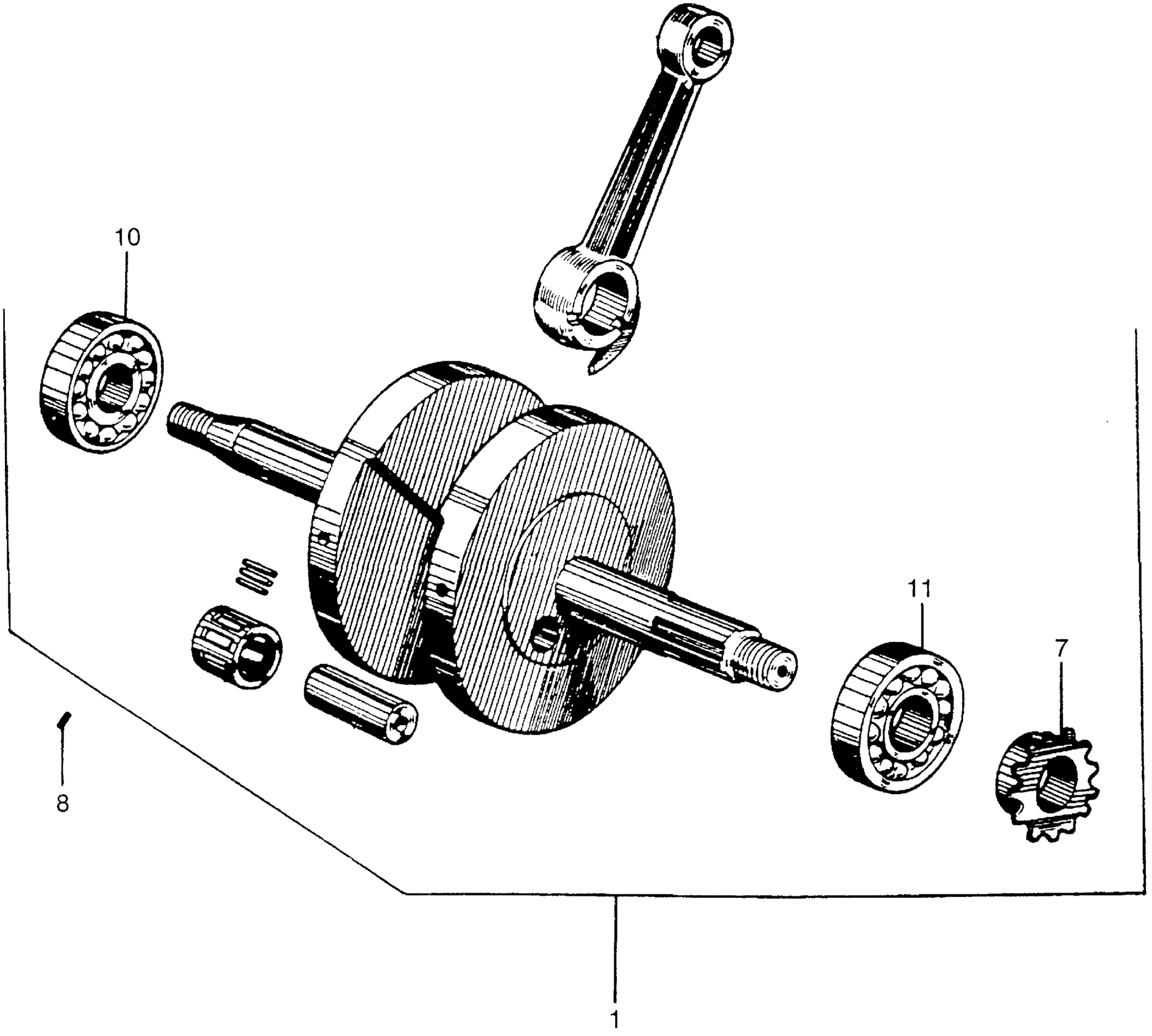

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY.

13000-063-020

Unavailable

7

SPROCKET, TIMING

14311-816-315

Unavailable

8

PIN, DOWEL (3X4) (NOT AVAILABLE) This part replaces 90741-044-000.

90741-122-000

Unavailable

8

PIN, DOWEL (3X4) (NOT AVAILABLE)

90741-122-000

Unavailable

10

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

10

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

11

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

11

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
