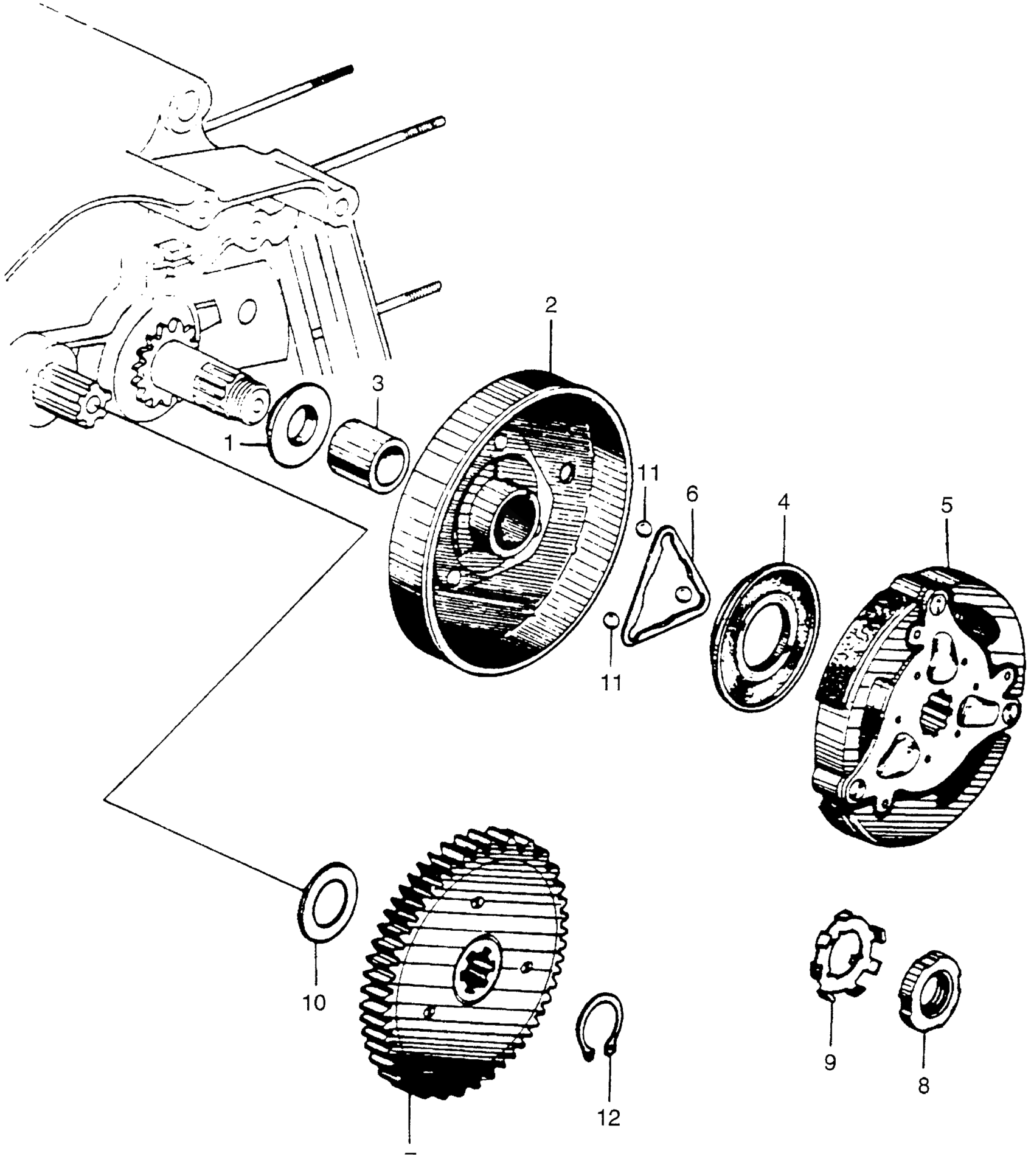

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 CLUTCH Diagram

COLLAR, TIMING SPROCKET DISTANCE (NOT AVAILABLE)

14315-044-010

Unavailable

CLUTCH (OUTER) (NOT AVAILABLE)

22100-063-000

Unavailable

GUIDE, CLUTCH CENTER

22131-044-020

Unavailable

DISK, CLUTCH FRICTION (NOT AVAILABLE)

22201-044-050

Unavailable

PLATE, DRIVE (NOT AVAILABLE)

22300-044-000

Unavailable

RETAINER, BALL (NOT AVAILABLE)

22802-044-000

Unavailable

GEAR, PRIMARY DRIVEN

23110-063-000

Unavailable

NUT, LOCK (14MM)

90231-KY4-900

$4.22

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

WASHER, LOCK (14MM) (NOT AVAILABLE)

90443-044-000

Unavailable

WASHER, THRUST (17MM)

90451-040-000

Unavailable

BALL, CLUTCH (NOT AVAILABLE)

90921-044-000

Unavailable

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49
