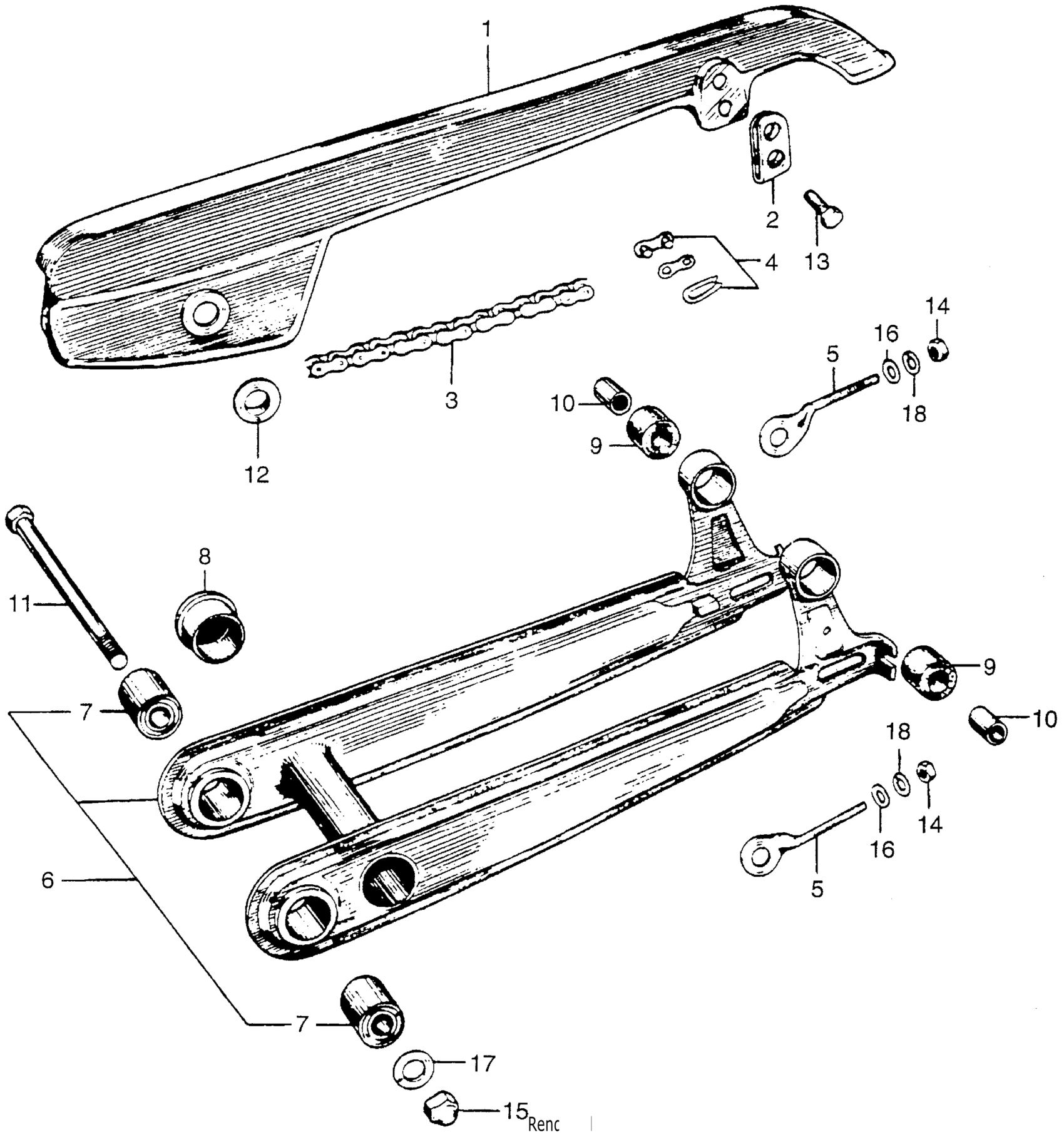

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 CHAIN CASE + SWINGARM Diagram

#

Description
Price

1

CASE, CHAIN *Y20* (CLOUD WHITE) (NOT AVAILABLE)

40510-063-000CH

Unavailable

2

NUT, CHAIN CASE

40512-063-000

Unavailable

3

CHAIN, DRIVE (98L) (NOT AVAILABLE)

40530-063-003

Unavailable

4

MASTER LINK

40531-063-003

Unavailable

5

ADJUSTER S, R. CHAIN This part replaces 40543-063-000.

95014-10010

$4.53

5

ADJUSTER S, R. CHAIN

95014-10010

$4.53

6

SWINGARM, RR.

52100-063-000Z

Unavailable

7

BUSH, RR. SWINGARM PIVOT RUBBER (NOT AVAILABLE)

52108-023-000

Unavailable

8

CAP *Y3L* This part replaces 52161-001-010XL.

52161-001-505

Unavailable

9

BUSH, RR. SHOCK ABSORBER RUBBER

52476-063-000

Unavailable

10

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-063-000

Unavailable

11

BOLT, SWINGARM PIVOT

90121-063-000

$16.64

12

WASHER, CHAIN CASE SETTING (NOT AVAILABLE)

90543-063-010

Unavailable

13

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

13

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, CAP (10MM)

94021-10020-0S

$2.08

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, PLAIN (10MM)

94101-10000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49
