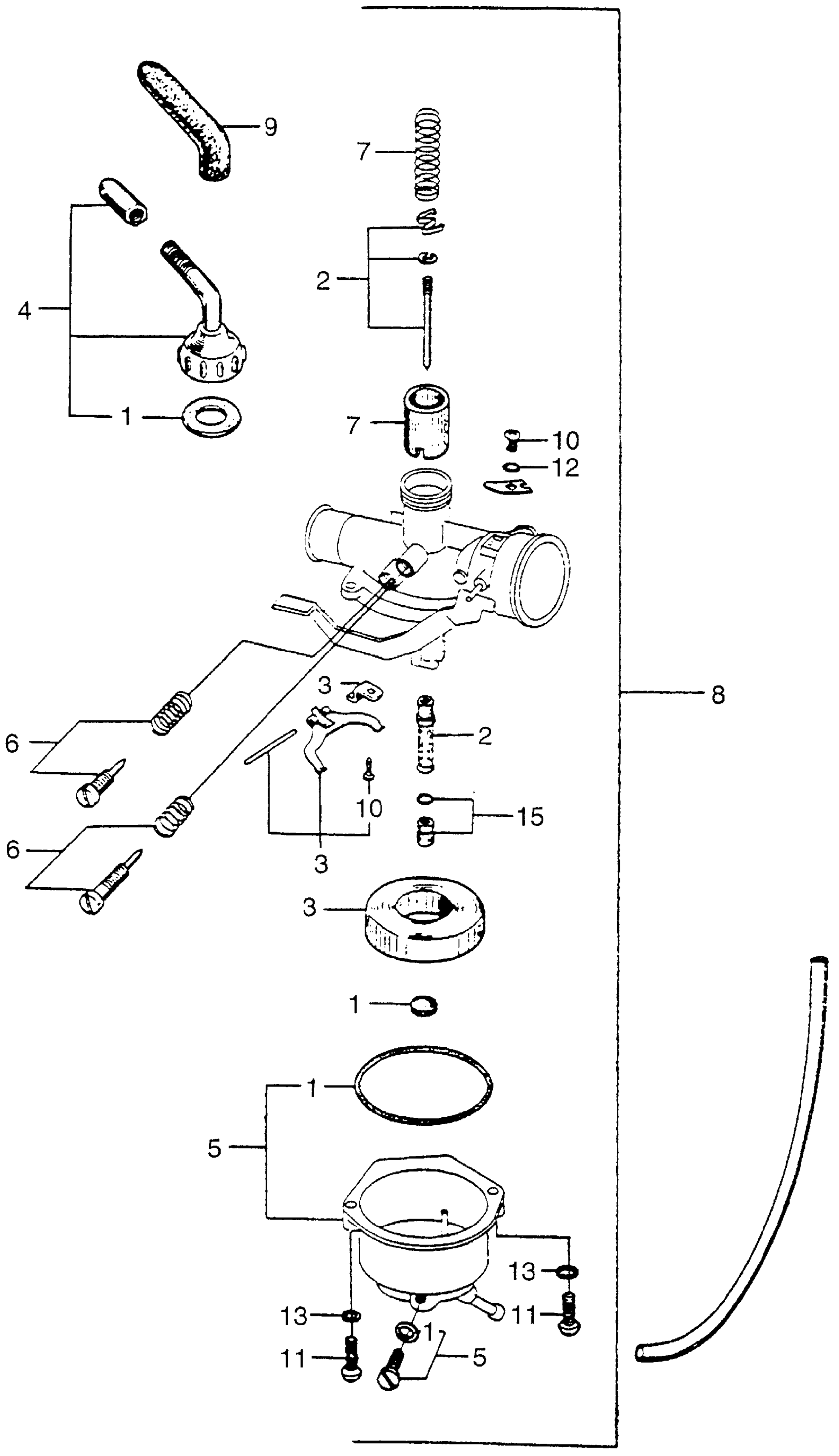

Honda PC50A MOTORCYCLE, JPN, VIN# PC50-1057918 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-063-004

Unavailable

2

NEEDLE SET, JET

16012-064-004

Unavailable

3

FLOAT SET (NOT AVAILABLE)

16013-064-004

Unavailable

4

TOP SET (NOT AVAILABLE)

16014-064-004

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-064-004

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-063-004

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-063-004

$12.52

8

CARBURETOR ASSY. (NOT AVAILABLE)

16100-063-004

Unavailable

9

CAP, RUBBER This part replaces 16194-063-004.

16194-063-014

Unavailable

9

CAP, RUBBER

16194-063-014

Unavailable

10

SCREW, PAN (3X5)

93500-03005-0A

$1.49

11

SCREW, PAN (4X12)

93500-04012-0A

$1.49

12

WASHER, SPRING (3MM)

94111-03000

$1.49

13

WASHER, SPRING (4MM)

94111-04000

$1.49

15

JET SET, MAIN (#55) (NOT AVAILABLE)

99201-063-0550

Unavailable
