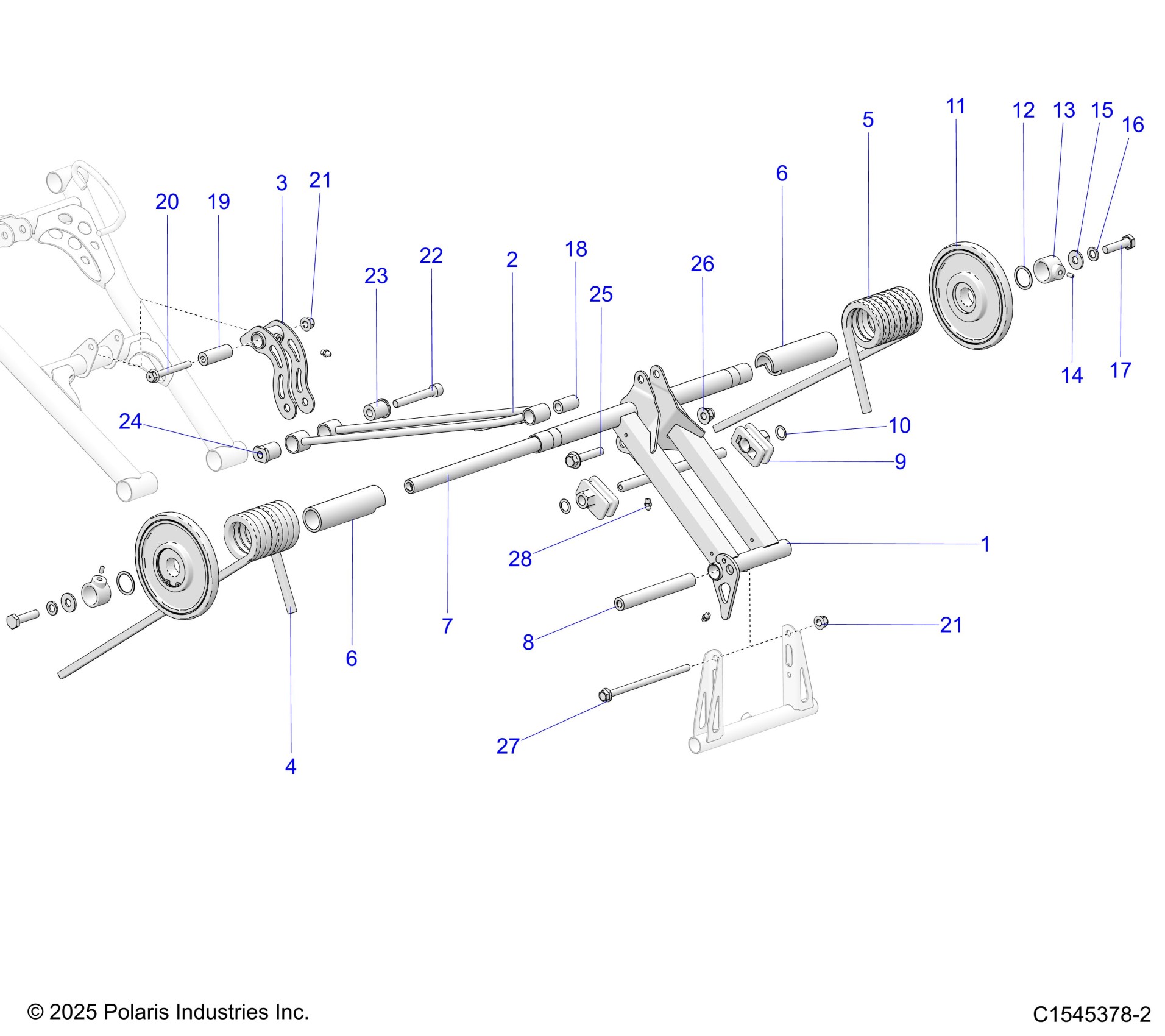

Polaris PATRIOT BOOST SWITCHBACK ASSAULT 146 (R01) - S26TLC8MS/TLR8MS SUSPENSION, TORQUE ARM, REAR - S26TLC8MS/TLR8MS (C1545378-1) Diagram

WELD-RTA ECOAT

1543511-329

$264.99

WELD-SHOCK ROD ECOAT

1543561-329

$102.21

PIVOT, SHOCK, E-COAT

1543515-329

$28.32

SPRG-TORSION.359SQ/77LH,ECOAT [STANDARD]

7041629-329

$113.32

SPRING-TORSION,.347SQ/77�LHBLK [OPTION]

7041627-067

$135.54

SPRG-TORS,.375SQ/77,LH,ECOAT [OPTION]

7041942-329

$117.37

SPRING-TORSION,.347/77�,RH,BLK [OPTION]

7041628-067

$135.54

SPRG-TORS,.375SQ/77,RH,ECOAT [OPTION]

7041943-329

$113.32

SPRG-TORSION.359SQ/77RH,ECOAT [STANDARD]

7041630-329

$113.32

SLEEVE-TORSION SPRING RMK

5434337

$7.99

SLEEVE-TORSION SPRING RMK

5434337

$7.99

SHAFT-19.05 X 391.414

5137223

$69.99

SHAFT-17.37X8.48X132.59 ANODZ

5337198

$28.32

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

CLIP-PUSH ON

7080394

$2.39

RET.RING-TRUARC

7718407

$4.79

BEARING

3514303

$11.99

ASM-WHL,CARRIER,LWT,PLAIN,5.62

1590539

$54.99

WASHER-SPRING #SSR-0125

7571605

$6.39

SPACER-.985X1.285X.868,NYLON

5135424

$19.99

SCR-10-24-3/8 SOC/SET-Y

7518262

$3.99

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

WSHR-M10,SPRING LOC ZPC

7556558

$2.39

SCR-HH,M10X40 10.9 ZPC P80

7519223

$3.99

BUSHING-M10X17.5X30

5137360

$3.99

BUSHING, RTS PIVOT

5140030

$7.99

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-SH-M10X1.5X70 12.9 ZOD P80

7520368

$6.39

BUSHING, RTS

5140273

$11.99

BUSHING, RTS, THREADED

5140274

$11.99

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

SCR-HXFL-M8X1.25X150 8.8 ZOD

7519200

$9.59

FITTING-LUBRICATION 1/4-28

7080424

$4.79
