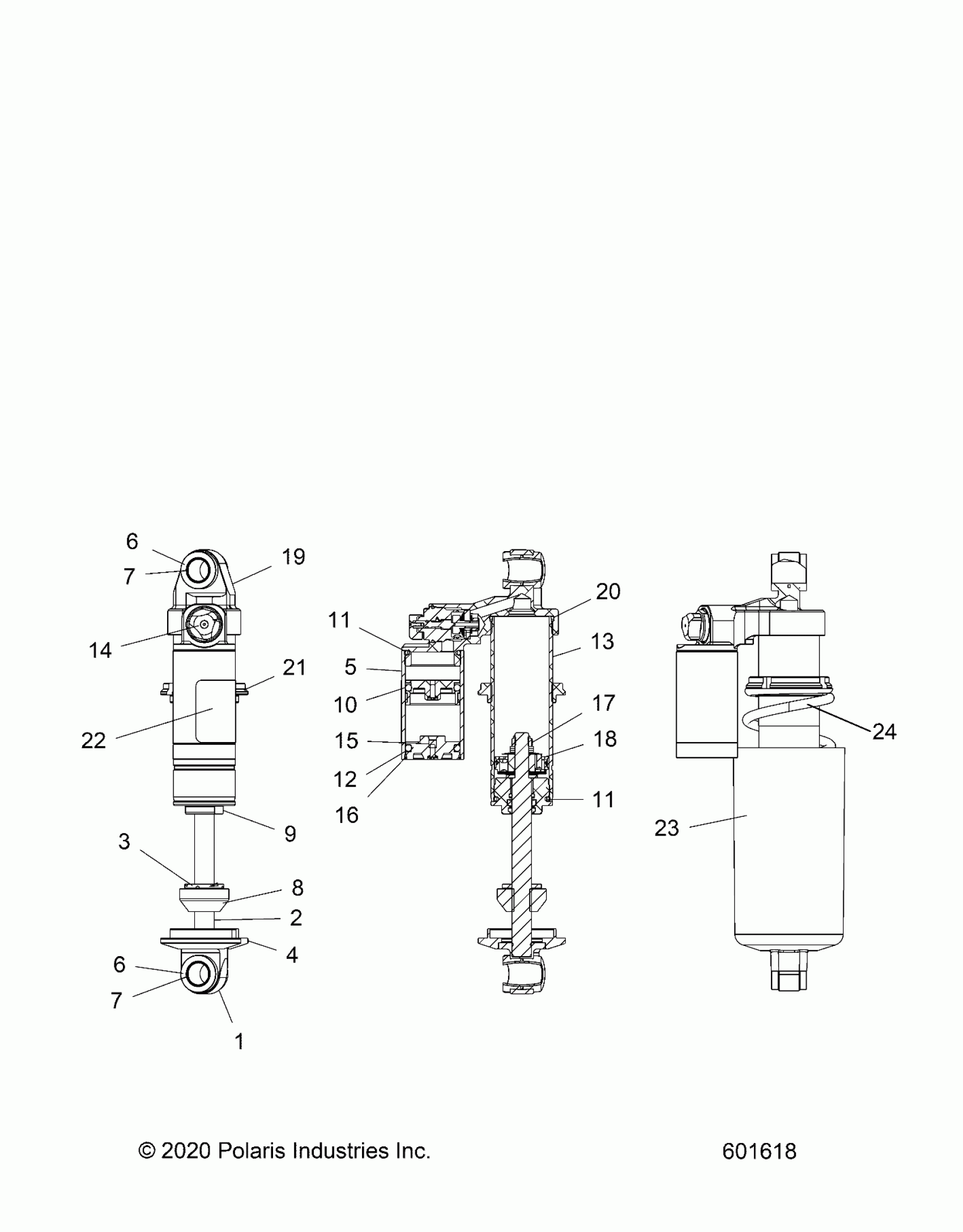

Polaris PATRIOT BOOST SWITCHBACK ASSAULT 146 (R01) - S26TLC8MS/TLR8MS SUSPENSION, SHOCK, FRONT TRACK - S26TLC8MS/TLR8MS (601618) Diagram

#

Description
Price

-

SHOCK-F/T W/E PIGGYBACK 2" [INCL. 1-22]

7045433

$654.99

1

LOOP-SHAFT, BLU ANO

1801088

$129.51

2

SHAFT, FT, SS

1800774

$150.06

3

SCRAPER, ICE, SHAFT

1800776

$28.32

4

RETAINER-SPRING CLIP, ANO BLUE

1800925

$39.99

5

BODY, RESERVOIR [NOT AVAILABLE]

-------

Unavailable

6

BUSHING

1800406

$5.65

6

BUSHING

1800406

$5.65

7

SLEEVE- 1.150L

1800405

$28.32

7

SLEEVE- 1.150L

1800405

$28.32

8

BUMP STOP, 1.58x.73

1800649

$43.56

9

ASM-SEAL HEAD 2.0

1801083

$141.65

10

IFP PISTON ASM 1.750, W- BLEED

1800739

$44.99

11

O-RING BODY LOOP

1800030

$2.02

11

O-RING BODY LOOP

1800030

$2.02

12

O-RING 2-324

1800184

$5.65

13

BODY, FT SHOCK, BLK

1800775

$164.99

14

SCREW, 4-40X.375SS

1800738

$1.49

14

ASM., ADJUSTER, HS-LS

1801021

$104.99

14

KNOB

1801053

$49.99

15

END CAP, RESERVOIR, 2"

1801006

$114.99

16

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

17

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

18

ASM-PISTON 7045433

1801161

$183.95

19

BODY LOOP, PB 2.0

-------

Unavailable

20

O-RING, 2-134

1800502

$1.99

21

SPRING ADJUSTER, BLUE

1801162

$82.29

22

DECAL [NOT AVAILABLE]

-------

Unavailable

23

SHIELD-SHOCK, W/E 2"

5452873

$28.32

24

SPRING-COMP 90/280#X8.1 2"MBLK

7045374-458

$62.92
