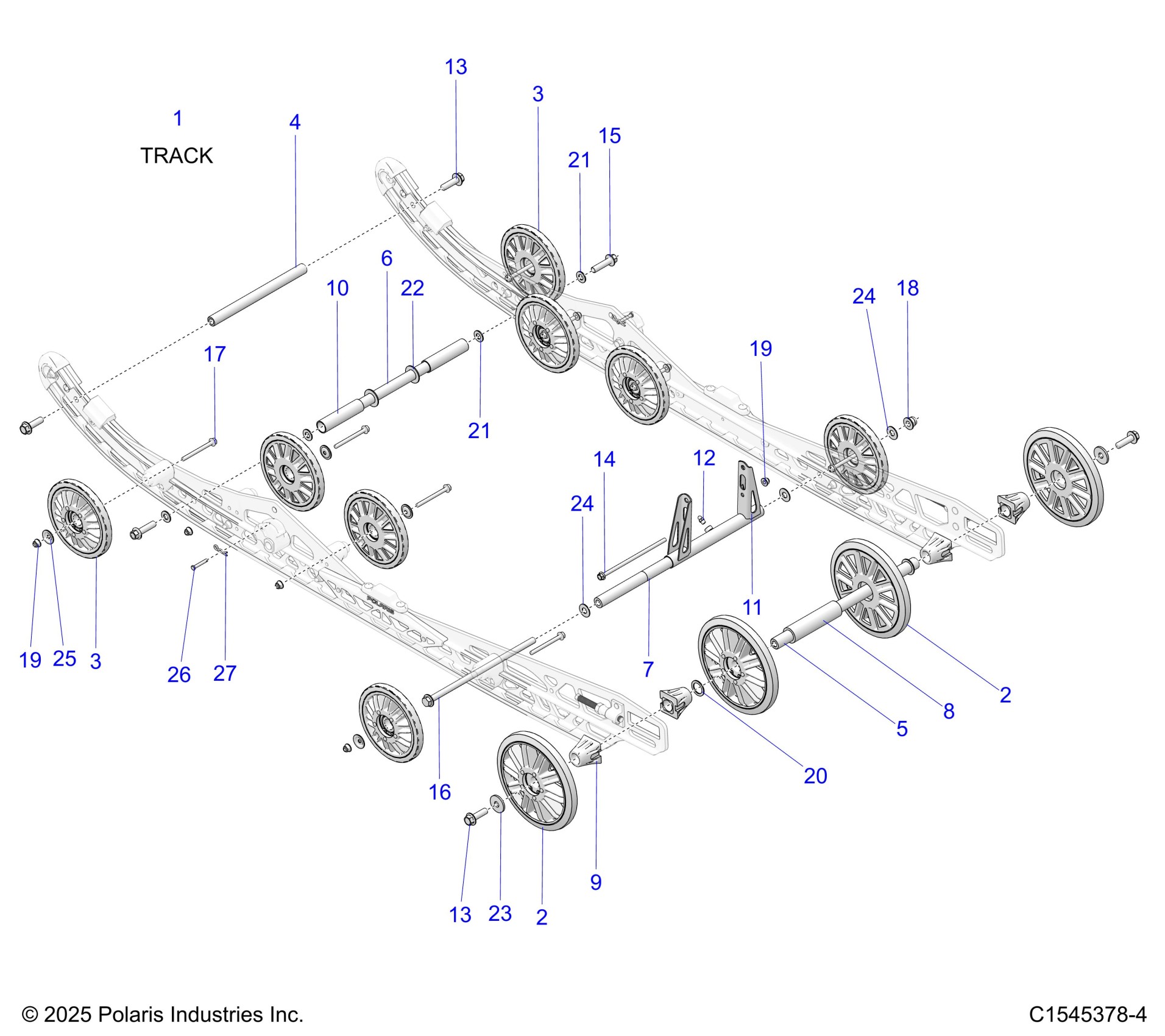

Polaris PATRIOT BOOST SWITCHBACK ASSAULT 146 (R01) - S26TLC8MS/TLR8MS SUSPENSION, REAR - S26TLC8MS/TLR8MS (C1545378-4) Diagram

#

Description
Price

1

TRACK-146"X2.0 CROSSOVER [2.0" TRACK OPTION]

5417325

$1,030.99

1

TRACK-15X146" 1.352" COBRA "R" [1.352" TRACK OPTION]

5418188

$927.99

1

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

1

CLIP-TRACK, FLAT

5251273

Unavailable

2

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

2

BEARING-.7874X1.6535X.4724,NTN

3514384

$19.84

2

RING-RETAINING

7710444

$8.79

2

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

2

BEARING-.7874X1.6535X.4724,NTN

3514384

$19.84

2

RING-RETAINING

7710444

$8.79

3

ASM-WHEEL SPOKED 5.62

1590632

$38.39

3

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

3

RING-RETAINING

7710444

$8.79

3

ASM-WHEEL SPOKED 5.62

1590632

$38.39

3

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

3

RING-RETAINING

7710444

$8.79

4

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$33.87

5

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$38.71

6

SHAFT-17.450X214.77

5137312

$33.87

7

SHAFT-CROSS, RMK

5137418

$32.37

8

SPACER-IDLER, CENTER

5333283

$19.99

9

SPACER-IDLER

5432535

$11.99

10

SPACER-SHOCK CENTERING LWT

5450477

$8.79

11

ARM, REAR PIVOT ARM, BLK

1544229-329

$52.60

12

FITTING-LUBRICATION 1/4-28

7080424

$4.79

13

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

13

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

14

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$19.99

15

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

16

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

17

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

19

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

20

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

21

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

21

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

22

WSHR-.719X1.250X.065-Y

7556210

$3.99

23

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

24

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

24

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

25

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

26

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

27

PIN-HITCH, 3/32-Y

7661644

$2.39
