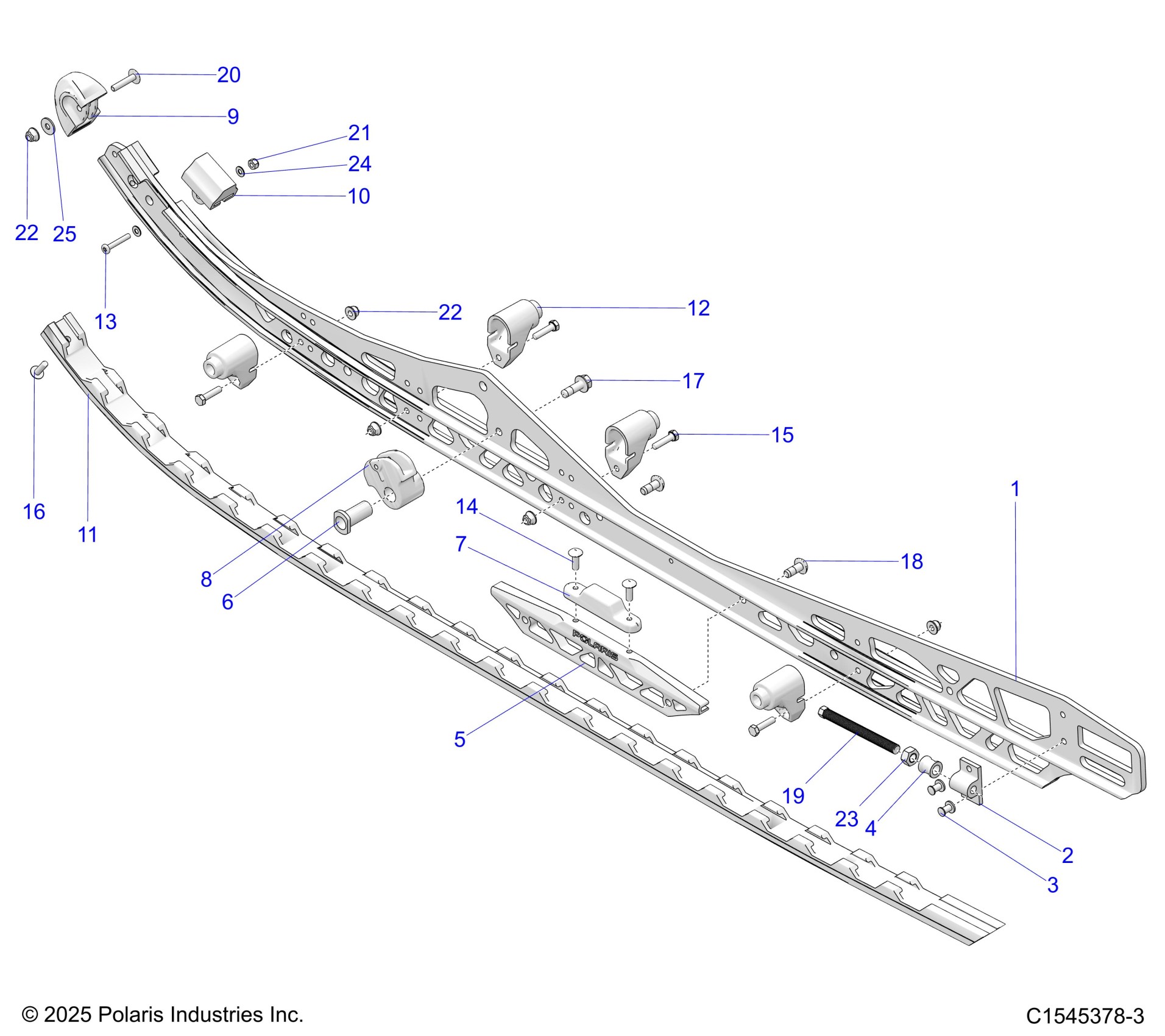

Polaris PATRIOT BOOST SWITCHBACK ASSAULT 146 (R01) - S26TLC8MS/TLR8MS SUSPENSION, RAIL BEAM LH/RH - S26TLC8MS/TLR8MS (C1545378-3) Diagram

#

Description
Price

1

ASM-RAIL 146 PREM SVC LH BLK [INCLUDES 2 & 3] [BLACK]

1544456-067

$664.99

1

ASM-RAIL 146 PREM SVC RH BLK [INCLUDES 2 & 3] [BLACK]

1544457-067

$664.99

1

ASM-RAIL 146 PREM SVC LH VELBL [INCLUDES 2 & 3] [VELOCITY BLUE]

1544456-689

$664.99

1

ASM-RAIL 146 PREM SVC RH VELBL [INCLUDES 2 & 3] [VELOCITY BLUE]

1544457-689

$664.99

1

ASM-RAIL 146 PREM SVC LH RED [INCLUDES 2 & 3] [INDY RED]

1544456-293

$664.99

1

ASM-RAIL 146 PREM SVC RH RED [INCLUDES 2 & 3] [INDY RED]

1544457-293

$664.99

1

ASM-RAIL 146 PREM SVC LH WHT [INCLUDES 2 & 3] [WHITE]

1544456-599

$664.99

1

ASM-RAIL 146 PREM SVC RH WHT [INCLUDES 2 & 3] [WHITE]

1544457-599

$664.99

1

ASM-RAIL 146 PREM SVC LH LFLM [INCLUDES 2 & 3] [LIFTED LIME]

1544456-801

$629.99

1

ASM-RAIL 146 PREM SVC RH LFLM [INCLUDES 2 & 3] [LIFTED LIME]

1544457-801

$629.99

2

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

3

RIVET-FLAT HD-1/4 X .575

7621501

$2.39

4

SPACER-IDLER ADJ ALUM

5141837

$8.99

5

PLATE-RAIL REINF BLK ANODIZED

5143395

$194.99

6

SHAFT-SPRING ROLLER

5144612

$10.51

7

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

8

GUIDE, SPRING, SQUARE

5434334

$28.32

9

CAP, RAIL TIP

5452441

$16.99

10

BUMPER, JOUNCE, FRONT

5522253

$8.89

11

HI-FAX-146 LWT BLK

5522358-070

$79.99

12

BLOCK-WHEEL MOUNT

5633278

$29.99

13

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

14

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

15

SCREW-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

16

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

17

SCR-HXFL-M8X1.25X25 10.9 ZOD P

7519739

$3.03

18

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

19

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

20

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

21

NUT-NYLOC 10-24 Y

7541925

$1.49

22

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

22

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

23

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

24

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

25

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22
