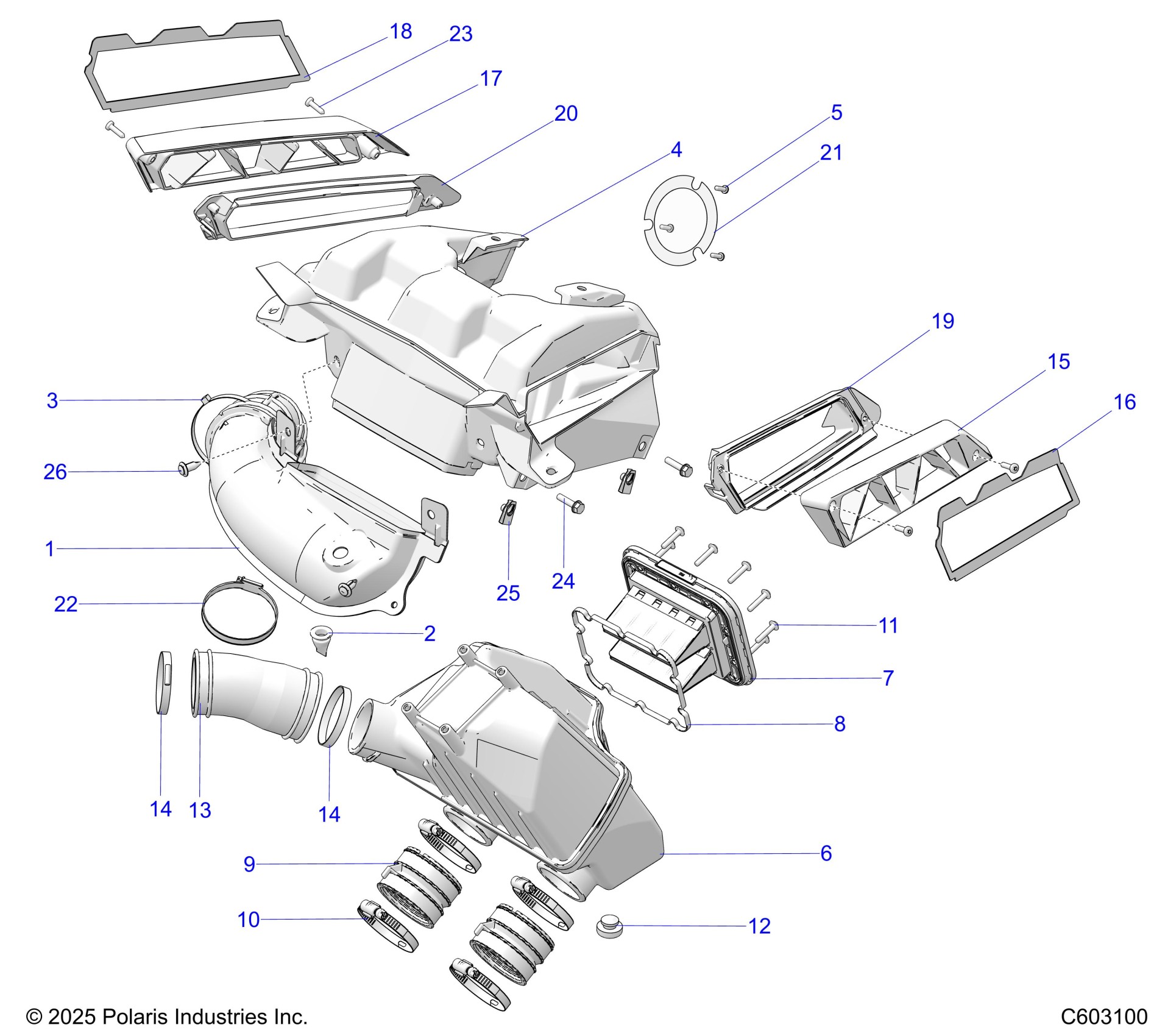

Polaris PATRIOT BOOST SWITCHBACK ASSAULT 146 (R01) - S26TLC8MS/TLR8MS ENGINE, AIR INTAKE SYSTEM - S26TLC8MS/TLR8MS (C603100) Diagram

#

Description
Price

1

ASM-TUBE INTAKE [INCLUDES 2 & 3]

1206270

$97.13

2

PLUG-DRAIN

5414472

$5.59

3

CLAMP-BAND,NARROW

7082797

$7.99

4

ASM-INTAKE [INCLUDES 5]

1208914

$145.22

5

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

6

ASM-REED VALVE/BOOST BOX [INCLUDES 6-11]

1208820

$564.99

6

ASM-BOOST BOX [BOX ONLY]

1208821

$164.99

7

ASM-VALVE REED,BOOST BOX [BOOST BOX ONLY]

1206300

$459.99

8

SEAL-REED VALVE, BOOST BOX

5418062

$7.99

9

ADAPTER-THROTTLE BODY

5418120

$36.41

10

CLAMP-NARROW,SLOTTED 60-75MM

7082606

$9.59

11

SCR-STS-PLUS KN6038,5X25-T25

7528030

$1.59

12

BUMPER-RUBBER

5412067

$3.99

13

TUBE-BOOST

5459026

$82.29

14

CLAMP, CONSTANT TENSION

7081413

$11.19

14

CLAMP, CONSTANT TENSION

7081413

$11.19

15

VENT-INTAKE LH

5456410

$32.37

16

SCREEN-INTAKE LH

5814970

$27.99

17

VENT-INTAKE RH

5456411

$32.37

18

SCREEN-INTAKE RH

5814971

$27.99

19

MOUNT-INTAKE LH

5458756

$13.75

20

MOUNT-INTAKE RH

5458757

$13.75

21

SCREEN-INTAKE BYPASS

5815374

$12.94

22

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

23

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

24

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

25

CLIP-"U",M6.0X1.0

7547366

$5.99

26

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49
