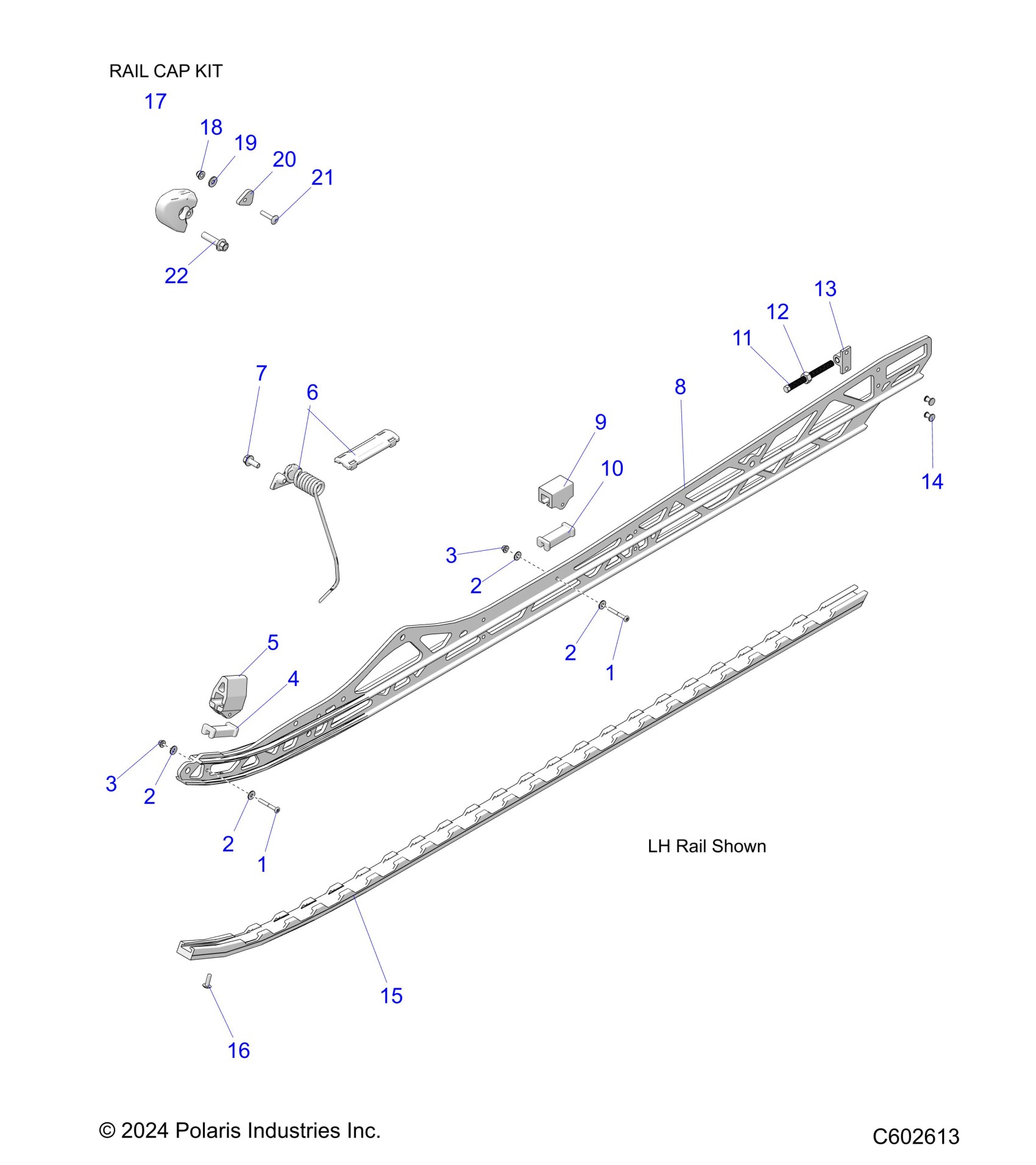

Polaris PATRIOT BOOST RMK PRO SLASH 165 ALL OPTIONS (R02) - S24TGM8MS SUSPENSION, RAIL BEAM MOUNTING, LH/RH - S24TGM8MS (C602613) Diagram

#

Description
Price

1

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

1

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

3

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

3

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

4

LINER, BUMPER,LOW PROFILE

5451787

$6.99

5

BUMPER, HOLLOW, TALL

5415327

$19.99

6

K-SCRATCHER RMK [PAIR] INCL. SPRINGS, MOUNTS, CAPS, AND SCREWS]

2890644

$109.99

7

SCREW-HXFL-M8X1.25X20 8.8 ZOD P3

7519133

$1.59

8

ASM-RAIL 165 SVC LH NAT [NATURAL OPTION][INCL. 13,14]

1545073-309

$544.99

8

ASM-RAIL 165 SVC RH NAT [NATURAL OPTION][INCL. 13,14]

1545074-309

$544.99

8

ASM-RAIL 165 SVC LH BLK [BLACK OPTION][INCL. 13,14]

1545073-067

Unavailable

8

ASM-RAIL 165 SVC RH BLK [BLACK OPTION][INCL. 13,14]

1545074-067

Unavailable

8

ASM-RAIL 165 SVC LH RED [RED OPTION][INCL. 13,14]

1545073-293

$809.99

8

ASM-RAIL 165 SVC RH RED [RED OPTION][INCL. 13,14]

1545074-293

$809.99

8

ASM-RAIL 165 SVC LH ORG [ORANGE OPTION][INCL. 13,14]

1545073-647

$809.99

8

ASM-RAIL 165 SVC RH ORG [ORANGE OPTION][INCL. 13,14]

1545074-647

$809.99

8

ASM-RAIL 165 SVC LH ISB [ISKY BLUE OPTION][INCL. 13,14]

1545073-737

$809.99

8

ASM-RAIL 165 SVC RH ISB [ISKY BLUE OPTION][INCL. 13,14]

1545074-737

$809.99

8

ASM-RAIL 165 SVC LH RAD GRN [RADIANT GREEN OPTION][INCL. 13,14]

1545073-887

$809.99

8

ASM-RAIL 165 SVC RH RAD GRN [RADIANT GREEN OPTION][INCL. 13,14]

1545074-887

$809.99

9

BUMPER, JOUNCE, REAR, COIL-OVER

5522056

$15.99

10

LINER-BUMPER

5432946

$9.70

11

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

12

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

13

BLOCK, IDLER BOLT ADJUSTABLE, METRIC

5139435

$15.99

14

RIVET

7621501

$2.39

15

HYFAX-165 LWT BLK [1 PER RAIL BEAM]

5526513-070

$52.60

16

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

17

K-SVC, RMK RAIL CAP INCL. RAIL CAP,18-22, INSTRUCTIONS

2212349

$35.19

18

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

SPACER-RAIL

-------

Unavailable

21

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

22

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79
