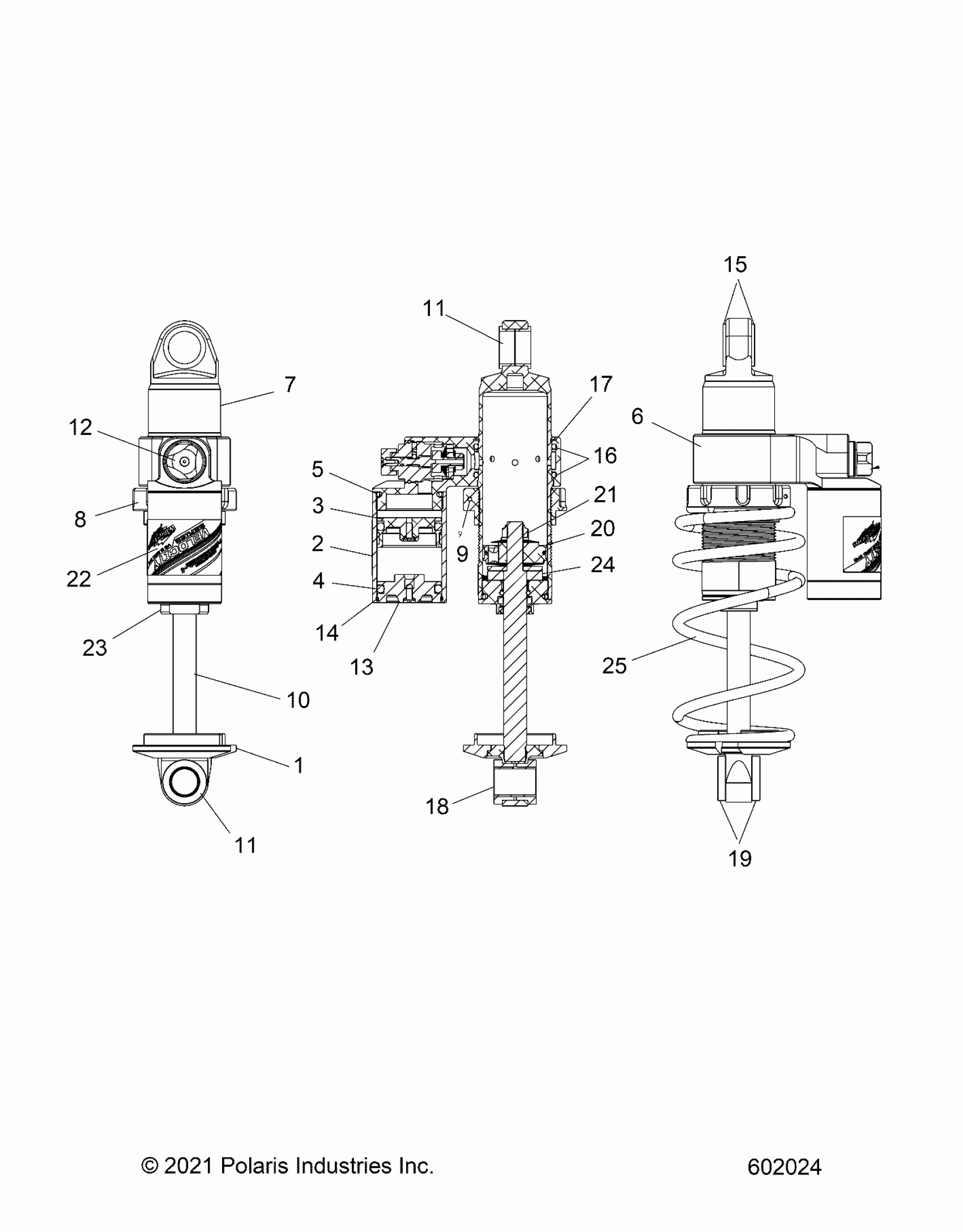

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R02) - S24TFM8MS SUSPENSION, SHOCK, FRONT TRACK, VELOCITY 7045536 - S24TFM8MS (602024) Diagram

#

Description
Price

-

SHOCK-FTS W/E VELOCITY LWT [INCL. 1-24]

7045536

$663.84

1

RETAINER-CLIP SPRING,BLK

1800925

$39.99

2

BODY-RESERVOIR, 2"

1801070

$119.99

3

ASM-PISTON, IFP 1.750

1801186

$64.99

4

O-RING 2-324

1800184

$5.65

5

O-RING BODY LOOP

1800030

$2.02

6

BRIDGE-2" HI-LO

-------

Unavailable

7

BODY-2" MIDMNT

1801072

$234.99

8

SPRING NUT- 2.0

1800936

$64.99

9

SCREW-M4

1801002

$3.99

10

SHAFT- .625DIA.

1801073

$154.99

11

SHAFT LOOP .625THD

1801074

$84.99

11

SHAFT LOOP .625THD

1801074

$84.99

12

ASM., ADJUSTER, HS-LS [ADJUSTER ASSEMBLY]

1801021

$104.99

12

KNOB

1801053

$49.99

12

SCREW, 4-40X.375SS

1800738

$1.49

12

O-RING, 2.0X24.5MM

1800680

$4.79

13

END CAP, RESERVOIR, 2"

1801006

$114.99

14

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

15

FLANGE BEARING

1800951

$24.27

16

O-RING, 2-226 1600018

1800863

$4.79

17

RETAINING RING 2.0 EXT

1801075

$24.27

18

SLEEVE- 1.150L

1800405

$28.32

19

BUSHING

1800406

$5.65

20

ASM-PISTON 7045536

1801202

$217.84

21

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

22

DECAL [NOT AVAILABLE]

-------

Unavailable

23

ASM-SEAL HEAD, SHORT

1801173

$109.99

24

SHAFT SPACER, .25"

1801205

$39.99

25

SPRING-COMP75/150#X6.35 2" MBK

7045538-458

$145.22
