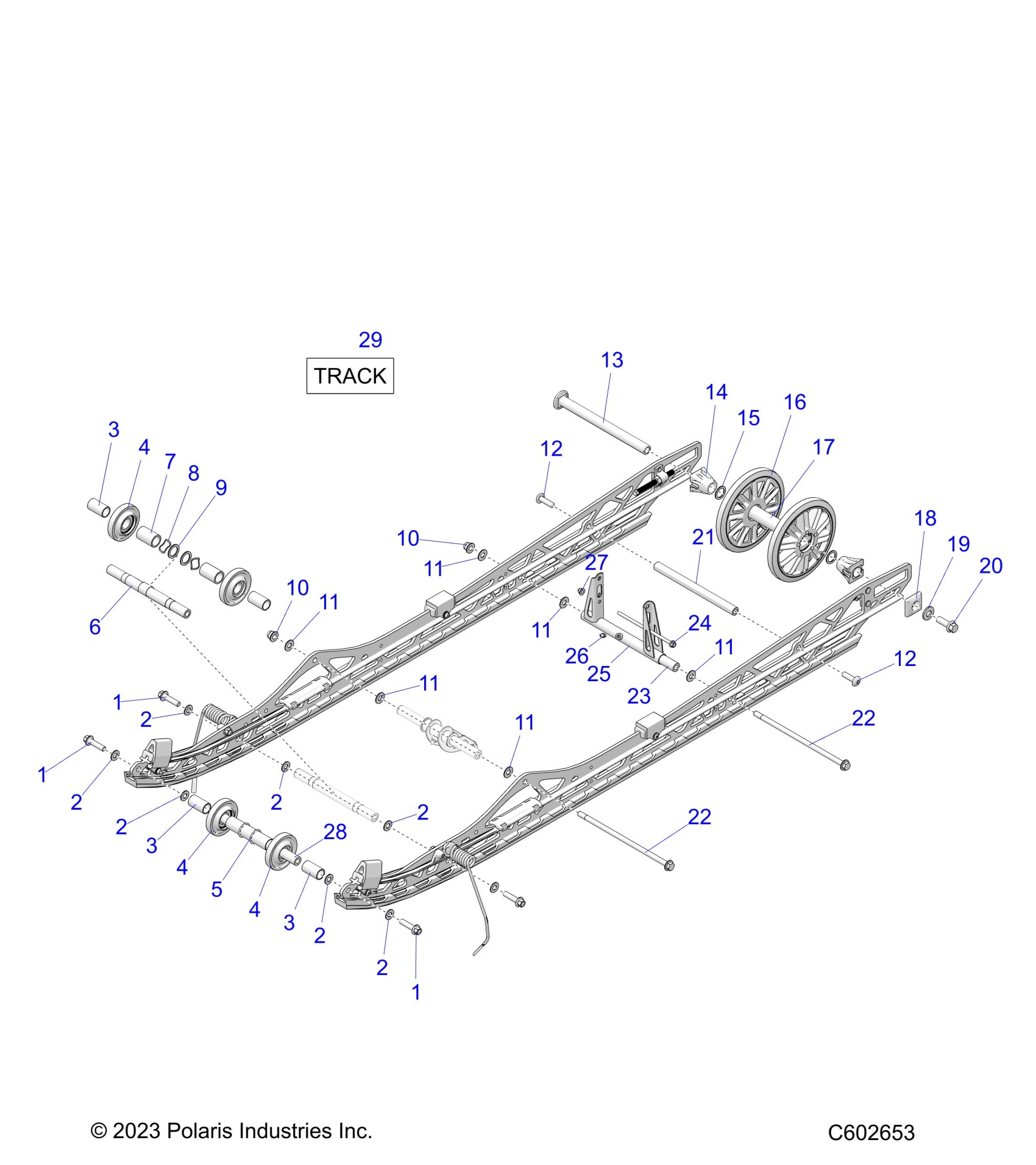

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R02) - S24TFM8MS SUSPENSION, REAR - S24TFM8MS (C602653) Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

3

SPACER, OUTSIDE

5454202

$3.19

3

SPACER, OUTSIDE

5454202

$3.19

3

SPACER, OUTSIDE

5454202

$3.19

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

4

Ring, Retaining 1 PER WHEEL

7710560

$8.79

4

BEARING 1 PER WHEEL

3514879

Unavailable

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

4

Ring, Retaining 1 PER WHEEL

7710560

$8.79

4

BEARING 1 PER WHEEL

3514879

Unavailable

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

4

Ring, Retaining 1 PER WHEEL

7710560

$8.79

4

BEARING 1 PER WHEEL

3514879

Unavailable

5

BUSHING-STRAP LIMITER CENTER SEE SUSPENSION, TORQUE ARM, FRONT

-------

Unavailable

6

ASM-CROSS SHAFT FTS

1543897

$79.99

7

SPACER, INSIDE

5454201

$3.19

8

WASHER-WAVE 7/8X1X.010

7555735

$3.99

9

WASHER-30MM ODX 21MM ID X 1.5

7556483

$3.99

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

12

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

13

SHAFT, IDLER, REAR

5139411

$129.99

14

SPACER-IDLER

5432535

$11.99

15

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

16

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

16

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

16

BEARING-.7874X1.6535X.4724,NTN [1 PER WHEEL]

3514384

$19.84

17

SPACER, IDLER, CENTER, LWT

5338618

$9.99

18

SPACER, IDLER

5436496

$6.39

19

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

20

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

21

SHAFT-CROSS MACH

5139172

$29.03

22

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

22

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

23

SHAFT-CROSS, RMK

5137418

$32.37

24

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$19.99

25

ARM, REAR PIVOT ARM, BLK

1544229-329

$52.60

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

28

SHAFT-ANTI STAB

5144946

$49.99

29

TRACK-155X2.75X3.5P, WW 2.75"

5418047

$1,547.99

29

TRACK-155X3.25X3.5P SERIES 9 3.25"

5418540

$1,749.99

29

CLIP-GUIDE 012-0116

5274790

Unavailable

29

CLIP-FLAT 012-0117

5274791

Unavailable
