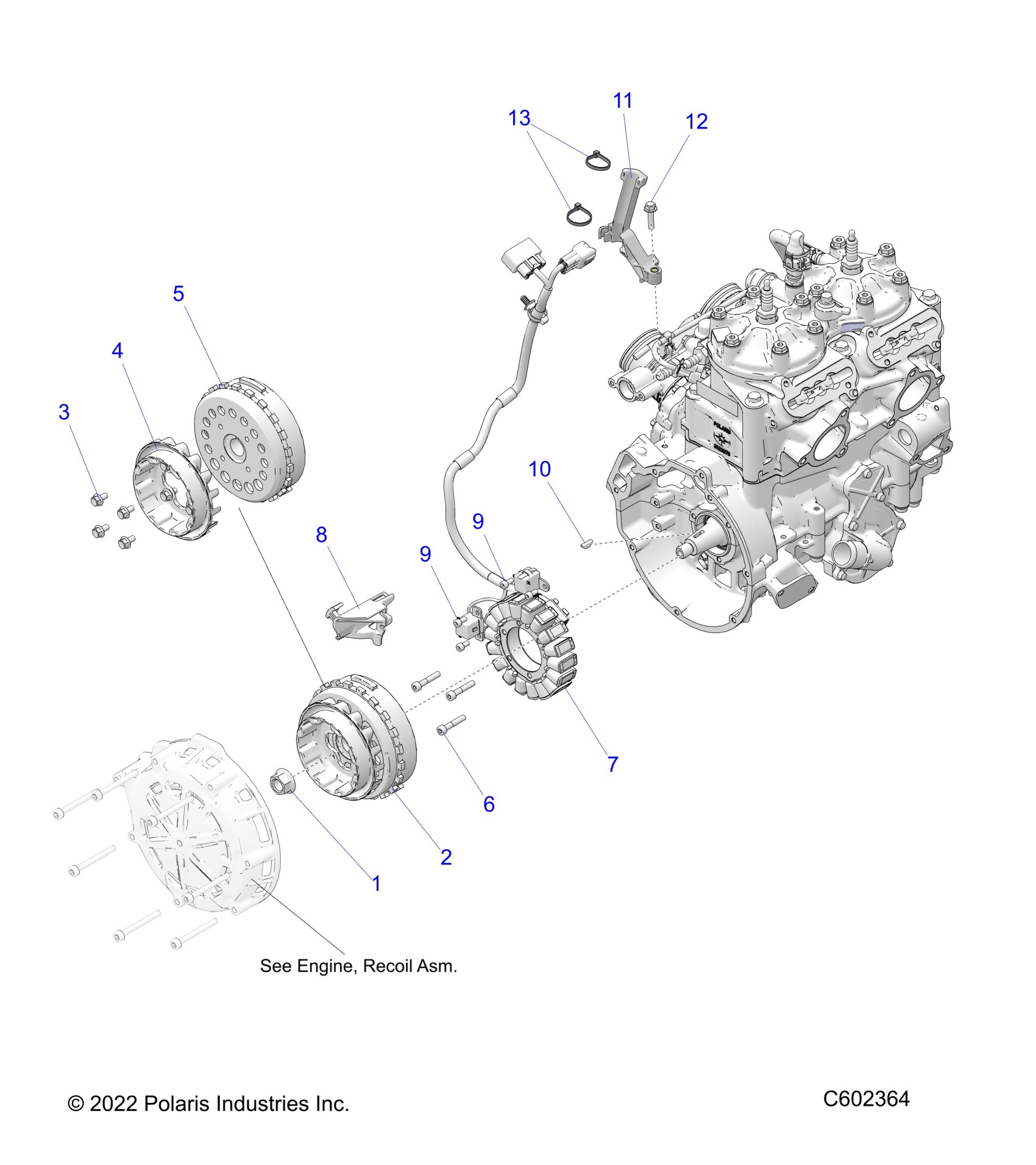

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R02) - S24TFM8MS ELECTRICAL, IGNITION SYSTEM - S24TFM8MS (C602364) Diagram

#

Description

Price

1

NUT-FLANGE,M14X1.50 -D

7518299

$4.79

2

ASM-FLYWHEEL/PULLEY [ORDER INDIVIDUAL COMPONENTS]

-------

Unavailable

3

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$3.99

4

PULLEY-STARTER,RECOIL

3023638

$64.99

5

FLYWHEEL-PBR,21T-3T

4019967

$469.99

6

SCR-M6X1.0X32,12.9,TORX

7520893

$8.79

7

STATOR-PBR,SNO,119MM

4017454

$514.99

8

RETAINER-STATOR WIRE

5455085

$12.79

9

SCR-M5X0.8X10 SOC/CP-D

7517847

$3.19

9

SCR-M5X0.8X10 SOC/CP-D

7517847

$3.19

10

KEY-WOODRUFF, METRIC #505

7721117

$24.99

11

RETAINER-STATOR WIRE

5458243

$23.99

12

SCR-HXFL-M6X1.0X25 8.8 ZPB

7517751

$7.19

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
