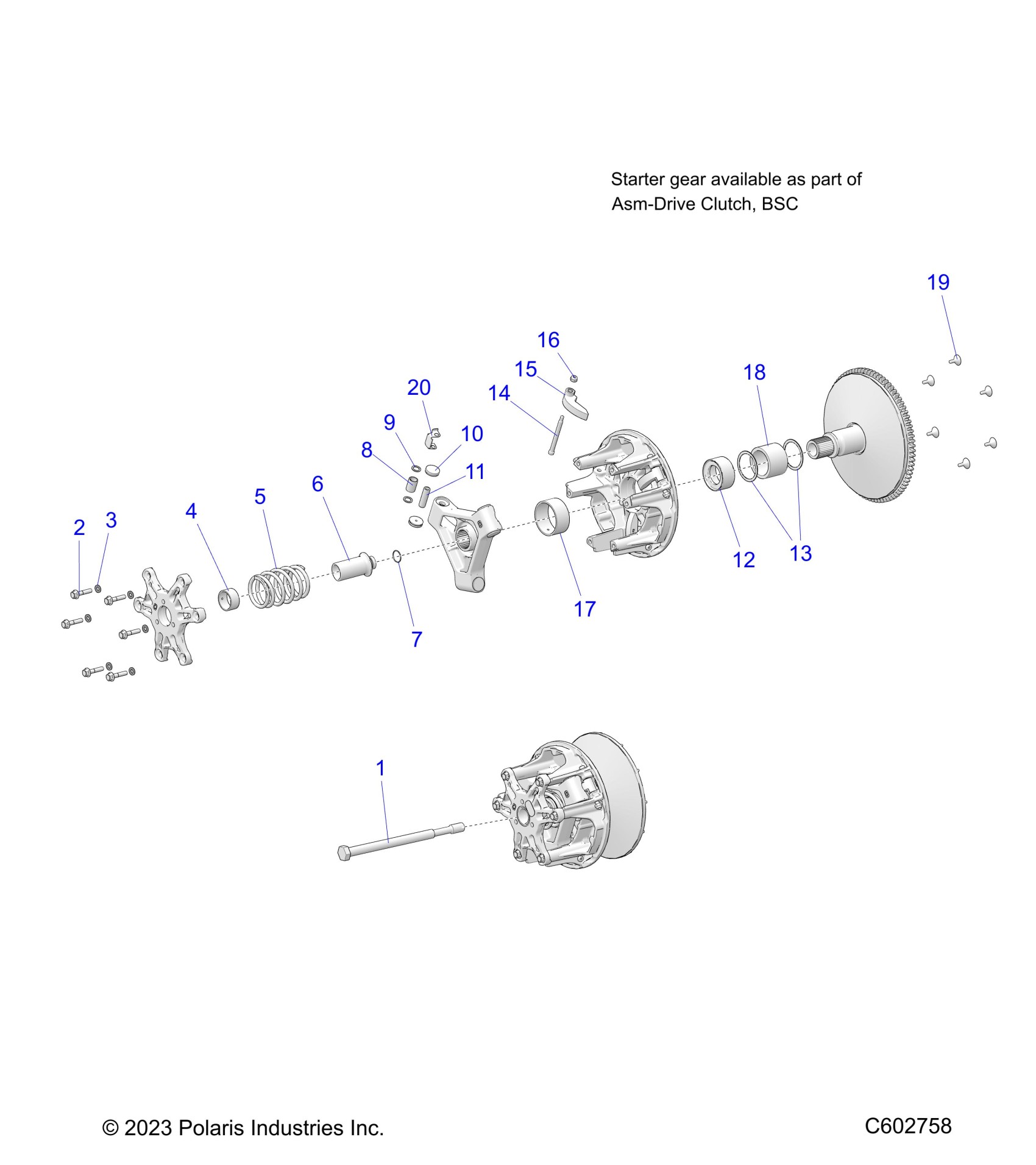

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R02) - S24TFM8MS DRIVE TRAIN, CLUTCH, PRIMARY - S24TFM8MS (C602758) Diagram

ASM-DRIVE CLUTCH BSC P22 ES [E.S.][INCL. 2-4,6-14,16-20]

1327449

Unavailable

ASM-DRIVE CLUTCH BSC P22 [NON E.S.][INCL. 2-4,6-14,16-18,20]

1327448

Unavailable

SCR-SH-M14X1.5X180 10.9 SPC ND

7528304

$34.99

SCR-M6X1.0X35,HX/FL-Y/D

7521304

$3.19

WSHR-6.4X12.0X1.6 Z

7556088

$4.79

BUSHING-1.13X1.28X0.63,MU

3515173

$6.39

SPRING-CLUTCH DRIVE 165/310

7045965

$56.65

POST-CLUTCH,OUTER,O-RING,RADI

5144854

$28.32

O-RING 1.0X17.5MM,90A

5418306

$2.38

ASM-SPIDER ROLLER,P90X [INCLUDES ROLLER AND BUSHING]

1323717

$32.37

WASHER-CLUTCH,SPIDER ROLLER

5453844

$1.59

BUTTON,CLUTCH,.75

5438863

$8.08

PIN-SPIDER

5143585

$4.03

SPACER-PILOT, CLUTCH P22

5145271

$49.99

WSHR-CLUTCH,40.5X49X0.8,SP-21

7557071

$16.99

BOLT-SHIFT WEIGHT,BUSHED

7520585

$5.59

ASM-WEIGHT SHIFT (14-76) HIGH ELEVATION SETUP

1327226

$44.43

ASM-WEIGHT SHIFT (14-80) LOW ELEVATION SETUP

1327228

$44.43

NUT-10-24-FLEX LOC-Z

7541906

$3.19

BUSHING-50X55X25,MU

3515174

$12.79

BEARING-NEEDLE,40X50X35

3515043

$31.99

SCR-SHFL-5/16-18X0.625 GR5 ZY3 [E.S. ONLY]

7515351

$3.99

BRKT-WEAR CLIP WEIGHT

5272362

$5.65
