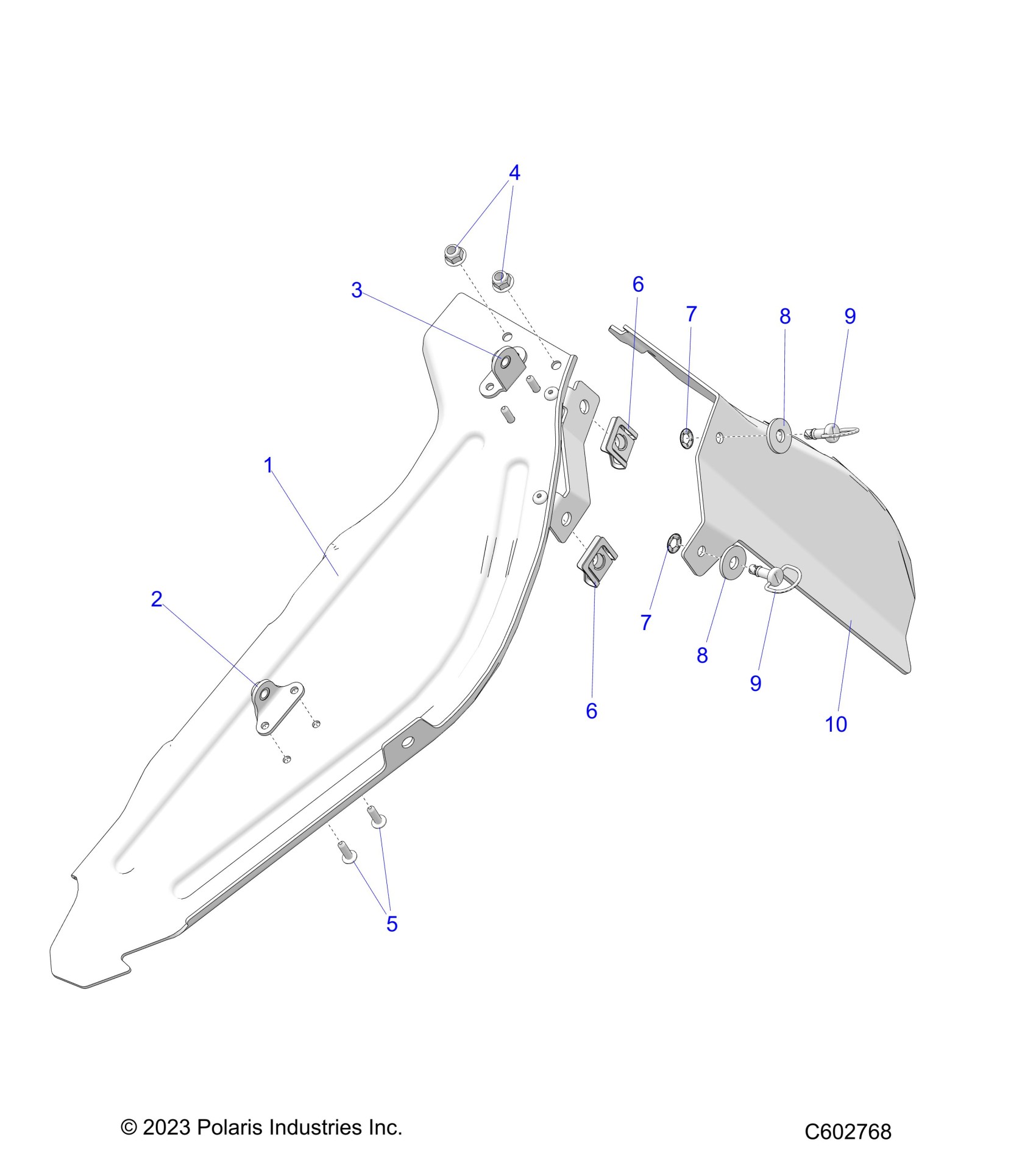

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R02) - S24TFM8MS CHASSIS, CLUTCH GUARD ASM. AND SHIELD - S24TFM8MS (C602768) Diagram

#

Description
Price

1

ASM-GUARD CLUTCH [INCL. 2,3,5]

1029063

$89.99

2

ASM-BRKT OIL BOTTLE FRONT

1025803

Unavailable

3

ASM-BRKT OIL BOTTLE REAR

1025804

Unavailable

4

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

5

RIVET-3/16-.090-.290

7661637

$1.49

6

CLIP-1/4 TURN 6MM

7710808

$5.99

6

CLIP-1/4 TURN 6MM

7710808

$5.99

7

RETAINER, 1/4 TURN 6MM

7710807

$1.49

7

RETAINER, 1/4 TURN 6MM

7710807

$1.49

8

WASHER-.327X.875X.090,FL-Y

7555960

$3.99

8

WASHER-.327X.875X.090,FL-Y

7555960

$3.99

9

STUD-1/4 TURN 6MMX16MM

7662246

$12.99

9

STUD-1/4 TURN 6MMX16MM

7662246

$12.99

10

SHIELD-DRIVEN RMK

5275217

$54.99
