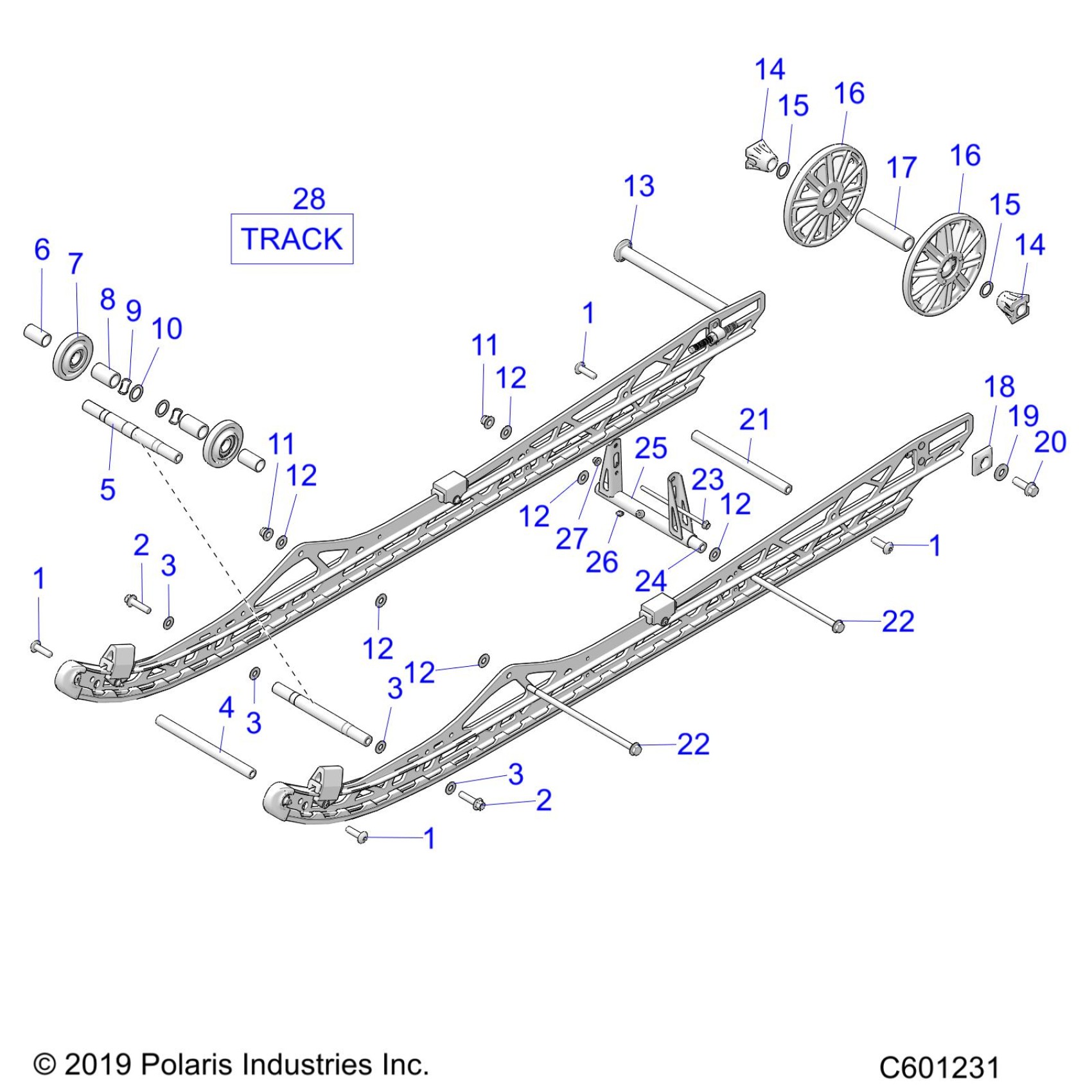

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R01) - S23TFM8MS SUSPENSION, REAR 3" TRACK OPTION - S23TFM8MS (C601231) Diagram

#

Description
Price

1

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

1

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

1

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

1

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

2

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

2

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

3

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

3

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

3

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

4

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$33.87

5

ASM-CROSS SHAFT FTS

1543897

$79.99

6

SPACER-OUTSIDE

5454202

$3.19

7

Ring, Retaining [1PER WHEEL]

7710560

$8.79

7

BEARING [1PER WHEEL]

3514879

Unavailable

7

ASM-WHL,BOGIE,LWT,3.06

1597838

Unavailable

8

SPACER-INSIDE

5454201

$3.19

9

WASHER-WAVE 7/8X1X.010

7555735

$3.99

10

WASHER-30MM ODX 21MM ID X 1.5

7556483

$3.99

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

13

SHAFT-IDLER REAR

5139411

$129.99

14

SPACER-IDLER

5432535

$11.99

14

SPACER-IDLER

5432535

$11.99

15

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

15

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

16

BEARING [1 PER WHEEL]

3514384

$19.84

16

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

16

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

16

BEARING [1 PER WHEEL]

3514384

$19.84

16

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

16

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

17

SPACER-IDLER, CENTER LWT

5338618

$9.99

18

SPACER-IDLER

5436496

$6.39

19

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

20

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

21

SHAFT-CROSS

5139172

$29.03

22

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

22

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

23

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$19.99

24

SHAFT, CROSS

5137418

$32.37

25

ARM, REAR PIVOT, BLACK

1544229-329

$52.60

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

28

CLIP-TRACK, FLAT

5251273

Unavailable

28

TRACK-155 X 3 SERIES 7 [3" TRACK MODEL ONLY]

5415393

$1,705.99

28

CLIP-TRACK, SHORT GUIDE 012-0113

5268856

Unavailable
