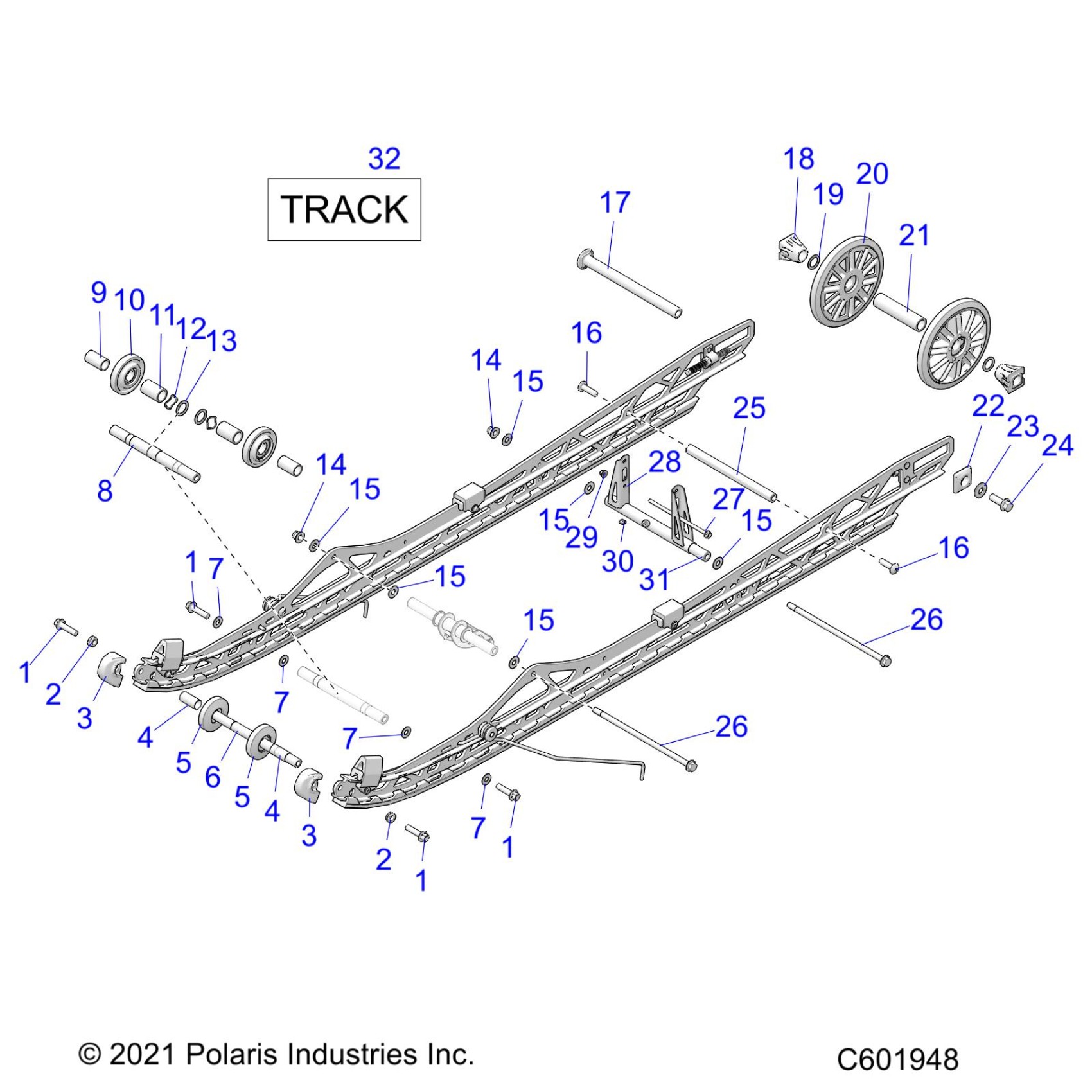

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R01) - S23TFM8MS SUSPENSION, REAR, 2.75" TRACK OPTION - S23TFM8MS (C601948) Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

2

SPCR-MACH,17X8.15X10.5 ID

5144351

$5.22

2

SPCR-MACH,17X8.15X10.5 ID

5144351

$5.22

3

CAP-RAIL TIP

5458955

$9.70

3

CAP-RAIL TIP

5458955

$9.70

4

SPCR-19.05X38.17X.35WALL

5144352

$5.70

4

SPCR-19.05X38.17X.35WALL

5144352

$5.70

5

ASM-WHL,BOGIE,66.68MM

1597840

$29.99

5

BEARING-6003 LLU

3515837

$8.79

5

RING-RETAINING,35MM ID

7718433

$3.99

5

ASM-WHL,BOGIE,66.68MM

1597840

$29.99

5

BEARING-6003 LLU

3515837

$8.79

5

RING-RETAINING,35MM ID

7718433

$3.99

6

SFT-M10X1.5,17.5 ODX220.1L

5144353

$44.99

7

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

7

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

7

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

7

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

8

ASM-CROSS SHAFT FTS

1543897

$79.99

9

SPACER-OUTSIDE

5454202

$3.19

10

ASM-WHL,BOGIE,LWT,3.06

1597838

Unavailable

10

BEARING [1PER WHEEL]

3514879

Unavailable

10

Ring, Retaining [1PER WHEEL]

7710560

$8.79

11

SPACER-INSIDE

5454201

$3.19

12

WASHER-WAVE 7/8X1X.010

7555735

$3.99

13

WASHER-30MM ODX 21MM ID X 1.5

7556483

$3.99

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

16

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

16

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

17

SHAFT-IDLER REAR

5139411

$129.99

18

SPACER-IDLER

5432535

$11.99

19

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

20

ASM-WHEEL,SPOKE,7.25,6004

1590459

$47.99

20

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

20

BEARING [1 PER WHEEL]

3514384

$19.84

21

SPACER-IDLER, CENTER LWT

5338618

$9.99

22

SPACER-IDLER

5436496

$6.39

23

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

24

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

25

SHAFT-CROSS

5139172

$29.03

26

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

26

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

27

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$19.99

28

ARM, REAR PIVOT ARM, BLK

1544229-329

$52.60

29

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

31

SHAFT, CROSS

5137418

$32.37

32

TRACK-155X2.75X3.5P, WW

5418047

$1,547.99

32

CLIP-GUIDE 012-0116

5274790

Unavailable

32

CLIP-FLAT 012-0117

5274791

Unavailable
