- PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R01) - S23TFM8MS
CHASSIS, BULKHEAD ASM. - S23TFM8MS (C601972)

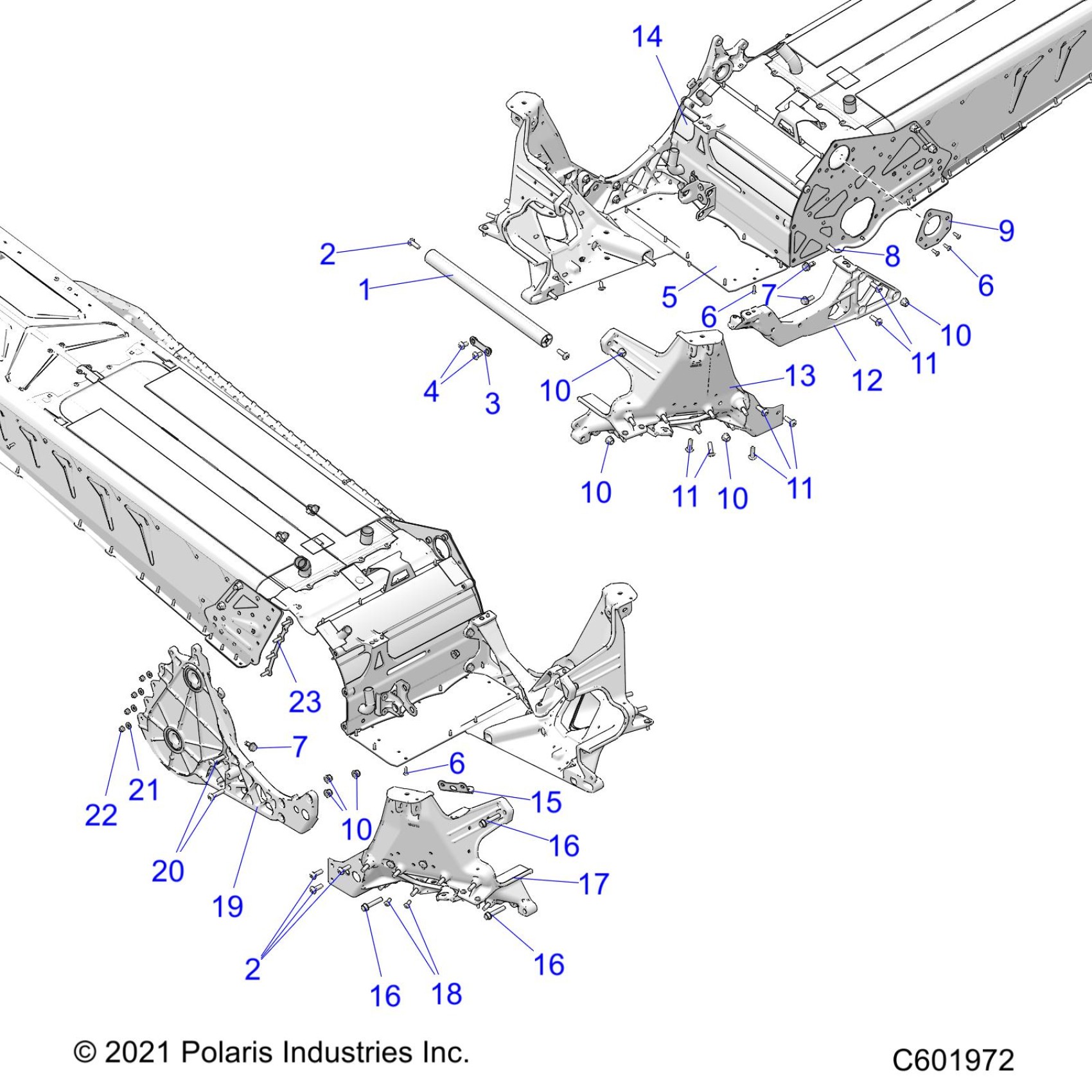

Polaris PATRIOT BOOST RMK PRO SLASH 155 ALL OPTIONS (R01) - S23TFM8MS CHASSIS, BULKHEAD ASM. - S23TFM8MS (C601972) Diagram
#
Description
Price
-
KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
2204400
$74.99
-
KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
2204171
$294.99
-
KIT, LORD, MIX NOZZLES, 12 PIECE
2204172
$4.99
1
TUBE-CROSSOVER, EXTRUDED
5140781
$106.49
2
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
2
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
3
ASM-NUT PLATE M8 47MM
1020829
$15.99
4
SCR-TXTH-M8X1.25X15 8.8ZOD P80
7519109
$1.59
5
FLOOR, BULKHEAD
5256849
$29.03
6
RIVET-3/16-.090-.290
7661637
Unavailable
6
RIVET-3/16-.090-.290
7661637
Unavailable
6
RIVET-3/16-.090-.290
7661637
Unavailable
7
SCR-HXFL-M8X1.25X20 8.8 ZY3P80
7527899
$2.39
7
SCR-HXFL-M8X1.25X20 8.8 ZY3P80
7527899
$2.39
8
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$4.99
9
FLANGETTE-3BOLT 0MM OFFSET
5258020
$12.79
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
11
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
11
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
11
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
12
ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. DOWEL PINS]
1023784
$139.99
12
PIN-DOWEL,M6X10
5136879
Unavailable
13
ASM., CLIP W/STUD RMK LH [INCL. STUDS][REQUIRES ADHESIVE]
1023155
$354.99
13
STUD
7519204
$19.99
14
ASM-COOLER BULKHEAD [INCLUDES DOWEL]
1244616
$474.99
14
PIN-DOWEL,M6X10
5136879
Unavailable
15
ASM-BRKT IDLER TOP
1026546
$24.27
16
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$1.59
16
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$1.59
16
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$1.59
17
ASM-CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]
1023783
$319.99
17
STUD-WHEEL M8X1.25X48
7519204
$19.99
18
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$3.99
19
ASM-BACKER BELT 197.70MM [REQUIRES ADHESIVE][INCL. BRNGS., RET RING]
1336930
$309.99
19
BEARING
3514308
Unavailable
19
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
20
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$7.19
21
WASHER-6.2X14.25X2 ZC
7556588
$2.39
22
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$2.39
23
ASM., STUD PLATE
1020066
$16.99
