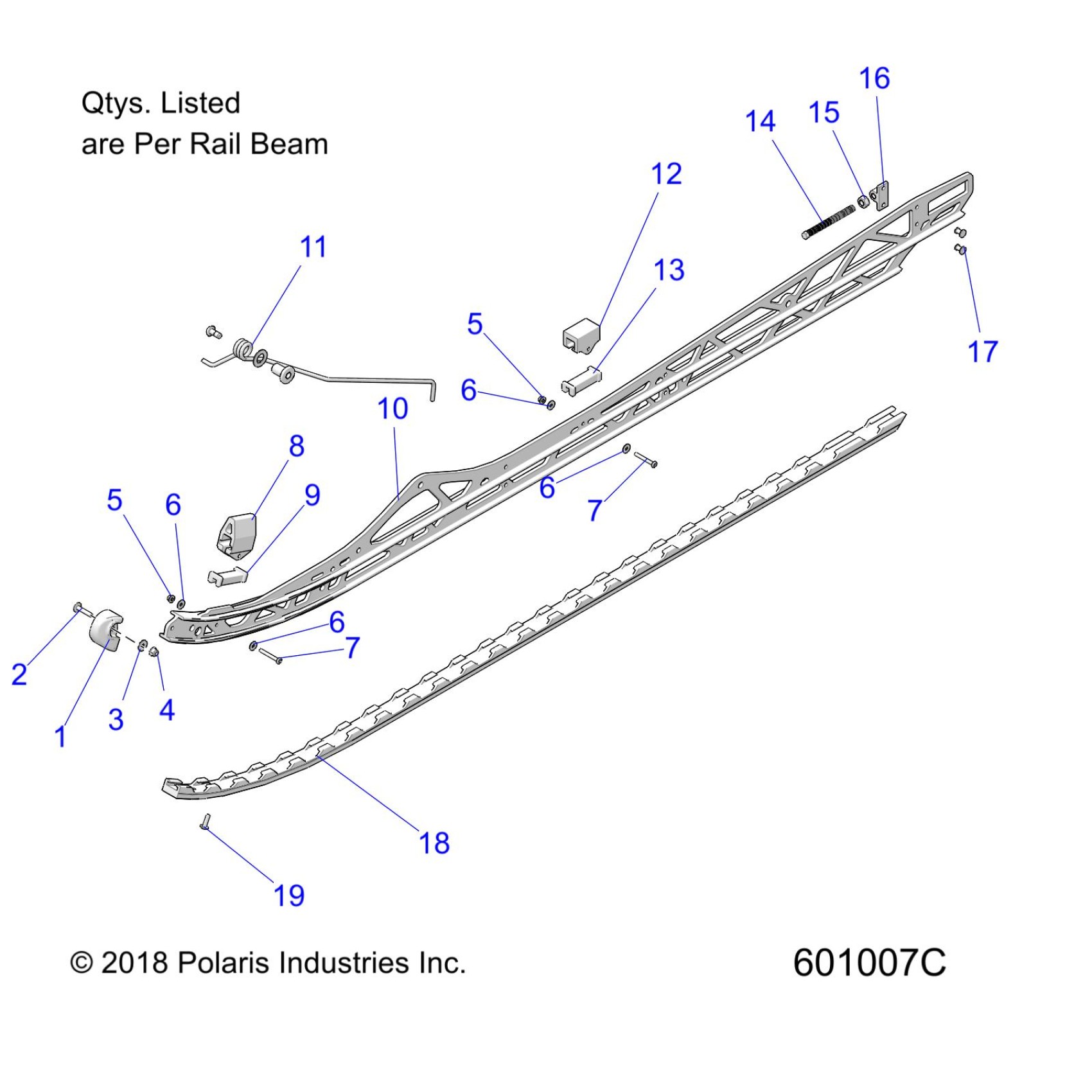

Polaris PATRIOT BOOST RMK KHAOS SLASH 165/163 ALL OPTIONS (R01) - S23TGG8MS/TGY8MS SUSPENSION, RAIL BEAM MOUNTING, LH/RH, 163"/3" TRACK - S23TGY8MS (601007C) Diagram

CAP, RAIL TIP

5452441

$16.99

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

BUMPER, HOLLOW, TALL

5415327

$19.99

LINER, BUMPER,LOW PROFILE

5451787

$6.99

ASM-RAIL,BSC C-OVER 163,LH NAT [COLOR OPTION][INCL. 16,17]

1544408-309

$454.99

ASM-RAIL,BSC C-OVER163,RH NAT [COLOR OPTION][INCL. 16,17]

1544409-309

$454.99

ASM-RAIL,BSC C-OVER 163,LH BLK [BLACK OPTION][INCL. 16,17]

1544408-067

$769.99

ASM-RAIL,BSC C-OVER163,RH GBLK [BLACK OPTION][INCL. 16,17]

1544409-067

$769.99

ASM-RAIL,BSC C-OVER163,LH IRED [RED OPTION][INCL. 16,17]

1544408-293

$548.72

ASM-RAIL,BSC C-OVER163,RH IRED [RED OPTION][INCL. 16,17]

1544409-293

$548.72

ASM-RAIL,BSC C-OVER 163,LH ORG [ORANGE OPTION][INCL. 16,17]

1544408-647

$769.99

ASM-RAIL,BSC C-OVER163,RH ORG [ORANGE OPTION][INCL. 16,17]

1544409-647

$769.99

ASM-RAIL,BSC C-OVER 163 LH VBL [VELOCITY BLUE OPTION][INCL. 16,17]

1544408-689

Unavailable

ASM-RAIL,BSC C-OVER 163 RH VBL [VELOCITY BLUE OPTION][INCL. 16,17]

1544409-689

Unavailable

ASM-RAIL,BSC C-OVER 163,LH LLM [LIFTED LIME OPTION][INCL. 16,17]

1544408-801

$548.72

ASM-RAIL,BSC C-OVER163,RH LLM [LIFTED LIME OPTION][INCL. 16,17]

1544409-801

$548.72

K-SCRATCHER, HOLTZ, AXYS [PAIR]

2882028

$109.99

BUMPER, JOUNCE, REAR, COIL-OVER

5522056

$15.99

LINER-BUMPER

5432946

$9.70

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

BLOCK, IDLER BOLT ADJUSTABLE, METRIC

5139435

$15.99

RIVET

7621501

$2.39

HIFAX-163 LWT BLK [1 PER RAIL]

5522232-070

$52.60

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
