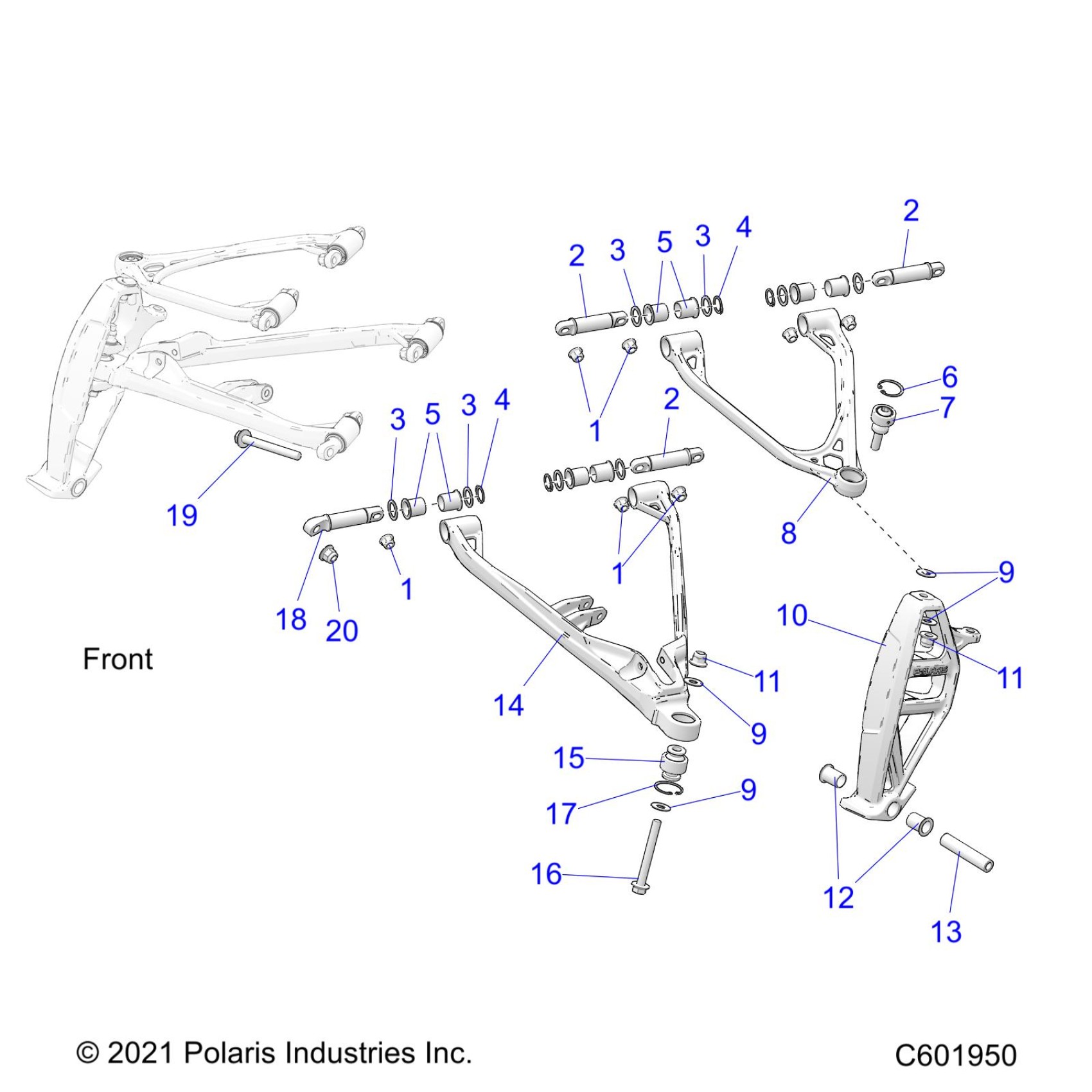

Polaris PATRIOT BOOST RMK KHAOS SLASH 165/163 ALL OPTIONS (R01) - S23TGG8MS/TGY8MS SUSPENSION, CONTROL ARMS, and SPINDLE - S23TGG8MS/TGY8MS (C601950) Diagram

#

Description
Price

1

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

1

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

1

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

2

SHAFT-PIVOT GROOVED

5140556

$34.99

2

SHAFT-PIVOT GROOVED

5140556

$34.99

2

SHAFT-PIVOT GROOVED

5140556

$34.99

3

WASHER

7556959

$1.49

3

WASHER

7556959

$1.49

3

WASHER

7556959

$1.49

3

WASHER

7556959

$1.49

4

RING-RETAINING,18MM ID

7710786

$1.60

4

RING-RETAINING,18MM ID

7710786

$1.60

5

BUSHING-PIVOT SHORT

5454428

$3.99

5

BUSHING-PIVOT SHORT

5454428

$3.99

6

RING-RET INT 1.125"

7710642

$2.39

7

BALL JOINT-M10X1.25X31 30 DEG

7061219

$69.99

8

ASM-UPPER CONTROL ARM, NRW LH, NATURAL [INCL. 2-7][COLOR OPT.]

1824654-309

$224.99

8

ASM-UPPER CONTROL ARM, NRW RH, NATURAL [INCL. 2-7][COLOR OPT.]

1824655-309

$224.99

8

ASM-UPPER CONTROL ARM, NRW LH, BLK [INCL. 2-7][COLOR OPT.]

1824654-067

$224.99

8

ASM-UPPER CONTROL ARM, NRW RH, BLK [INCL. 2-7][COLOR OPT.]

1824655-067

$224.99

9

WASHER

7556545

$3.19

9

WASHER

7556545

$3.19

9

WASHER

7556545

$3.19

10

ASM-SPINDLE RMK FORG LH [INCL. 12][COLOR OPT.]

1824649

$256.57

10

ASM-SPINDLE RMK FORG RH [INCL. 12][COLOR OPT.]

1824650

$256.57

10

ASM-SPINDLE RMK FORG LH BLK [INCL. 12][COLOR OPT.]

1824649-067

$256.57

10

ASM-SPINDLE RMK FORG RH BLK [INCL. 12][COLOR OPT.]

1824650-067

$256.57

10

ASM-SPINDLE RMK FORG LH IRED [INCL. 12][COLOR OPT.]

1824649-293

$256.57

10

ASM-SPINDLE RMK FORG RH IRED [INCL. 12][COLOR OPT.]

1824650-293

$256.57

10

ASM-SPINDLE RMK FORG LH ORANGE BURST [INCL. 12][COLOR OPT.]

1824649-647

$256.57

10

ASM-SPINDLE RMK FORG RH ORANGE BURST [INCL. 12][COLOR OPT.]

1824650-647

$256.57

10

ASM-SPINDLE RMK FORG LH LIFTLM [INCL. 12][COLOR OPT.]

1824649-801

$237.21

10

ASM-SPINDLE RMK FORG RH LIFTLM [INCL. 12][COLOR OPT.]

1824650-801

$237.21

10

ASM-SPINDLE RMK FORG LH VELBLU [INCL. 12][COLOR OPT.]

1824649-689

$237.21

10

ASM-SPINDLE RMK FORG RH VELBLU [INCL. 12][COLOR OPT.]

1824650-689

$237.21

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

BUSHING-SKI PIVOT

5438460

$15.99

13

BUSHING

5136910

$7.99

14

ASM-LOWER CONTROL ARM, NRW LH, NATURAL [INCL. 2-5, 15,17,18][COLOR OPT.]

1824652-309

$227.52

14

ASM-LOWER CONTROL ARM, NRW RH, NATURAL [INCL. 2-5, 15,17,18][COLOR OPT.]

1824653-309

$227.52

14

ASM-LOWER CONTROL ARM, NRW LH, BLK [INCL. 2-5, 15,17,18][COLOR OPT.]

1824652-067

$299.99

14

ASM-LOWER CONTROL ARM, NRW RH, BLK [INCL. 2-5, 15,17,18][COLOR OPT.]

1824653-067

$299.99

15

KIT-BEARING SPHERICAL LWR 10MM

2204229

$31.99

16

BOLT-M10X1.25X85MM,HXFLG,OLV D

7520152

$3.73

17

RING, RETAINING

7710539

$2.39

18

SHAFT-PIVOT LCA FRT GROOVED

5140557

$34.99

19

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$4.79

20

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99
