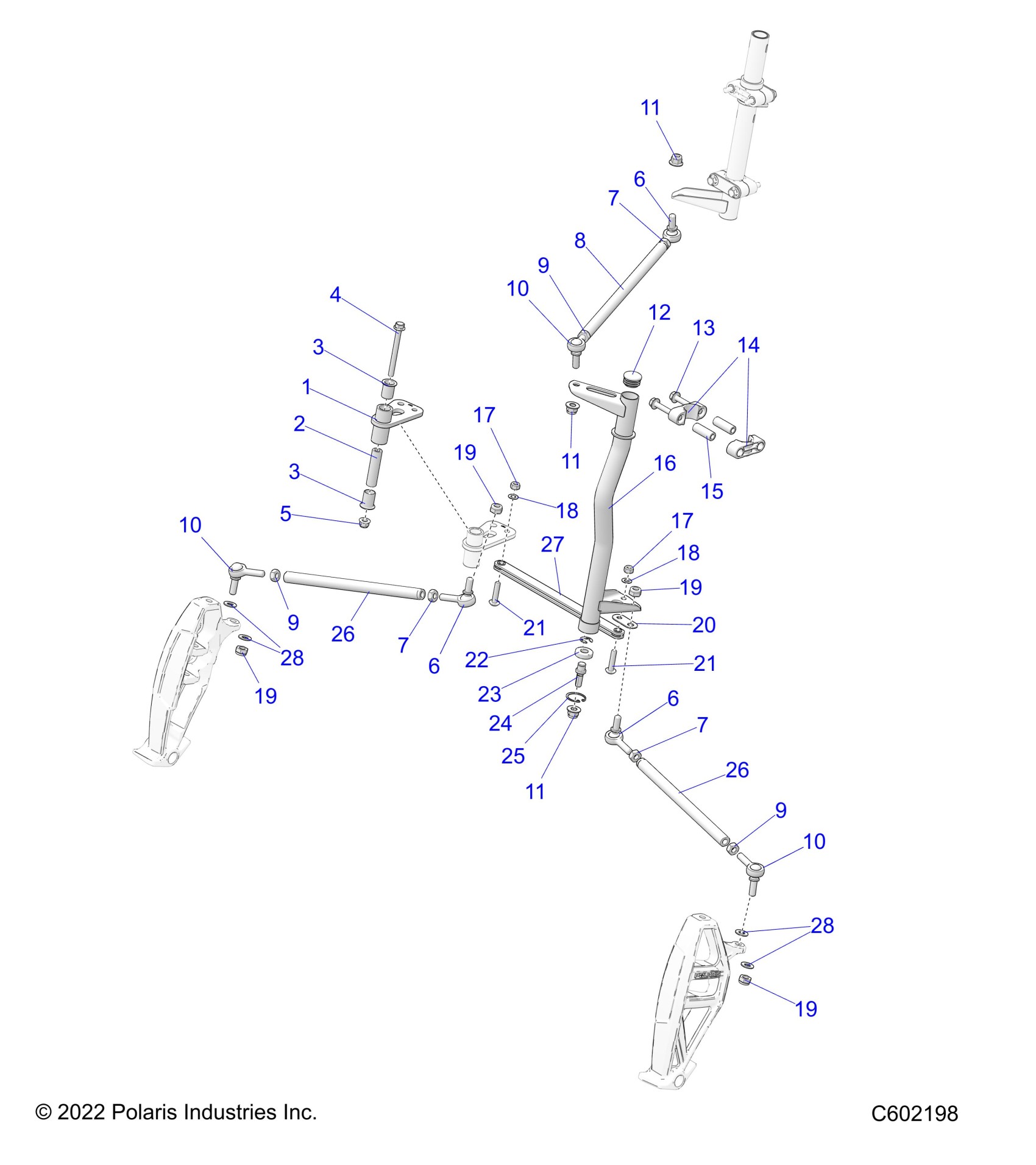

Polaris PATRIOT BOOST RMK KHAOS SLASH 165/163 ALL OPTIONS (R01) - S23TGG8MS/TGY8MS STEERING, LOWER - S23TGG8MS/TGY8MS (C602198) Diagram

#

Description
Price

1

ASM-IDLER [INCL.3]

1824547

$135.54

2

SHAFT-PIVOT IDLER

5138365

$24.27

3

BUSHING-SKI PIVOT

5438460

$15.99

3

BUSHING-SKI PIVOT

5438460

$15.99

4

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

5

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

6

ROD END-M10X23 75DEG LH

7061165

$52.60

6

ROD END-M10X23 75DEG LH

7061165

$52.60

6

ROD END-M10X23 75DEG LH

7061165

$52.60

7

NUT-M10X1.5 LH ZOD

7547431

$3.19

7

NUT-M10X1.5 LH ZOD

7547431

$3.19

7

NUT-M10X1.5 LH ZOD

7547431

$3.19

8

TIE ROD

5338122

$24.99

9

NUT-M10X1.5 ZOD

7547430

$3.17

9

NUT-M10X1.5 ZOD

7547430

$3.17

9

NUT-M10X1.5 ZOD

7547430

$3.17

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

11

NUT

7547423

$3.99

11

NUT

7547423

$3.99

11

NUT

7547423

$3.99

12

PLUG, TUBE

7081210

$3.99

13

SCREW

7519242

$4.79

14

BUSHING

5451227

$4.99

15

SPACER, BUSHING

5137796

$3.99

16

ASM., PITMAN ARM [INCL. 12,22-25]

1824669

$109.99

17

NUT

7547405

$1.49

17

NUT

7547405

$1.49

18

WASHER

7557059

$3.19

18

WASHER

7557059

$3.19

19

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

19

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

19

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

19

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

20

STRAP, PITMAN/IDLER

5261249

$11.99

21

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

21

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

22

RING, RETAINING, "E"

7710901

$7.19

23

BEARING

3514320

$15.99

24

STUD, SPACER

7519163

$39.99

25

RING-RET INT 1.125"

7710642

$2.39

26

TIE ROD

5340293

$32.37

26

TIE ROD

5340293

$32.37

27

ASM-RACK LINK

7061190

$71.99

28

Washer

7555806

$1.49

28

Washer

7555806

$1.49
