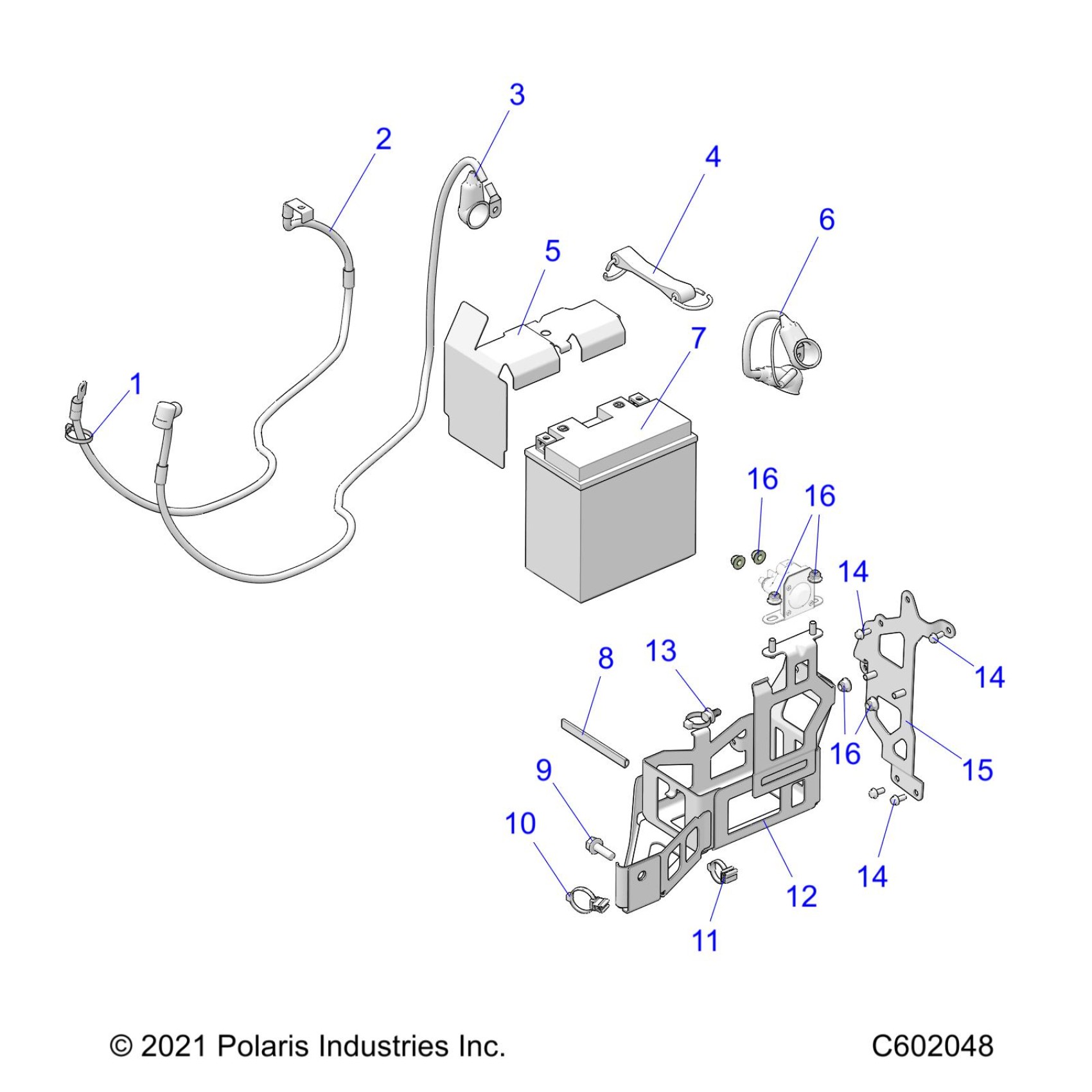

Polaris PATRIOT BOOST RMK KHAOS SLASH 165/163 ALL OPTIONS (R01) - S23TGG8MS/TGY8MS ELECTRICAL, E.S. BATTERY/BOX and CABLES - S23TGG8MS/TGY8MS E.S. OPTION (C602048) Diagram

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-910MM 4 GA BLACK

4080140

$84.99

CABLE-1085MM 4 GA RED [INCL. INSULATOR]

4080139

$79.99

INSULATOR-CABLE

5410346

$6.39

STRAP, RUBBER [DOES NOT INCL. D-HOOK]

5410608

$9.70

HOOK, 'D'

5224468

$9.59

SHIELD-HEAT BATTERY

5272181

$44.43

ASM-CABLE BATTERY/SOLENOID

2417145

$62.92

BOOT-BATT,RD,1.00X2.43"

4018229

$2.41

BATTERY [SVC]

4013045

$127.99

KIT, BATTERY BOLT [INCL. BOLTS,NUTS]

2202213

$3.79

SEAL-BULB, 350CM [BULK SVC]

5521697-350

$40.46

SCR-M8X1.25X25-HX/FL-Y/D

7516734

$3.19

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

WELD-BATTERY BOX

1026386

$95.22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCREW-HXFL-M5X0.8X12 4.8 ZPC NYL

7518894

$1.49

SCREW-HXFL-M5X0.8X12 4.8 ZPC NYL

7518894

$1.49

SCREW-HXFL-M5X0.8X12 4.8 ZPC NYL

7518894

$1.49

ASM-BATTERY BOX BRKT

1026879

$40.46

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49
