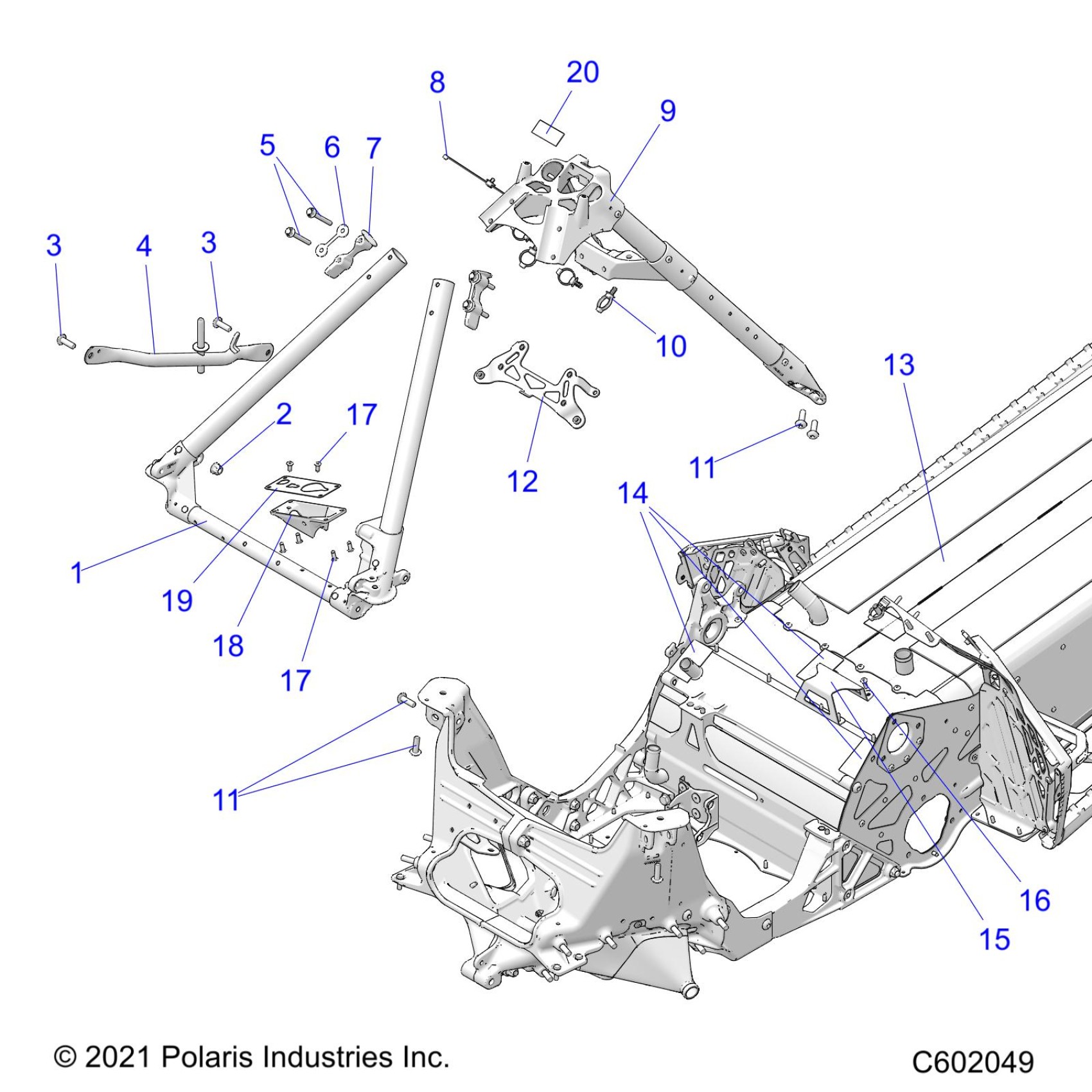

Polaris PATRIOT BOOST RMK KHAOS SLASH 165/163 ALL OPTIONS (R01) - S23TGG8MS/TGY8MS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S23TGG8MS/TGY8MS (C602049) Diagram

#

Description
Price

1

ASM-FRAME TUBE FRT RMK T ALUM

1026762

$234.75

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

4

WELD-CROSS BRACE BLK

1025902-067

$64.99

5

SCR-HXFL-M6X1.0X55 10.9 ZODP30

7520721

$3.99

6

SHIM, TUBE

5633083

$6.99

7

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

8

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

9

ASM-FRAME TUBULAR REAR RMK

1026175

$584.99

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

11

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

11

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

ASM-REGULATOR MOUNT RMK

1023231

$32.37

13

ASM-CHASSIS 850 165 NAT [NATURAL COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027501-309

$2,059.99

13

ASM-TUNNEL ONE PIECE 165P NAT [NATURAL COLOR OPTION]

1025926-309

$1,744.99

13

ASM-CHASSIS 850 165 BLK [BLACK COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027501-067

$2,059.99

13

ASM-TUNNEL ONE PIECE 165P GLBK [BLACK COLOR OPTION]

1025926-067

Unavailable

13

ASM-CHASSIS 850 165 INDYRED [RED COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027501-293

$2,059.99

13

ASM-TUNNEL ONE PIECE 165P IRED [RED COLOR OPTION]

1025926-293

$2,059.99

13

ASM-CHASSIS 850 165 ORG BURST [ORANGE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027501-647

$2,059.99

13

ASM-TUNNEL ONE PIECE 165P ORG [ORANGE COLOR OPTION]

1025926-647

$2,059.99

13

ASM-CHASSIS 850 165 VELBLUE [VELOCITY BLUE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027501-689

$2,309.99

13

ASM-TUNNEL ONE PIECE 165P VELBLUE [VELOCITY BLUE COLOR OPTION]

1025926-689

Unavailable

13

ASM-CHASSIS 850 165 LFTD LIME [LIFTED LIME COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]

1027501-801

$2,704.99

14

PAD

5814353

$9.70

15

BRKT-AIRBOX SUPPORT

5271212

$11.32

16

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

17

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

18

MOUNT-LOAD CENTER

5454789

$9.70

19

BRKT-LOAD CENTER

5265340

$4.84

20

PAD-51X22

5814828

$2.41
