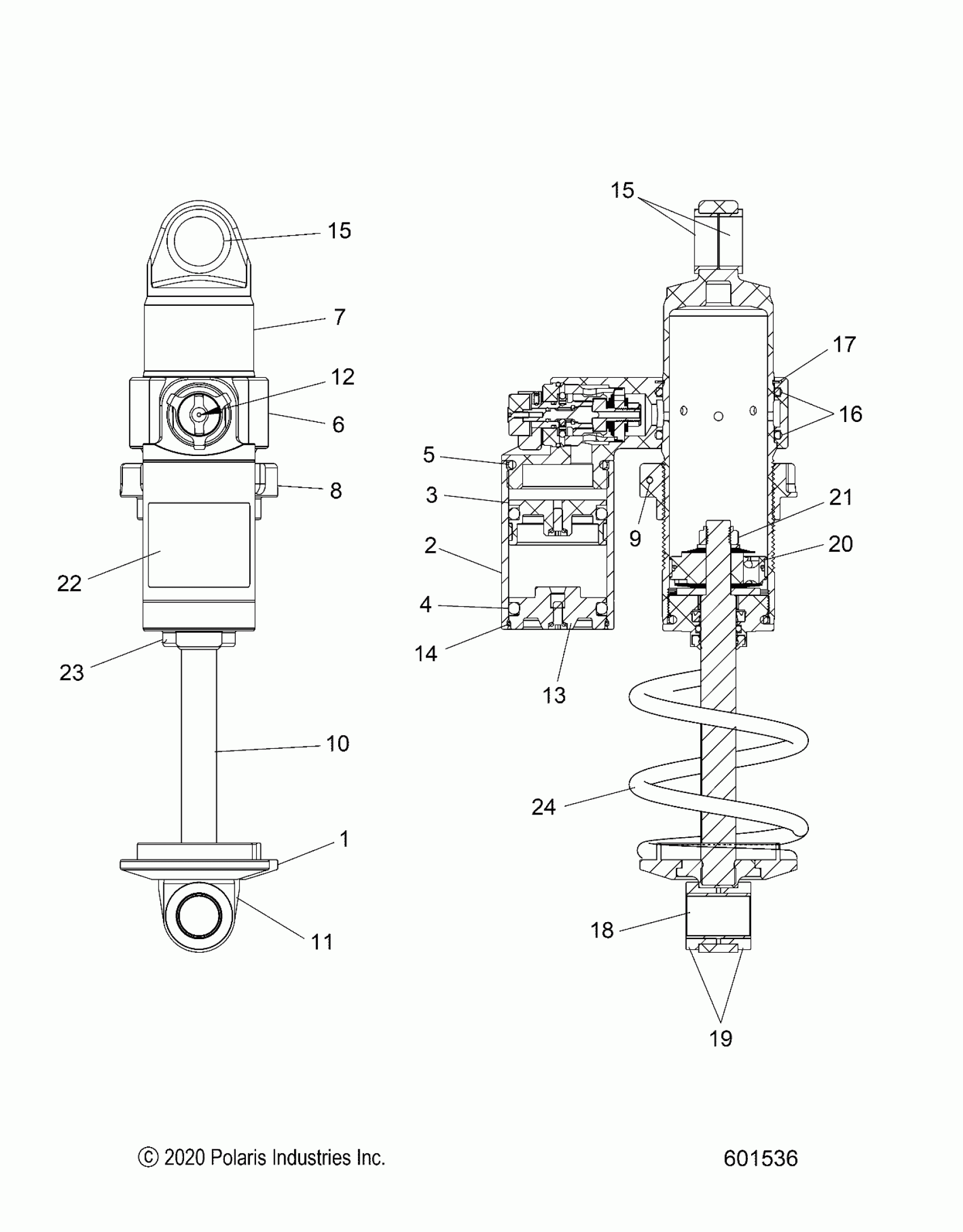

Polaris PATRIOT BOOST RMK KHAOS 165 ALL OPTIONS (R03) - S25TGG8MS SUSPENSION, SHOCK, FRONT TRACK - S25TGG8MS (601536) Diagram

#

Description
Price

-

SHOCK-FTS W/E VELOCITY [INCL. 1-23]

7045531

$663.84

1

RETAINER-CLIP SPRING,BLK

1800925

$39.99

2

BODY-RESERVOIR, 2"

1801070

$119.99

3

ASM-PISTON IFP

1800739

$44.99

4

O-RING 2-324

1800184

$5.65

5

O-RING BODY LOOP

1800030

$2.02

6

BRIDGE-2" HI-LO

1801071

$314.99

7

BODY-2" MIDMNT

1801072

$234.99

8

SPRING NUT- 2.0

1800936

$64.99

9

SCREW-M4

1801002

$3.99

10

SHAFT- .625DIA.

1801073

$154.99

11

SHAFT LOOP .625THD

1801074

$84.99

12

KNOB-LS, DOUBLE GRIP, BLK

1800735

$44.51

12

SCREW, SET #3-38 [Adjuster set screw]

1800736

$6.39

12

KNOB, HS, TRI GRIP RED

1800737

$77.44

12

SCREW, 4-40X.375SS [Adjuster screw]

1800738

$1.49

12

O-RING, 2.0X24.5MM [ADJUSTER SEAL]

1800680

$4.79

12

ADJUSTER-HS-LS [ADJUSTER ASSEMBLY]

1801059

$459.99

13

END CAP, RESERVOIR, 2"

1801006

$114.99

14

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

15

FLANGE BEARING

1800951

$24.27

15

FLANGE BEARING

1800951

$24.27

16

O-RING, 2-226 1600018

1800863

$4.79

17

RETAINING RING 2.0 EXT

1801075

$24.27

18

SLEEVE- 1.150L

1800405

$28.32

19

BUSHING

1800406

$5.65

20

ASM-PISTON 7045531

1801172

$224.99

21

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

22

DECAL [NOT AVAILABLE]

-------

Unavailable

23

ASM-SEAL HEAD, SHORT

1801173

$109.99

24

SPRING-COMP 75/150#X6.7 2" BLK

7045232-458

$145.22
