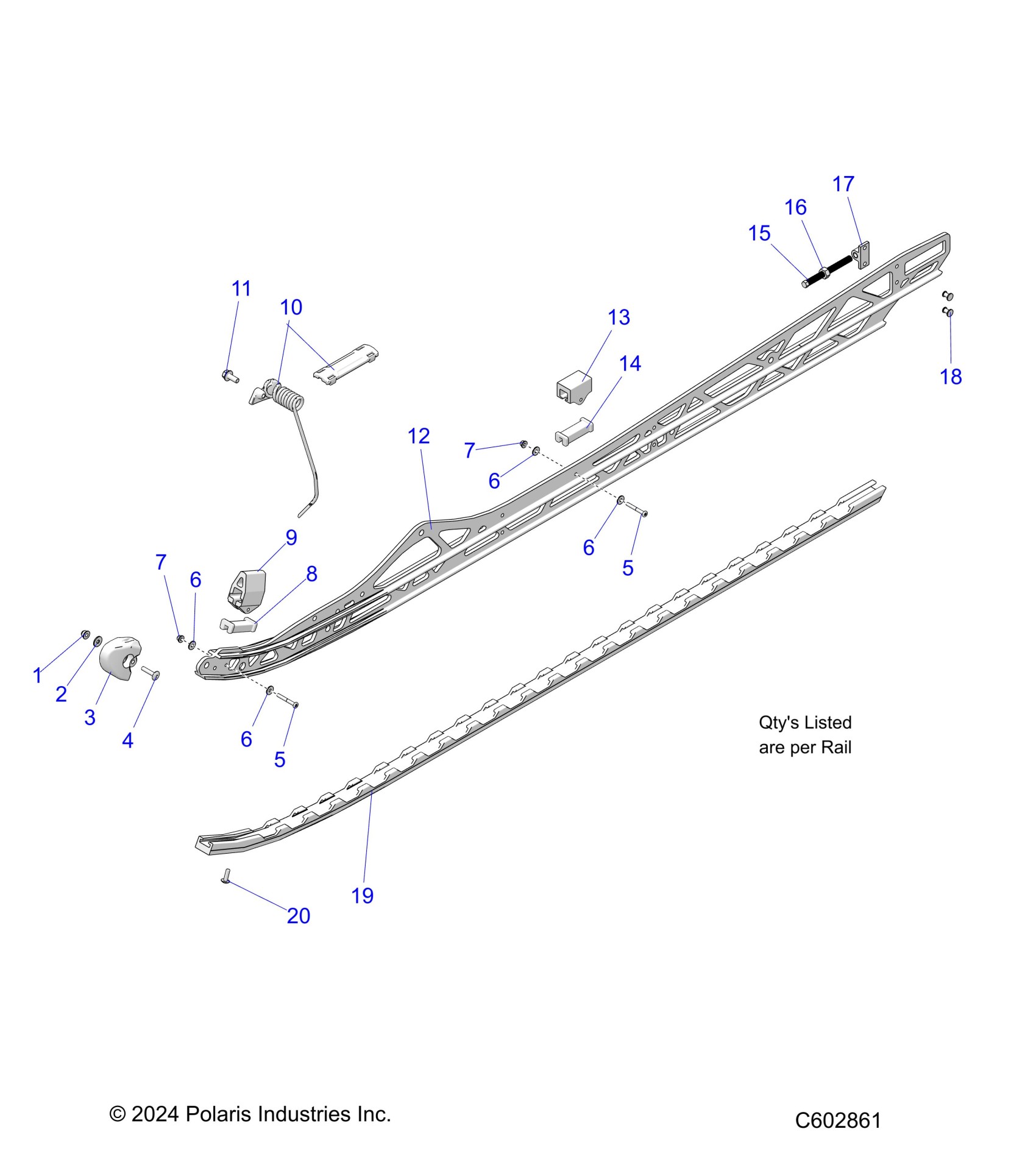

Polaris PATRIOT BOOST RMK KHAOS 165 ALL OPTIONS (R03) - S25TGG8MS SUSPENSION, RAIL BEAM MOUNTING, LH/RH, 165" - S25TGG8MS (C602861) Diagram

#

Description
Price

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

K-SVC, RMK RAIL CAP [INCL. 1-4, AND FRONT SHAFT SCREWS] [2 SETS PER KIT]

2212349

$35.19

4

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

5

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

5

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

6

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

6

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

6

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

6

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

7

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

7

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

8

LINER, BUMPER,LOW PROFILE

5451787

$6.99

9

BUMPER, HOLLOW, TALL

5415327

$19.99

10

K-SCRATCHER RMK [PAIR] INCL. SPRINGS, MOUNTS, SCREWS, AND CAPS

2890644

$109.99

11

SCREW-HXFL-M8X1.25X20 8.8 ZOD P3

7519133

$1.59

12

ASM-RAIL 165 SVC LH NAT [RAW COLOR OPTION][INCL. 17,18]

1545341-309

$544.99

12

ASM-RAIL 165 SVC RH NAT [RAW COLOR OPTION][INCL. 17,18]

1545342-309

$544.99

12

ASM-RAIL 165 SVC LH BLK [BLACK COLOR OPTION][INCL. 17,18]

1545341-067

$809.99

12

ASM-RAIL 165 SVC RH BLK [BLACK COLOR OPTION][INCL. 17,18]

1545342-067

$809.99

12

ASM-RAIL 165 SVC LH RED [RED COLOR OPTION][INCL. 17,18]

1545341-293

$809.99

12

ASM-RAIL 165 SVC RH RED [RED COLOR OPTION][INCL. 17,18]

1545342-293

$809.99

12

ASM-RAIL 165 SVC LH ORG [LIFTED LIME OPTION][INCL. 17,18]

1545341-647

$809.99

12

ASM-RAIL 165 SVC RH ORG [LIFTED LIME OPTION][INCL. 17,18]

1545342-647

$809.99

12

ASM-RAIL 165 SVC LH RAD GRN [RADIANT GREEN OPTION][INCL. 17,18]

1545341-887

$809.99

12

ASM-RAIL 165 SVC RH RAD GRN [RADIANT GREEN OPTION][INCL. 17,18]

1545342-887

$809.99

13

BUMPER, JOUNCE, REAR, COIL-OVER

5522056

$15.99

14

LINER-BUMPER

5432946

$9.70

15

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

16

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

17

BLOCK, IDLER BOLT ADJUSTABLE, METRIC

5139435

$15.99

18

RIVET

7621501

$2.39

19

HYFAX-165 BLK [1 PER BEAM]

5526593-070

$52.60

20

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
