Partiron

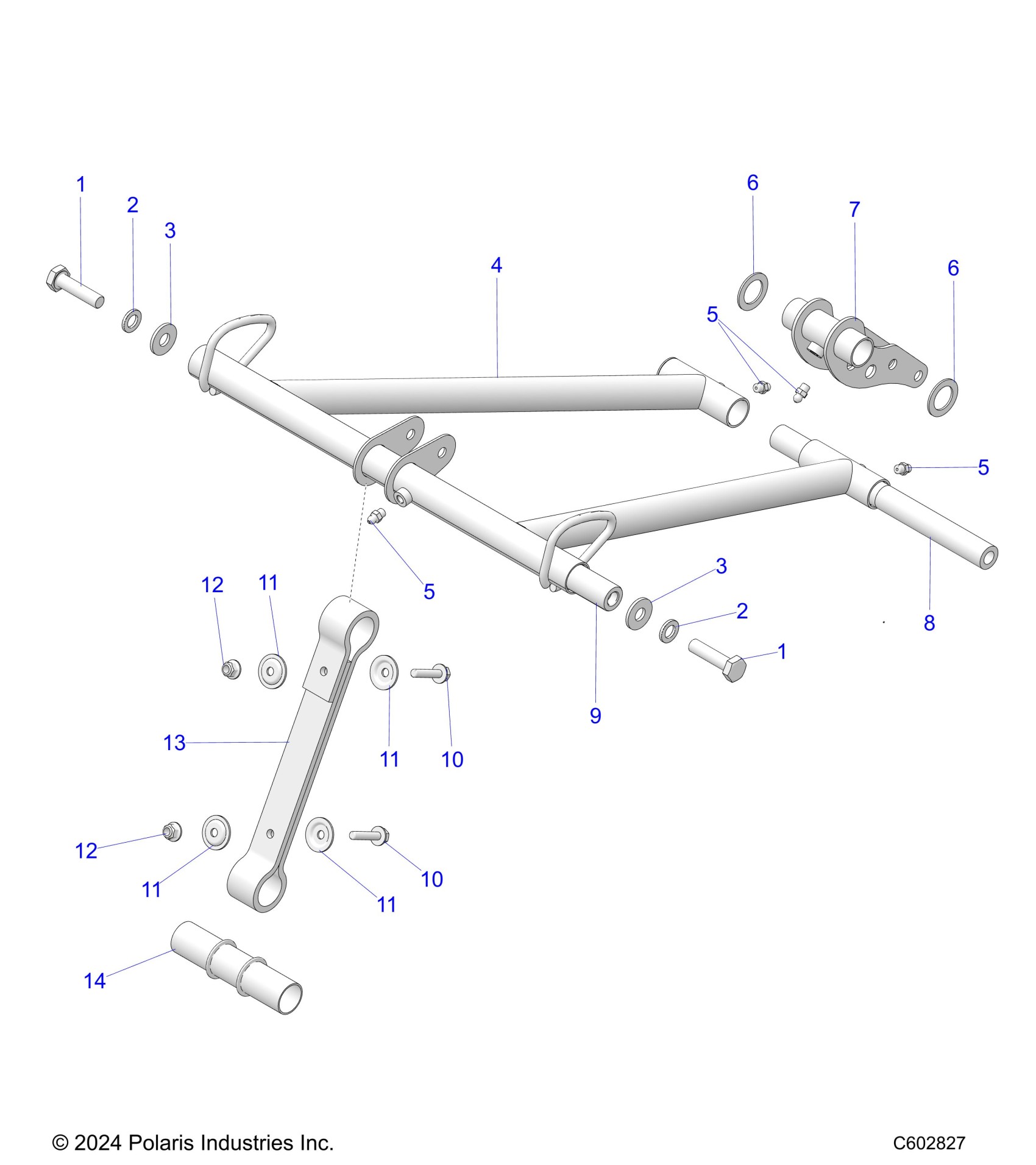

Polaris PATRIOT BOOST RMK KHAOS 165 ALL OPTIONS (R01) - S26TGG8MS SUSPENSION, TORQUE ARM, FRONT - S26TGG8MS (C602827) Diagram

#

Description
Price

1

SCR-HH,M10X40 10.9 ZPC P80

7519223

$3.99

1

SCR-HH,M10X40 10.9 ZPC P80

7519223

$3.99

2

WASHER, SPRING LOCK

7556558

$2.39

2

WASHER, SPRING LOCK

7556558

$2.39

3

WASHER

7556559

$3.19

3

WASHER

7556559

$3.19

4

WELD-FTA RMK CNTR LIMITER BLK

1545093-329

$226.65

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

WASHER

7556581

$3.99

6

WASHER

7556581

$3.99

7

ARM, SHOCK PIVOT

1542765-329

$62.92

8

SHAFT, CROSS

5137418

$32.37

9

SHAFT-20.32 X 391.41 HOLLOW

5138059

$60.70

10

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

10

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

11

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

11

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

11

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

11

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

12

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

12

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

13

STRAP-LIMITER KHS LWT

5418339

$28.32

14

BUSHING-STRAP LIMITER CENTER

5418561

$4.79
