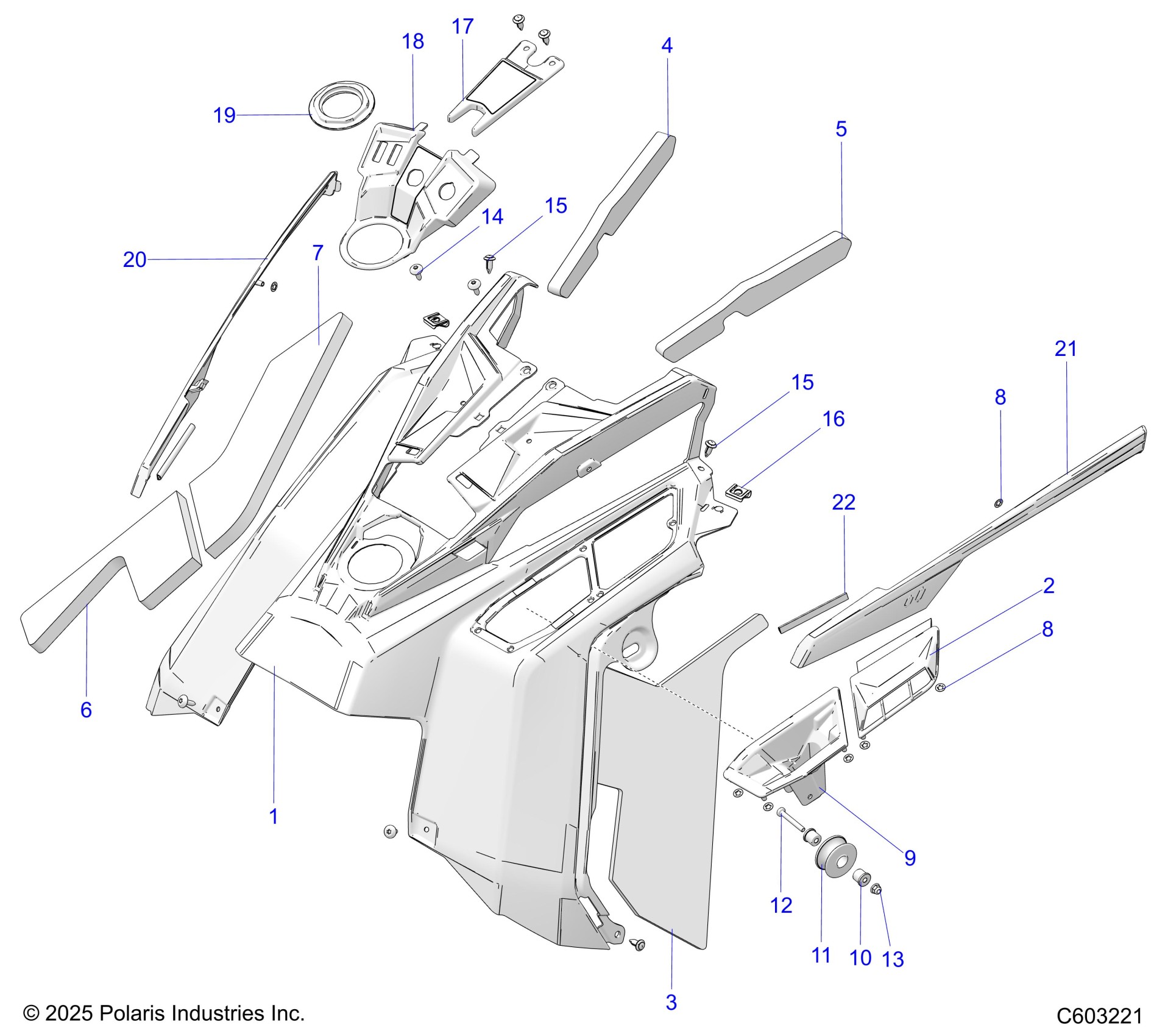

Polaris PATRIOT BOOST RMK KHAOS 165 ALL OPTIONS (R01) - S26TGG8MS BODY, CONSOLE - S26TGG8MS (C603221) Diagram

#

Description
Price

1

ASM-CONSOLE [INCLUDES 1-8 & WARNING DECAL]

2640260

$151.99

1

CONSOLE-PROG BLK [CONSOLE ONLY]

5456591

Unavailable

2

VENT-CONSOLE

5457168

$20.22

3

FOAM-CONSOLE RH

5815170

$20.22

4

FOAM-CONSOLE LH UPPER

5815171

$4.84

5

FOAM-CONSOLE RH UPPER

5815172

$5.65

6

FOAM-CONSOLE LOWER LH

5815235

$9.70

7

FOAM-CONSOLE UPPER LH

5815236

$20.22

8

RETAINER-BOLT,1/4-20

7670154

$1.49

8

RETAINER-BOLT,1/4-20

7670154

$1.49

9

ASM-POCKET RECOIL

2640259

$23.99

10

BUSHING-ROLLER M6

5143683

$3.19

11

ROLLER, RECOIL

5435390

$16.44

12

SCR-TXPH-M6X1.0X45 8.8 ZBLK

7520466

$5.59

13

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

14

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

15

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

15

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

16

CLIP-1/4 TURN 6MM

7710808

$5.99

17

CLOSEOFF-CONSOLE

5458024

$5.65

18

PANEL-CONSOLE SWITCH

5457421

$24.27

19

Nut, Filler Neck

5435156

$4.79

20

TRIM-CONSOLE LH IN-MLD HEMLOCK [HEMLOCK]

5456441-978

$27.99

20

TRIM-CONSOLE LH IN-MLD CRSRBLK [BLACK]

5456441-266

$36.41

20

TRIM-CONSOLE LH IN-MLD INDYRED [INDY RED]

5456441-293

$32.37

21

TRIM-CONSOLE RH IN-MLD HEMLOCK [HEMLOCK]

5456442-978

$27.99

21

TRIM-CONSOLE RH IN-MLD CRSRBLK [BLACK]

5456442-266

$36.41

21

TRIM-CONSOLE RH IN-MLD INDYRED [INDY RED]

5456442-293

$32.37

22

SEAL-BULB, .375, 350CM [SERVICE LENGTH]

5521697-350

$40.46
