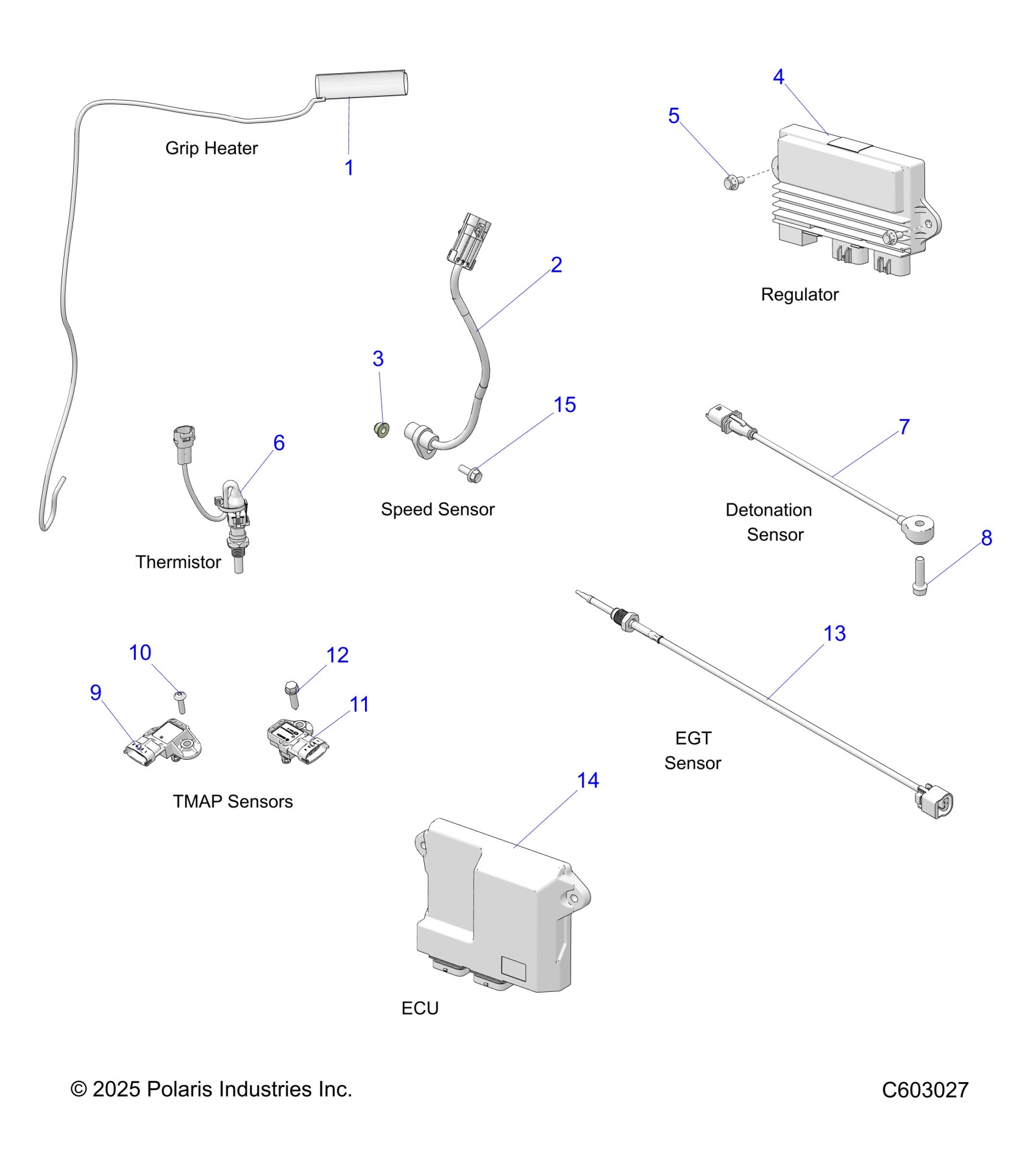

Polaris PATRIOT BOOST RMK KHAOS 155 LE ALL OPTIONS (R01) - S26TFG8MSB/8MSC ELECTRICAL, COMPONENTS - S26TFG8MSB/8MSC (C603027) Diagram

#

Description

Price

1

HEATER-GRIP LO/HI ALUM

2416055

$44.51

2

SENSOR-SPEED PICKUP

4080773

$87.99

3

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

REGULATOR-UNPROGRAMMED PBR ICE

4017985

$619.99

5

SCREW-HXFLGHD,M6X12

7517886

$1.59

6

ASM-THERMISTER/JUMPER

2415756

$87.99

7

SENSOR-DETONATION BOSCH

2410369

$76.89

8

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.59

9

SENSOR-TMAP DSS3-TF INTAKE TUBE LOCATION

2411528

$93.08

10

SCREW-PLASTITE,5.0MMX20-PN-T25 INTAKE TUBE LOCATION

7519952

$3.99

11

SENSOR-2.5 BAR-T-MAP BOOST BOX LOCATION

2416168

$89.03

12

SCR-#14X1.0 LG,HI/LO/TAPER-M BOOST BOX LOCATION

7512098

$1.59

13

SENSOR-EGT,SNO

4080929

$259.99

14

ECU-BASE,KOK,840T,MY22 DEALER INSTALL REQUIRED

4019295

$924.99

15

SCR-TXPH-M6X1.0X25 8.8 ZOD

7519993

$1.49
