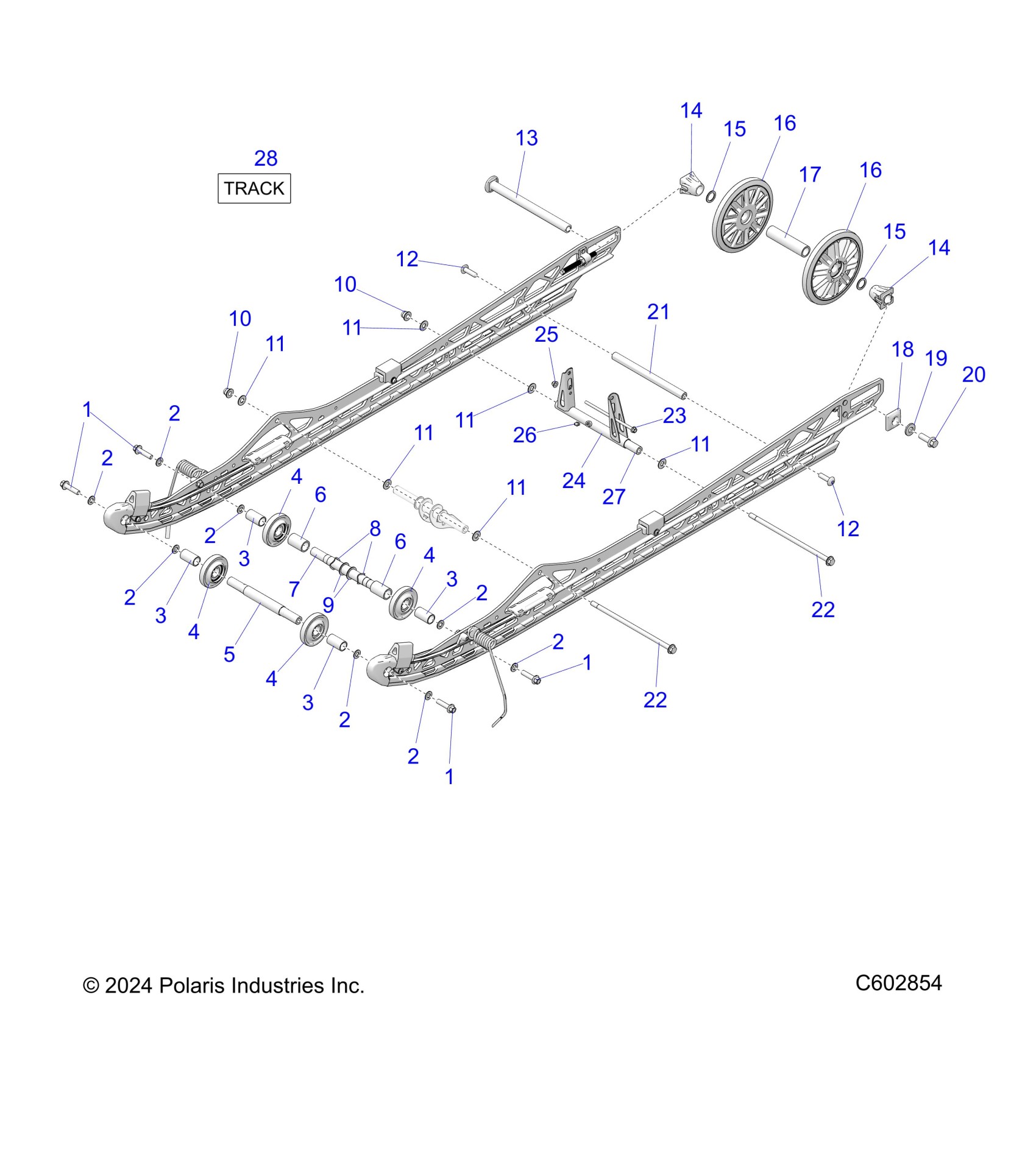

Polaris PATRIOT BOOST RMK KHAOS 155 ALL OPTIONS (R01) - S26TFG8MS SUSPENSION, REAR, 155" - S26TFG8MS (C602854) Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

1

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

2

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

SPACER, OUTSIDE

5454202

$3.19

3

SPACER, OUTSIDE

5454202

$3.19

3

SPACER, OUTSIDE

5454202

$3.19

3

SPACER, OUTSIDE

5454202

$3.19

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

4

ASM-WHL,BOGIE,LWT,3.06,20MM

1597873

$48.56

5

SHAFT-ANTI STAB

5144946

$49.99

5

BUSHING-STRAP LIMITER CENTER SEE SUSPENSION, TORQUE ARM, FRONT

-------

Unavailable

6

SPACER, INSIDE

5454201

$3.19

6

SPACER, INSIDE

5454201

$3.19

7

ASM-CROSS SHAFT FTS

1543897

$79.99

8

WASHER-WAVE 7/8X1X.010

7555735

$3.99

9

WASHER-30MM ODX 21MM ID X 1.5

7556483

$3.99

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

11

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

12

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

12

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

13

SHAFT, IDLER, REAR

5139411

$129.99

14

SPACER-IDLER

5432535

$11.99

14

SPACER-IDLER

5432535

$11.99

15

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

15

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

16

BEARING [1 PER WHEEL]

3514384

$19.84

16

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

16

ASM-WHEEL,SPOKE,7.25,6004 [INCL. BRG. AND RET. RING]

1590459

$47.99

16

BEARING [1 PER WHEEL]

3514384

$19.84

16

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

16

ASM-WHEEL,SPOKE,7.25,6004 [INCL. BRG. AND RET. RING]

1590459

$47.99

17

SPACER, IDLER, CENTER, LWT

5338618

$9.99

18

SPACER-IDLER

5436496

$6.39

19

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

20

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

21

SHAFT-CROSS

5139172

$29.03

22

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

22

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

23

SCR-HXFL M6X1.0X150 8.8 ZOD

7519201

$19.99

24

ARM, REAR PIVOT ARM, BLK

1544229-329

$52.60

25

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

SHAFT-CROSS, RMK

5137418

$32.37

28

TRACK-155X2.75X3.5P, WW 2.75"

5418047

$1,547.99

28

TRACK-155X3.25X3.5P SERIES 9 3.25"

5418540

$1,749.99

28

CLIP-GUIDE 012-0116

5274790

Unavailable

28

CLIP-FLAT 012-0117

5274791

Unavailable
