- PATRIOT BOOST INDY VR1 DYNAMIX 137 ALL OPTIONS (R01) - S26TDZ8MS
SUSPENSION, CONTROL ARMS and SPINDLE - S26TDZ8MS (C602858)

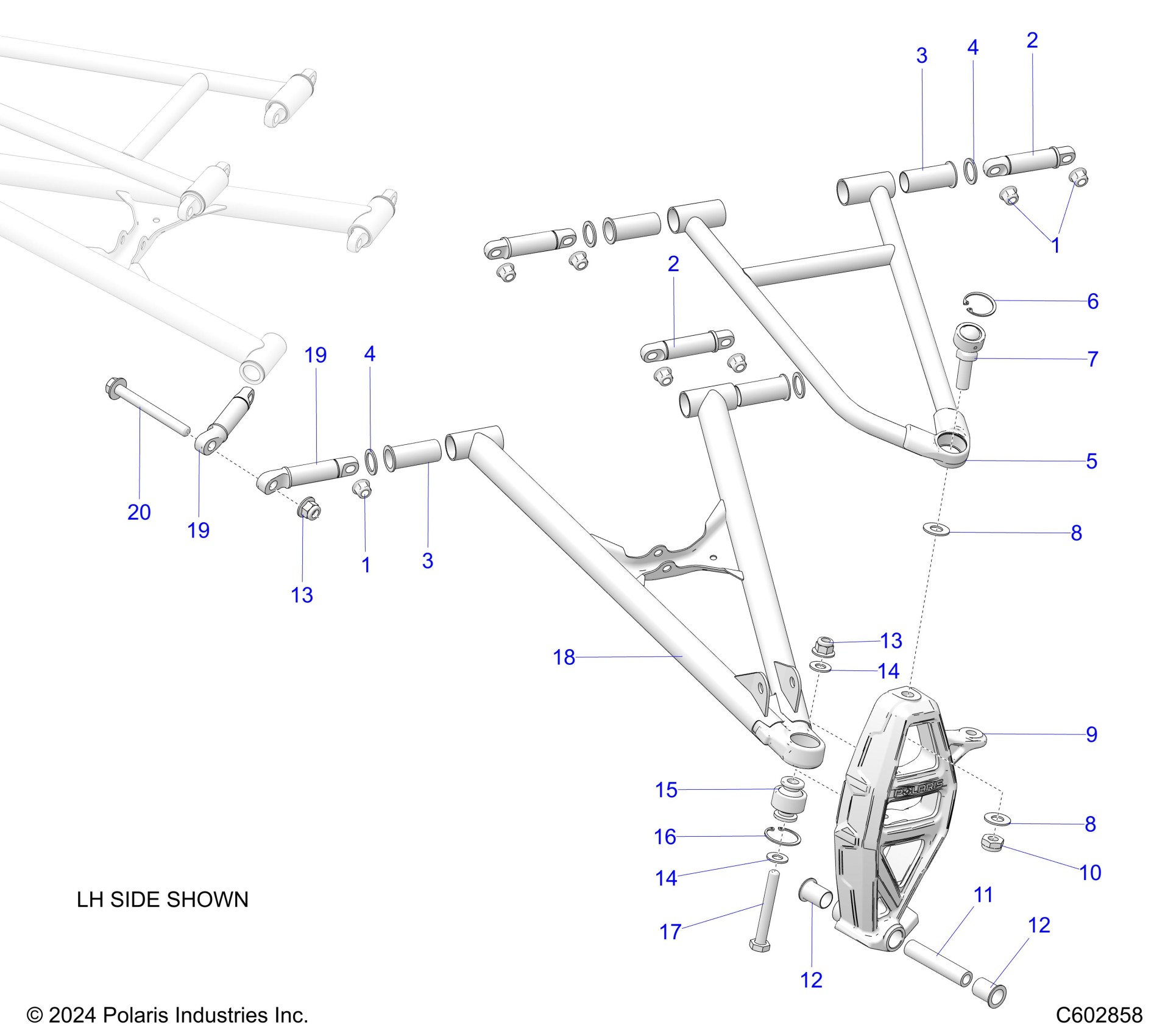

Polaris PATRIOT BOOST INDY VR1 DYNAMIX 137 ALL OPTIONS (R01) - S26TDZ8MS SUSPENSION, CONTROL ARMS and SPINDLE - S26TDZ8MS (C602858) Diagram
#
Description
Price
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
3
BUSHING-PIVOT
5450297
$3.19
3
BUSHING-PIVOT
5450297
$3.19
4
WSHR-18.2X25.X1.6 THICK ZOD
7556758
$3.19
4
WSHR-18.2X25.X1.6 THICK ZOD
7556758
$3.19
5
ASM-UCA MOLY LH BLK [INCLUDES 2-4 & 6-7]
1824756-067
$239.99
5
ASM-UCA MOLY RH BLK [INCLUDES 2-4 & 6-7]
1824757-067
$239.99
5
WELD-UCA MOLY LH BLK [UCA ONLY]
1824171-067
Unavailable
5
WELD-UCA MOLY RH BLK [UCA ONLY]
1824172-067
$189.99
6
RING-RET INT 1.125"
7710642
$2.39
7
BEARING-SPHERICAL UCA 31MM
7061179
$33.32
8
WASHER-M12X25X1.6 THRU HARD ZOD
7556994
$3.19
8
WASHER-M12X25X1.6 THRU HARD ZOD
7556994
$3.19
9
ASM-SPINDLE LH BLK [INCLUDES 12] [BLACK]
1824939-067
$314.99
9
ASM-SPINDLE RH BLK [INCLUDES 12] [BLACK]
1824940-067
$314.99
9
ASM-SPINDLE LH INDY RED [INCLUDES 12] [INDY RED]
1824939-293
$264.99
9
ASM-SPINDLE RH INDY RED [INCLUDES 12] [INDY RED]
1824940-293
$264.99
9
ASM-SPINDLE LH VELOCITY BLUE [INCLUDES 12] [VELOCITY BLUE]
1824939-689
$254.99
9
ASM-SPINDLE RH VELOCITY BLUE [INCLUDES 12] [VELOCITY BLUE]
1824940-689
$254.99
9
ASM-SPINDLE LH LIFTED LIME [INCLUDES 12] [LIFTED LIME]
1824939-801
$254.99
9
ASM-SPINDLE RH LIFTED LIME [INCLUDES 12] [LIFTED LIME]
1824940-801
$254.99
10
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$3.19
11
BUSHING
5136910
$7.99
12
BUSHING-SKI PIVOT
5438460
$15.99
12
BUSHING-SKI PIVOT
5438460
$15.99
13
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
14
WSHR-FL .406X.812X.065-Y
7555806
$1.49
14
WSHR-FL .406X.812X.065-Y
7555806
$1.49
15
KIT-BEARING SPHERICAL LWR 10MM
2204229
$31.99
16
RING, RETAINING
7710539
$2.39
17
SCR-M10X1.5X75 10.9 HCS ZOD
7519015
$5.59
18
ASM-LCA LH BLK [INCLUDES 2-4, 15, 16 & 19]
1824758-067
$239.99
18
ASM-LCA RH BLK [INCLUDES 2-4, 15, 16 & 19]
1824759-067
$239.99
18
WELD-LCA LH BLK [LCA ONLY]
1824169-067
Unavailable
18
WELD-LCA RH BLK [LCA ONLY]
1824170-067
$189.99
19
SHAFT-PIVOT LCA FRT GROOVED
5140557
$34.99
19
SHAFT-PIVOT LCA FRT GROOVED
5140557
$34.99
20
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$4.79
