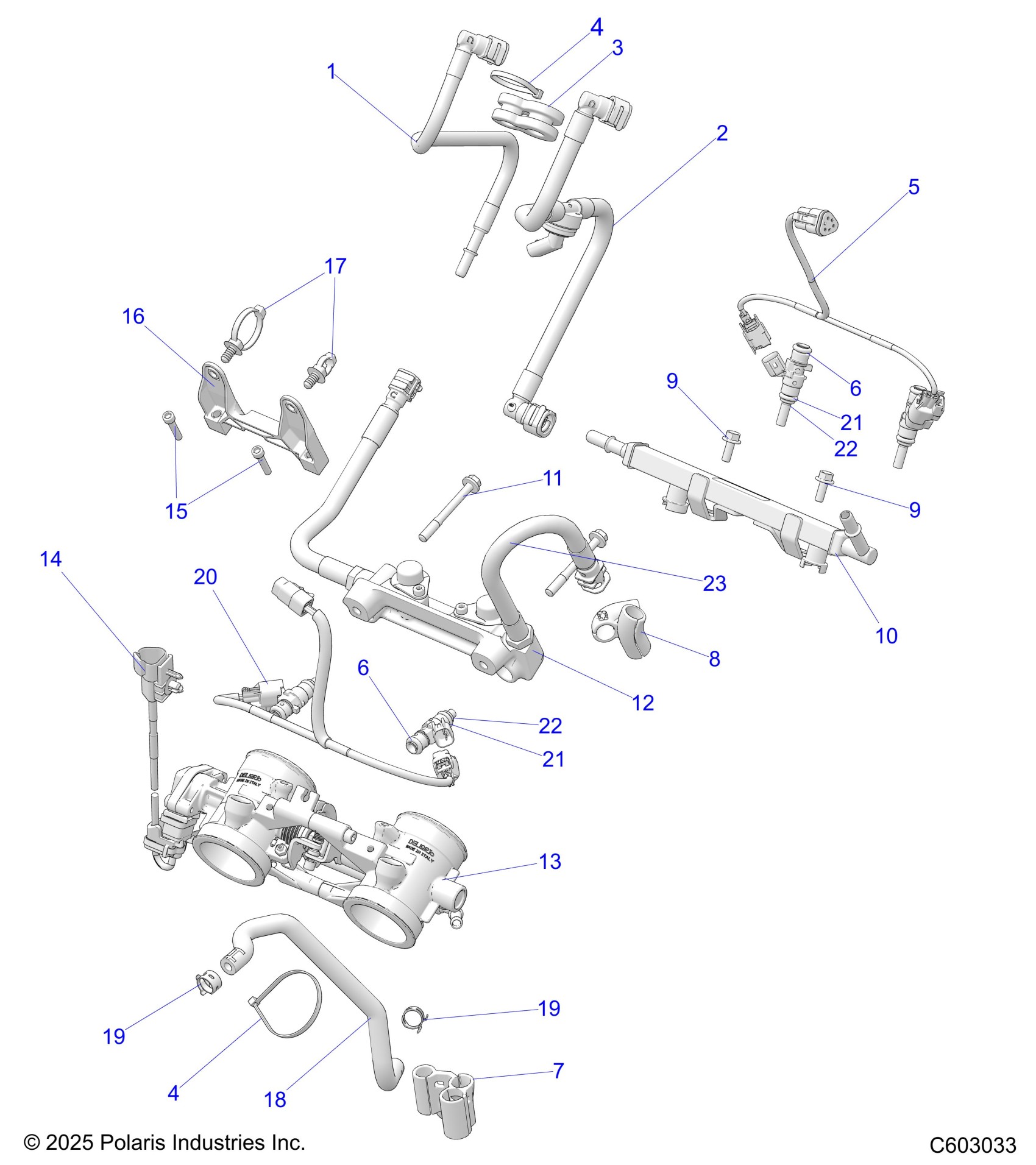

Polaris PATRIOT BOOST INDY VR1 DYNAMIX 137 ALL OPTIONS (R01) - S26TDZ8MS FUEL SYSTEM, RAIL, LINES and THROTTLE BODY - S26TDZ8MS (C602870) Diagram

ASM-FUEL LINE SUPPLY PFA

2522387

$64.75

ASM-FUEL LINE RETRN PFA W/SNSR

2522388

$219.99

HOSE-SUPPORT

5418043

$5.65

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

HARNESS-TB INJ, W/LEAD, CE, 840T [DEALER INSTALL REQUIRED]

4081945

$309.99

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

SUPPORT-OIL LINE

5418881

$10.51

SUPPORT-FUEL LINE

5418963

$12.94

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

ASM-TB FUEL RAIL,840T

2522340

$219.99

SCR-M7X1.00X63,HX/SOC/SEMS10.9

7520849

$4.79

ASM-CYL FUEL RAIL,840T,W/DAMP

2522824

$469.99

ASM-THROTTLE BODY,48MM 840T

1209157

$405.59

SENSOR, THROTTLE POSITION

-------

Unavailable

SCREW-SH-M5X0.8X25 A2 SPC

7518086

$5.59

RETAINER-INJECTOR HARNESS

5458242

$35.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

HOSE-TB,HEATER

5418878

$24.27

CLAMP, HOSE, 14.0/10

7082198

$2.39

CLAMP, HOSE, 14.0/10

7082198

$2.39

HARNESS-CYL INJ W/LEAD,840T [DEALER INSTALL REQUIRED]

4082752

$374.99

O-RING, BOSCH, E10076

5412891

$1.49

O-RING, BOSCH, E10076

5412891

$1.49

BUSHING-RUBBER, INJ ELASTOMER

5436287

$3.19

BUSHING-RUBBER, INJ ELASTOMER

5436287

$3.19

K-FUEL LINE RPLC,RETURN

2212894

$83.59
